• Tighten the cover screws, see Fig. 7.33.

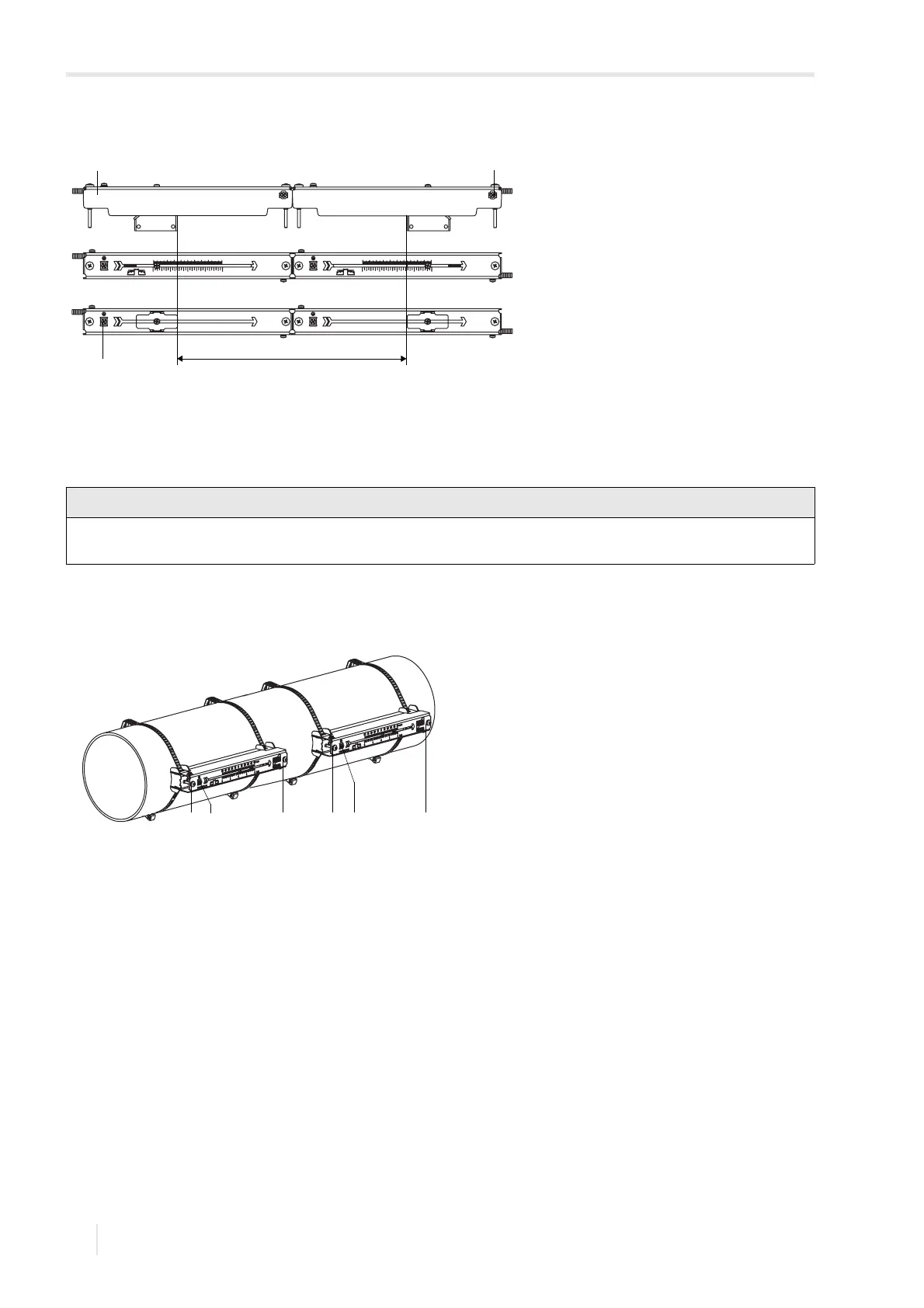

Fig. 7.32: Adjustment of the transducer distance
1–cover
2 – strain relief clamp
3 – equipotential bonding terminal
a – transducer distance
Notice!
Make sure that the coupling foil remains on the contact surface of the transducers. For information concerning the
coupling foil, see the safety data sheet.
Fig. 7.33: Variofix L with transducers on the pipe
1 – equipotential bonding terminal
2 – cover screws
1
2
a
3
2
22
2
1
1
