Step 2: Fixation of the clasps to the tension straps
• Select the installation instruction of the supplied clasp:
Band clamp clasp
The clasp is fixed to the tension strap (see Fig. 7.38).
Quick release clasp
The clasp is fixed to the tension strap (see Fig. 7.39).
• Cut the tension strap to length (pipe circumference + at least 120 mm).

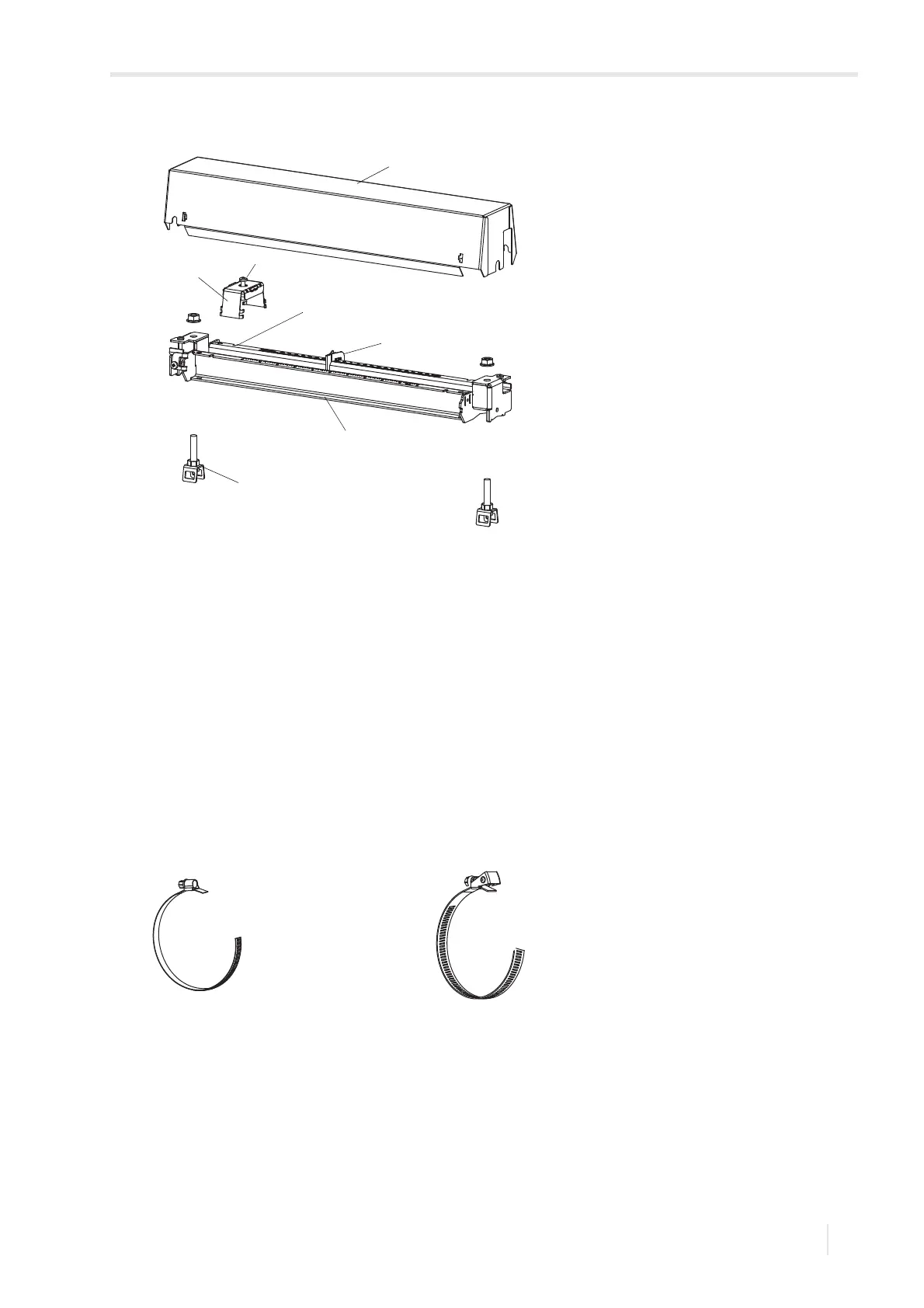

Fig. 7.37: Disassembly of the transducer mounting fixture Variofix C
1–cover
2 – tensioning screw
3 – spring clip
4 – indentation
5 – spacing element
6–rail
7 – tension strap clamp
Fig. 7.38: Band clamp clasp with tension strap Fig. 7.39: Quick release clasp with tension
strap
1
2
3
4
5
6
7
