Flexim PIOX S72 Series User Manual

7 Mounting
PIOX S72* 7.2 Transducers
53
UMPIOX_S72xV1-9EN, 2022-05-15
• Select the installation instruction of the supplied clasp:
Band clamp clasp
• Insert the tension strap into the tension strap clamp (2).
• Place the tension strap around the pipe and insert it into the clasp (see Fig. 7.49 and Fig. 7.50).
• Tighten the tension strap.
• Tighten the clasp screw.
• Tighten the nut of tension strap clamp (2), but not too firmly in order not to damage the tension strap. The rail has to be
firmly fixed to the pipe.
Quick release clasp
• Insert the tension strap into its clamp (2) and the metal spring.
• Place the tension strap around the pipe and insert it into the clasp (see Fig. 7.49 and Fig. 7.51).
• Position the metal spring opposite the tension strap clamp (2).
• Tighten the tension strap.
• Tighten the clasp screw.
• Tighten the nut of tension strap clamp (2), but not too firmly in order not to damage the tension strap.

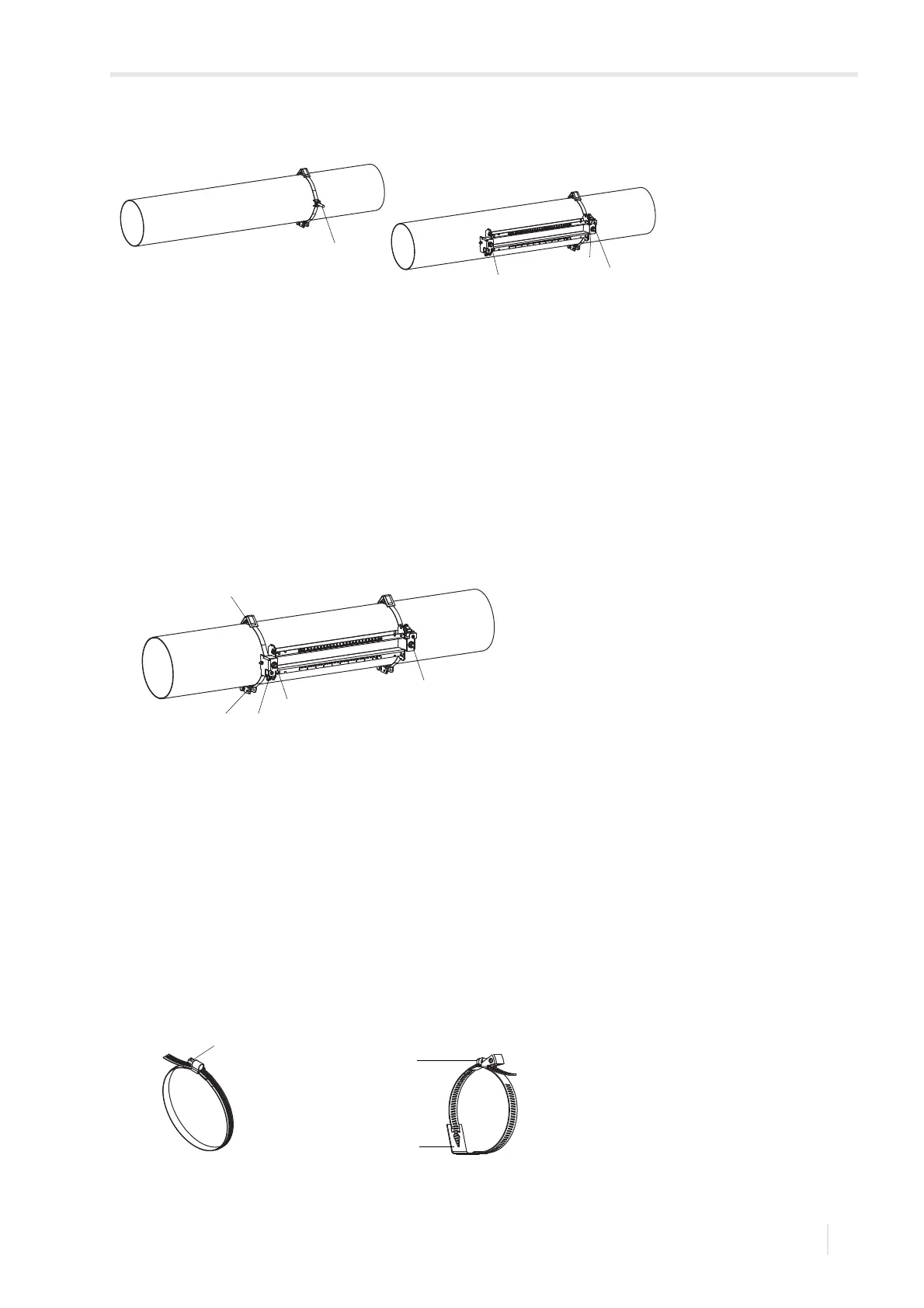

Fig. 7.48: Rail, fixed on one side to the pipe
1 – tension strap clamp
2 – tension strap clamp
3 – nut
Fig. 7.49: Rail on the pipe
1 – tension strap clamp
2 – tension strap clamp
3–metal spring
4 – nut
5–clasp
Fig. 7.50: Tension strap with band clamp
clasp
Fig. 7.51: Tension strap with quick release
clasp and metal spring
1 – clasp screw 1 – clasp screw
2–metal spring
2
1
3
1
3
4
2
5
1
1
2
1
