Flexim PIOX S72 Series User Manual

8 Connection
PIOX S72* 8.1 Transducers
79
UMPIOX_S72xV1-9EN, 2022-05-15
8.1.5 SENSPROM
The SENSPROM contains important transducer data for the operation of the transmitter with the transducers.
If transducers are replaced or added, the SENSPROM has to be replaced or added as well.
The SENSPROM is connected to the terminals of the transmitter.
• Disconnect the transmitter from the power supply.
• Connect the SENSPROM to the corresponding terminal.
• Connect the transmitter to the power supply.
• Enter all parameters of the program branch Parameters.
• Start the measurement.
Notice!
The serial numbers of the SENSPROM and the transducer have to be identical. A wrong or wrongly connected
SENSPROM will lead to incorrect measured values or to a measurement failure.

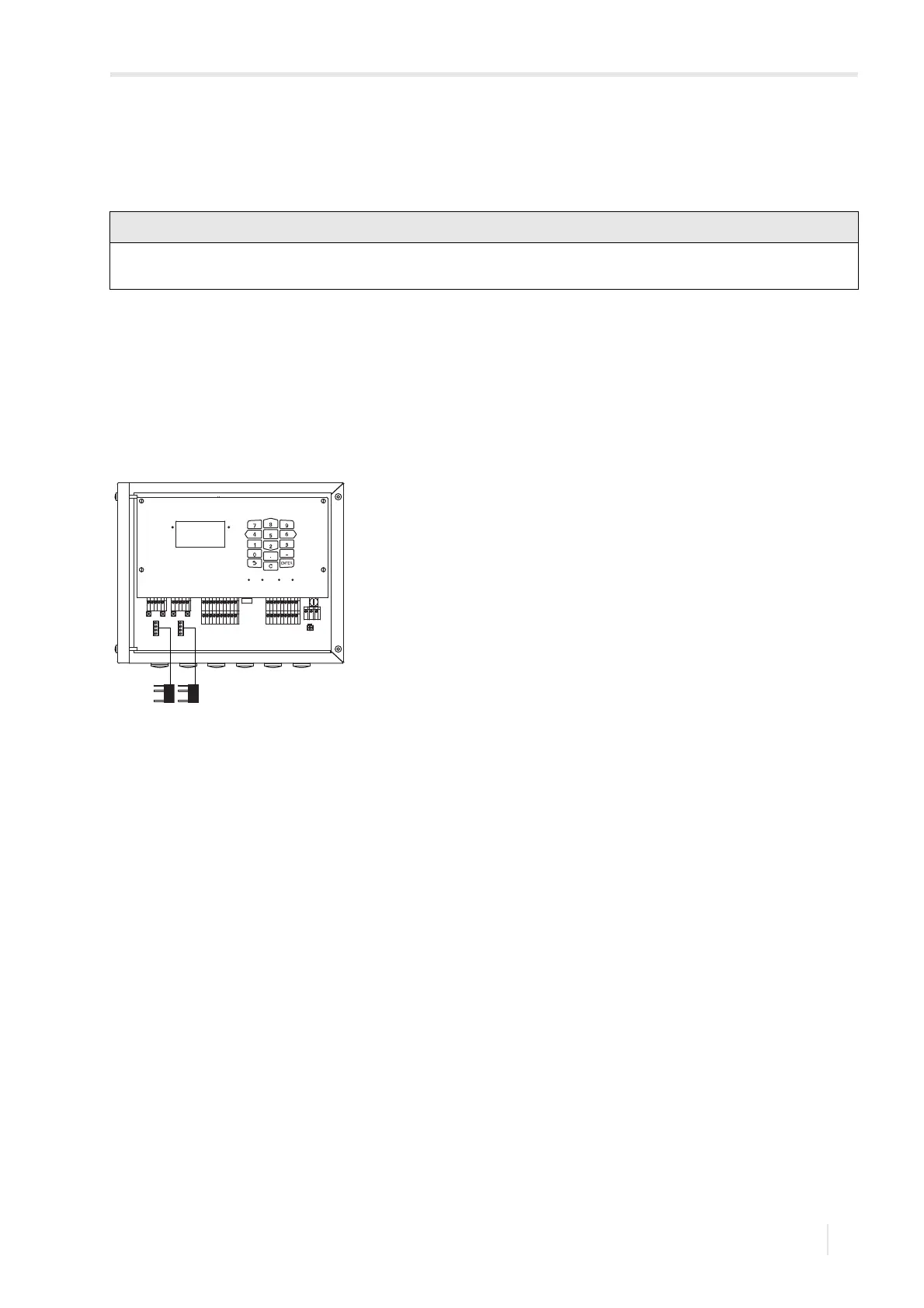

Fig. 8.11: SENSPROM
1 – SENSPROM A
2 – SENSPROM B
A
B
SNAP
DISP
DISP
MODEFAST
MUX
NEXT
Q
ON
Q+Q-
3x Q
OFF
LAN
USB
A+ B- P1+ P2+ P3+ P4+
P5a
P6a P7a
S S P1- P2- P3- P4-
P5b
P6b P7b
X2 X3
X_AV
KL11 KL12 KL7KL8 KL9KL10
KL4
X_AR X_BV X_BR
T1A T1B S1 T2A T2B T3A T3B S3 T4B T4A
T1a T1b S1 T2a T2b T3a T3b S3 T4b T4a
N(-)
PE
L(+)
AV AVS AGN ARS AR BV BVS BGN BRS BR
1 2
