8 Connection
8.6 Service interfaces PIOX S72*
2022-05-15, UMPIOX_S72xV1-9EN
94
• Push the cable through the cap nut, compression part and basic part of the cable gland.
• Insert the cable into the housing of the transmitter.
• Prepare the cable (see the documentation provided by the manufacturer).
• Install the connector (see the documentation provided by the manufacturer).
• Insert the connector into the LAN interface.
• Fix the foldable ferrite core to the cable.
• Position the cable in the housing as shown in Fig. 8.26.
• Screw the sealing ring side of the basic part into the transmitter housing.
• Fix the cable gland by screwing the cap nut onto the basic part.

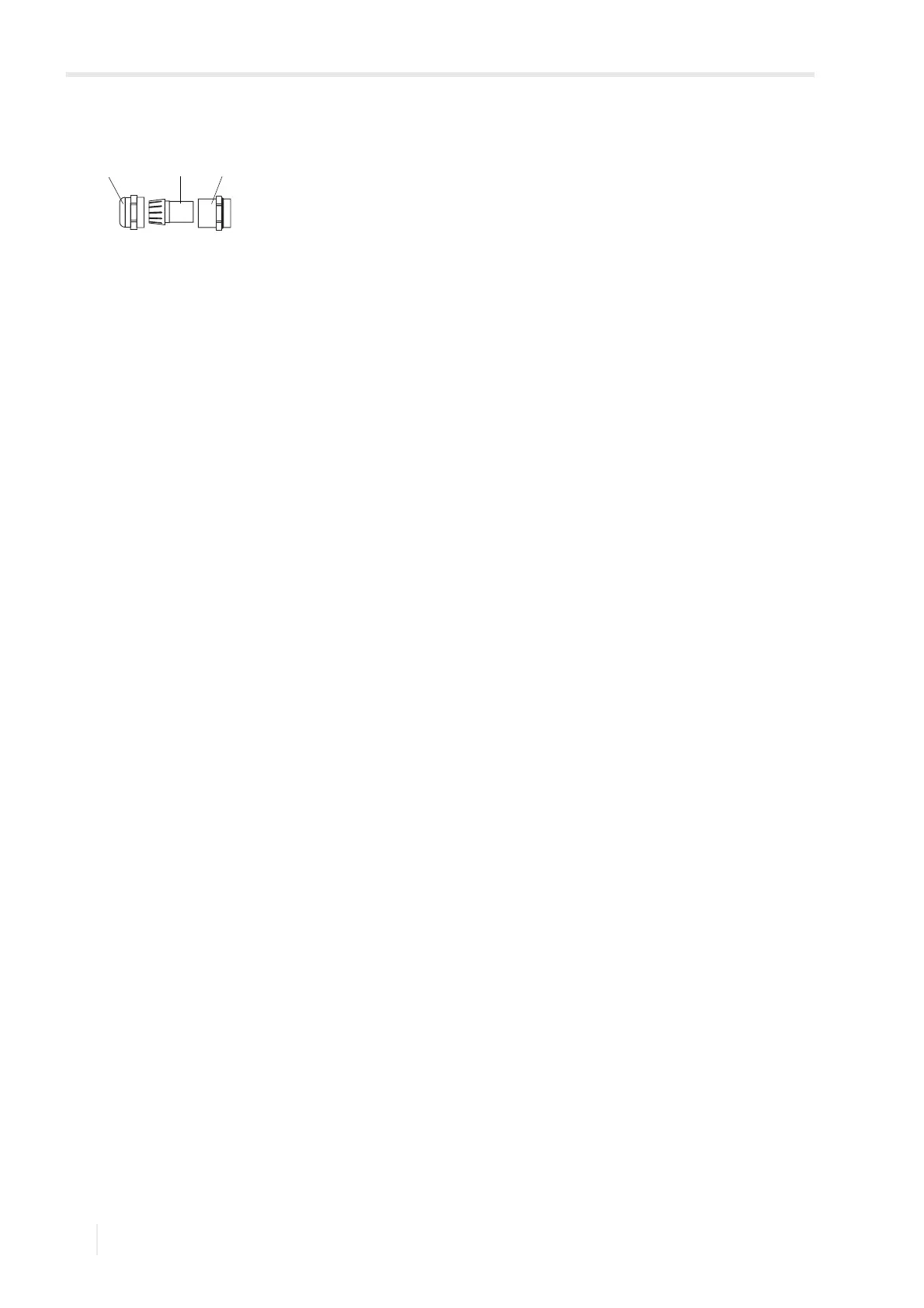

Fig. 8.27: Cable gland
1 – cap nut
2 – compression part
3 – basic part
