9 Camera program
9.1 Screen objects
9.1.1 Result table
The results of measurement markers are displayed in a result table in the top right-
hand corner of the screen.

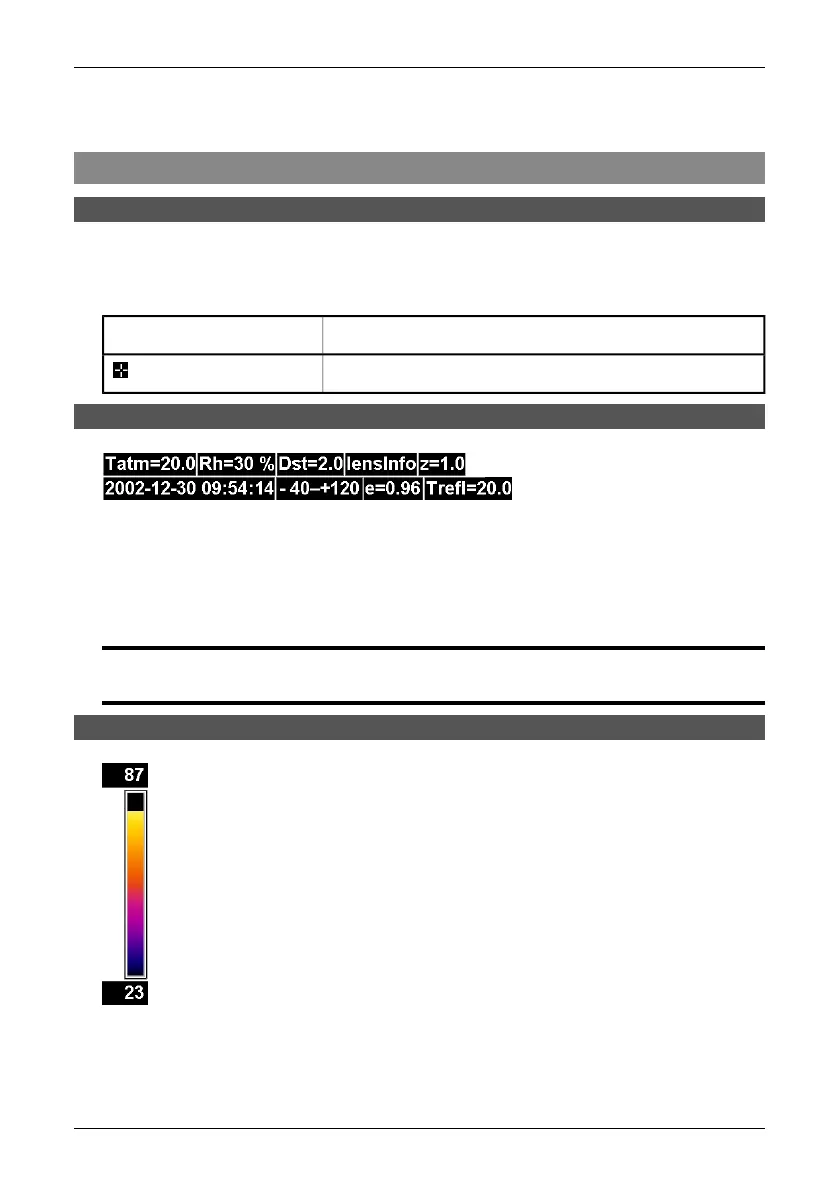

Figure 9.1 Explanation of measurement markers appearing in the result table
ExplanationIcon
Spot
9.1.2 Status bar
10388403;2
Figure 9.2 Status bar, showing atmospheric temperature, relative humidity, distance to target, zoom
factor, date & time, temperature range, emissivity, and reflected ambient temperature.
Information about an image and the current conditions appear on the first and
second bottom lines of the screen. If text comments are attached to an image file,
they are displayed above these two lines.
NOTE: If you enter an emissivity value less than 0.30 the emissivity box will begin flashing to remind
you that this value is unusually low.
9.1.3 Temperature scale
10388503;2
Figure 9.3 Temperature scale
Publ. No. 1 557 536 Rev. a35 – ENGLISH (EN) – January 20, 2004 39
