10390903;2

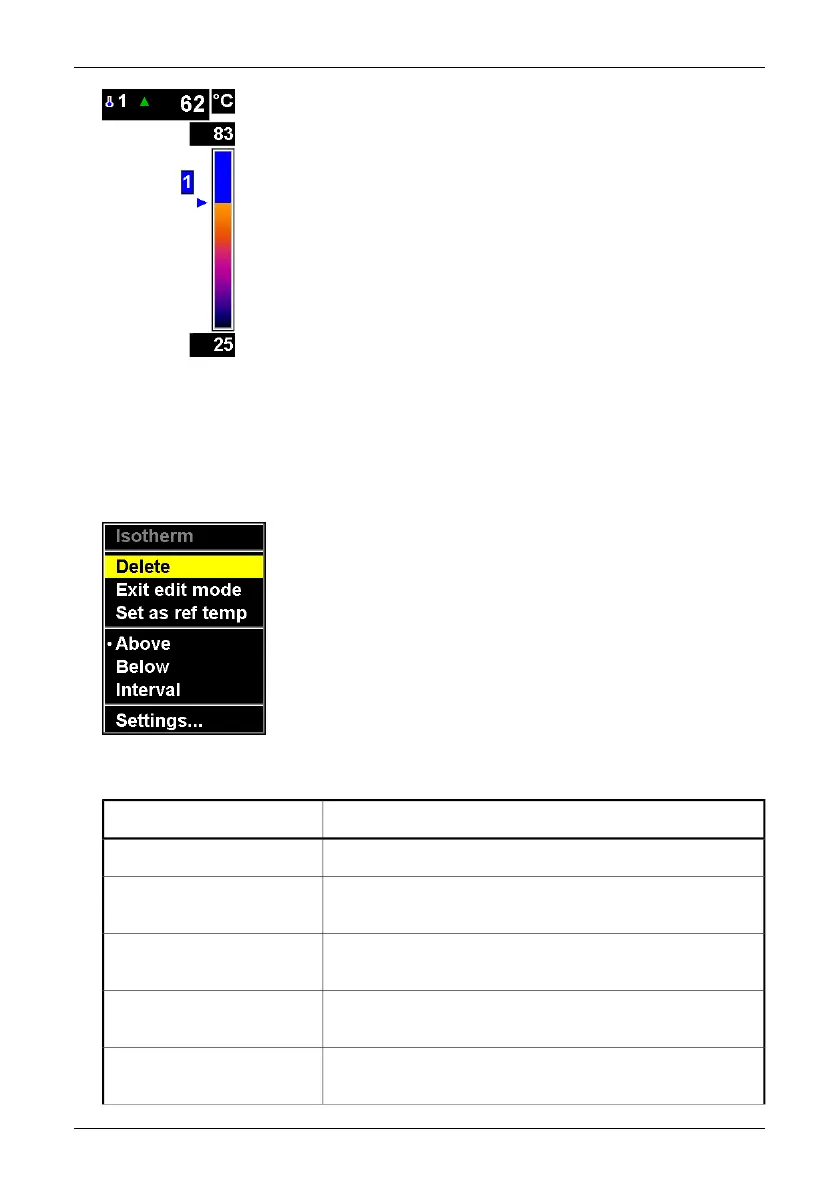

Figure 9.11 Temperature scale showing an isotherm set to above +62 °C
Point to Add isotherm and press the joystick to add an isotherm. An isotherm has
now be added to your image. Press and hold down the joystick for one second
when the isotherm (in the temperature scale) is selected to display a shortcut
menu.
10391203;2
Figure 9.12 Shortcut menu for Isotherm
Figure 9.13 Explanations of the Isotherm shortcut menu
ExplanationCommand
Point to Delete and press the joystick to delete the isotherm.Delete
Point to Exit edit mode and press the joystick to exit the edit
mode.
Exit edit mode
Point to Set as ref temp and press the joystick to use the isotherm
temperature as the reference temperature.
Set as ref temp
All pixels with a temperature higher than a set temperature will
be colored with the same preset isotherm color.
Above
All pixels with a temperature lower than a set temperature will
be colored with the same preset isotherm color.
Below
9.2 – Menu system
Publ. No. 1 557 536 Rev. a35 – ENGLISH (EN) – January 20, 2004 43
