5320A
Users Manual
7-6
280V
RMS
MAX
280V
RMS
MAX
CAT I
1000V
CAT II
600V
RMS MAX
20V PK
30A
RMS
MAX
20V PK
LO
LO - SENSE
, HI ,
mA
V
1500V PK
MAX
50V PK
MAX
20V PK
20V PK
N
L
PE
L1
L2
L3
HES
OUTPUT
Z
L
, Z
GND
,
RCD
HI
L
O
HI
LO
METER
METER
5320A
MUL
TIFUNCTION ELECTRICAL TESTER CALIBR
V
A
COM
INPUT
INSULATION TESTER
1507
Fluke 1507
Fluke 5320A
ehq047.eps

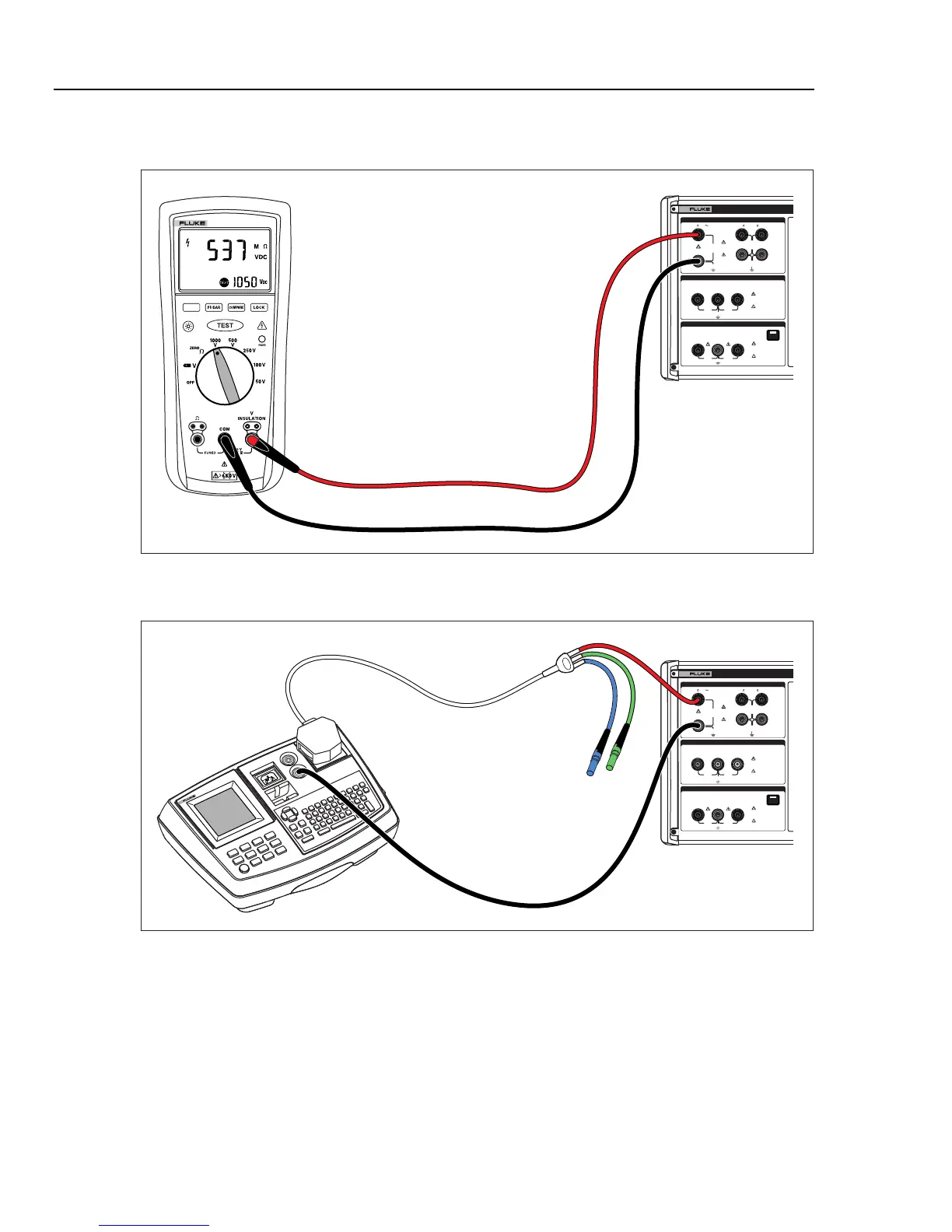

Figure 7-4. Calibrating Insulation Resist
ance of a Handheld Insulation Tester
280V
RMS
MAX
280V
RMS
MAX
CAT I
1000V
CAT II
600V
RMS MAX
20V PK
30A
RMS
MAX
20V PK
LO
LO - SENSE
, HI ,
mA
V
1500V PK
MAX
50V PK
MAX
20V PK
20V PK
N
L
PE
L1
L2
L3
HES
OUTPUT
Z
L
, Z
GND
,
RCD
HI
LO
HI
LO
METER
METER
5320A
MUL
TIFUNCTION ELECTRICAL TESTER CALIBR
V
A
COM
INPUT
6500
APPLIANCE TESTER
Fluke 5320A
Fluke 6500
ehq032.eps
Figure 7-5. Calibrating Insulation Resist
ance of a Portable Appliance Tester
161
163
Table of Contents
Default Chapter
7
Table of Contents
7
Introduction and Specifications
17
Introduction
17
Calibrator Functions
17
Function Descriptions
17
Instruction Manuals
18
5320A Getting Started Manual
18
5320A Users Manual
19
Safety Information
19
General Safety Summary
19
Symbols
21
Contacting Fluke
22
Accessories
22
Included Accessories
22
Optional Accessories
23
General Specifications
23
Electrical Specifications
24
Low Resistance Source
24
High Resistance Source
25
Ground Bond Resistance Source
26
Line/Loop Impedance Source
27
Leakage Current Source
28
RCD (Residual Current Device)
28
AC/DC Voltage Calibrator (5320A/VLC Only)
29
Multimeter
29
Preparing the Calibrator for Operation
31
Unpacking and Inspecting the Calibrator
33
Power Considerations
34
Chapter 2
34
Power Cord
34
Selecting the Line Voltage
35
Replacing the Fuses
35
Installing the Calibrator in an Equipment Rack
35
Turning Power on
36
Operation Rules
37
Warm-Up Time
37
Front-Panel Operation
39
Introduction
41
Controls and Indicators
41
Chapter 3
41
Front-Panel Feature Descriptions
41
Rear Panel
45
Display Panel Features
46
Controlling the Calibrator
47
Selecting a Function
47
Setting the Output Signal Value
48
Numeric Keyboard
48
Cursor Key Editing
49
Editing Values with Knob Control
49
Readings
50
Connection/Disconnection of Output Terminals
50
Calibrator Setup Menu
50
Setting a General Setup Function
51
Setting the Date
51
Setting the Time
51
Enabling/Disabling the Beeper
51
Setting the Beeper Volume
52
Setting the Display Brightness
52
Setting the Calibration Password
52
Viewing the Device Information
52
Factory Settings
53
Error Messages
53
Calibrating Instruments
55
Introduction
57
Setting the Low Resistance Source Output
57
Chapter 4 Function Selection
57
Setting the High Resistance Source Output
59
Function Selection
60
Setting the Ground Bond Resistance Output
62
Setting the Loop and Line Impedance Output
64
Line and Loop Residual Impedance
67
Selecting the Residual Impedance Correction Mode
67
Setting the Manual Residual Impedance Correction Value
68
Setting the Scanned Residual Impedance Correction Value
69
Performing Leakage Current Calibration
70
Setting the Compensation Residual Impedance Correction Value
70
Calibrating Passive Leakage Current
71
Calibrating Active Leakage Current (5320A/VLC Only)
72
Calibrating Diffential Leakage Current
72
Substitute Leakage Current Mode
74
Calibrating RCD Test Functions
75
Calibrating RCD Trip Current Function
76
Power Line Voltage
77
Touch (Contact) Voltage
77
Calibrating RCD Trip Time
78
Power Line Voltage
80
Touch (Contact) Voltage
81
AC/DC Voltage Calibration (5320A/VLC Only)
83
Measuring with the Built-In Multimeter
85
Function Selection
85
Measurements
86
Remote Operation
91
Introduction
93
Using the IEEE 488 Port for Remote Control
93
Chapter 5
93
IEEE488 Bus Restrictions
93
Setting up the IEEE 488 Port
93
Using the RS-232 Port for Remote Control
94
Setting up the RS-232 Port
94
RS-232 Connector Pinout
95
Exceptions for RS-232 Remote Control
95
Using the Ethernet Connection for Remote Control
95
Factory Settings
96
Command Syntax Information
96
Parameter Syntax Rules
96
Terminators
97
Numeric Output Format
97
Supported SCPI Commands
97
Description of Abbreviations
98
SCPI Command Summary
98
SCPI Command Details
107
Using the Output Commands
107
Using the Source Commands
107
Using System Commands
129
Using the Status Subsystem
130
Using IEEE 488.2 Common Commands
131
Standard Status Data Structures
133
SRE Service Request Enable Register
135
ESR Event Status Register
135
ESE Event Status Enable Register
136
IEEE 488 Interface Configuration
137
Operator Maintenance
139
Introduction
141
Accessing the Fuses
141
Chapter 6
141
Line-Power Fuse
141
Measurement Input Fuses
142
Cleaning the Air Filter
142
Cleaning the Exterior
143
What to Do in Case of Calibrator Failure
143
Verifying Calibrator Operation
144
Preparing for Calibrator Verification
144
Performing Calibrator Verification
144
Tables of Limits
151
Applications
157
Chapter 7
159
Introduction
159
Calibrating Continuity Testers
159
Calibrating Earth Resistance Testers
160
Calibrating Insulation Resistance Testers
161
Calibrating Insulation Resistance Testers with the Resistance Multiplier
164
Calibrating Ground Bond Resistance Testers
166
Calibrating Line Impedance Testers
168
Calibrating Loop Impedance Testers
170
Calibrating Leakage Current Testers
170
Passive, Differential and Substitute Leakage Current Calibration
170
Calibrating Residual Current Device (RCD) Testers
172
Calibrating RCD Trip Time
172
Calibrating Using 0.5 I Multiplier
172
Calibrating Using 1 X I Multiplier
174
Calibrating Using 1.4XI, 2 X I, and 5 X I Multipliers
175
Calibrating RCD Trip Current
176
Calibrating AC and DC Voltage (5320A/VLC Only)
176
Calibrating Load Test for Appliance Testers
179
Calibrating High Voltage Sources (Hipots) with a High Voltage Probe
180
Measuring High Voltage with the High Voltage Adapter
180
Measuring High Voltage with an 80K-40 High Voltage Probe
181
Measuring Leakage Current with the 5320A-LOAD
182
Appendices
187
A Errors
187
