Fluke DTX-MFM2 Technical Reference Handbook

DTX Series CableAnalyzer
Technical Reference Handbook
7-8
Verifying Operation
1 Clean the tester’s connectors and the connectors on
two SC/SC reference test cords.
2 Connect the tester and smart remote together, as
shown in Figure 7-5.
3 Turn the rotary switch to SPECIAL FUNCTIONS.
4 Use D to highlight Self Test; then press H.
5 Press Pto start the self test.
amd118f.eps

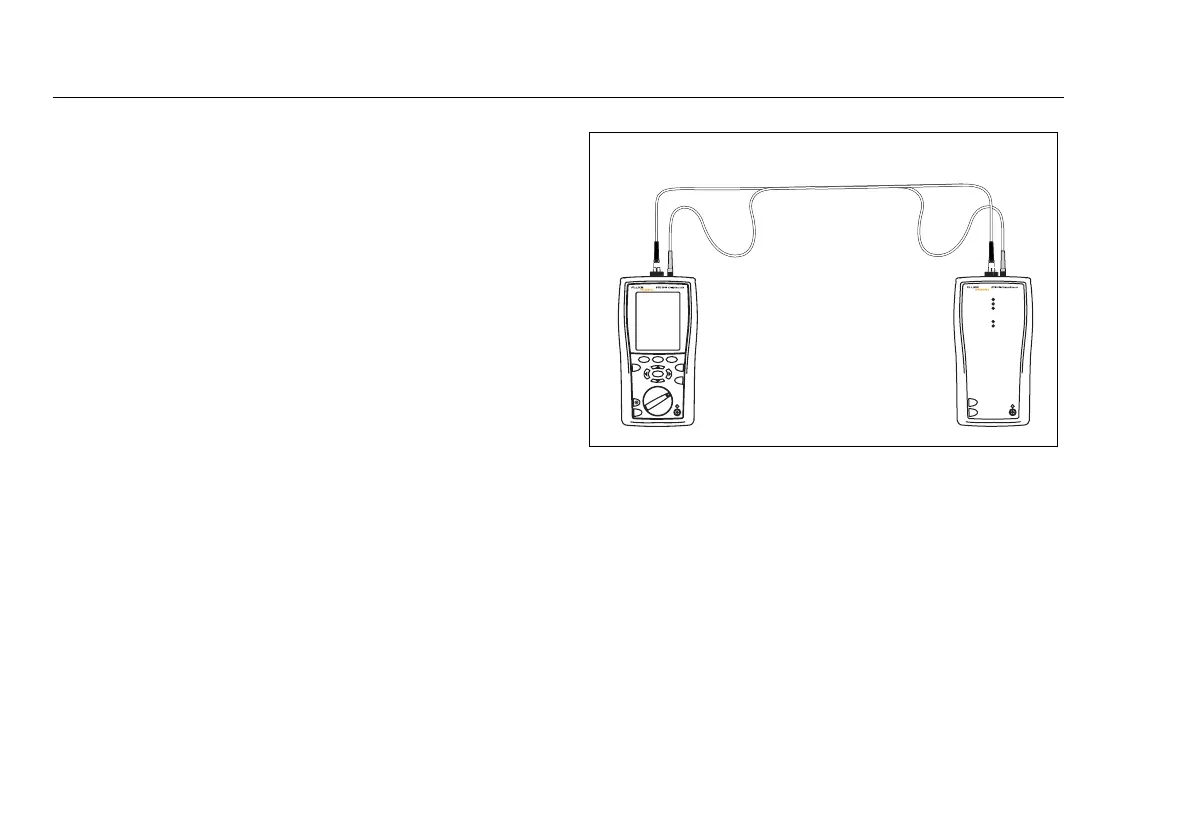

Figure 7-5. Self Test Connections for Fiber Modules
TALK
MONITOR
ENTER
TEST
SAVE
SPECIAL
FUNCTIONS
SETUP
AUTO
TEST
SINGLE
TEST
EXIT
F1 F2 F3
TALK
TEST
PASS
TEST
FAIL
TALK
TONE
SC to SC reference test cord
