Viewing and Managing Saved Results
To view and manage saved results, turn the rotary switch to
SPECIAL FUNCTIONS, use
D to highlight View/Delete
Results; then press
H.

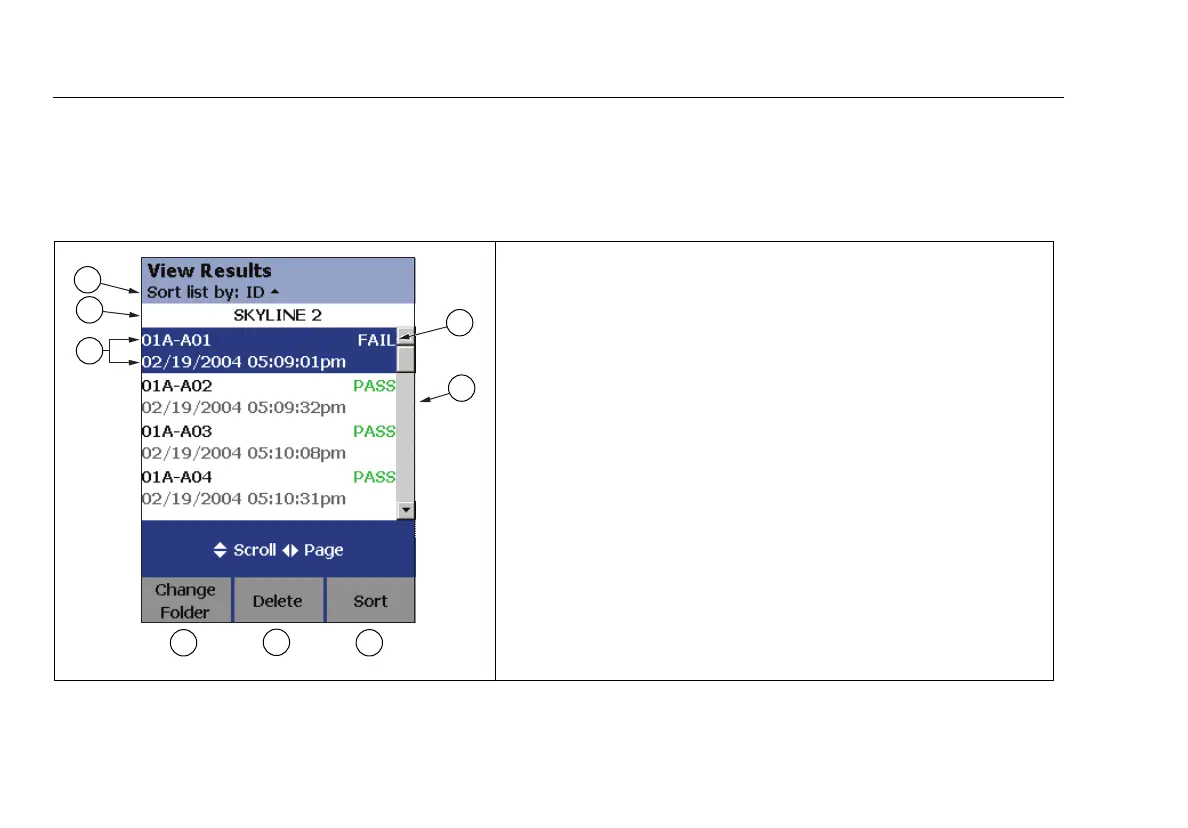

Figure 12-2 describes the View Results screen.
Figure 12-2. View Results Screen
amd109f.eps
1 Sorting order of the list of results. For example, ID Q means the
list is sorted by cable IDs in ascending order. Press
L Sort to
change the order.
2 Name of the current folder. Press
J Change Folder to select a
different folder.
3 The result’s cable ID and the date and time the test was
completed.
4 The overall result for the test. See page 3-12 for details on PASS*
and FAIL* results.
5 Scroll bar, which appears when there is more than one screen of
results to view. Press
AD to scroll up and down. Press
BC to scroll up or down a screen at a time
6 Press
J Change Folder to select a different folder.
7 Press
K Delete to delete results or folders.
8 Press
L Sort to sort the list of results.
