Certifying Twisted Pair Cabling
Twisted Pair Autotest Results
3-13
3
Wire Map
Wire map results show the connections between the main
and remote testers. The tester checks the cable pairs
required by the selected test limit. If the wire map test fails,
you can continue or stop the Autotest.
Tip: The wire map test in Single Test mode features a
scanning function that runs the wire map test
continuously. This function is helpful for locating
intermittent wiring faults.
Figure 3-8 describes examples of wire map screens. For
information on AC wire map screens, see Chapter 4.
-continued-

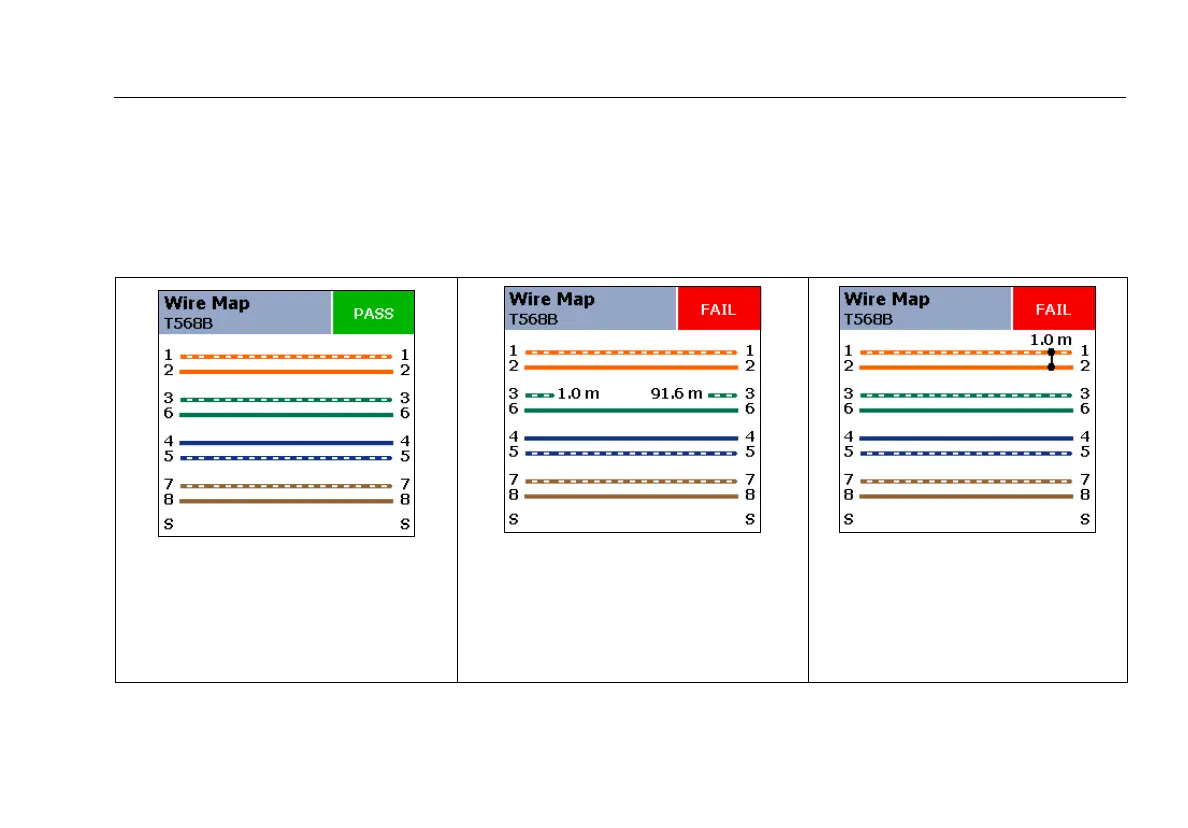

Figure 3-8. Wire Map Examples
amd144i.bmp amd81i.bmp
Correct wiring (568B)
Shield continuity is shown if a shielded
cable type (such as FTP or SSTP) is selected
in SETUP.
Open
Wire 3 is open 1.0 m from the tester and
91.6 m from the smart remote.
Short
Wires 1 and 2 are shorted 1 m from the
smart remote. Shorts not within a
cable pair are always show at the near
end (left side) of the wire map screen.
To Next Page
