7-40
Far End Source Mode Autotest Results
The
Summary
screen appears when the test is finished.
To see more detailed results, use
D
to highlight a
measurement; then press
H
.

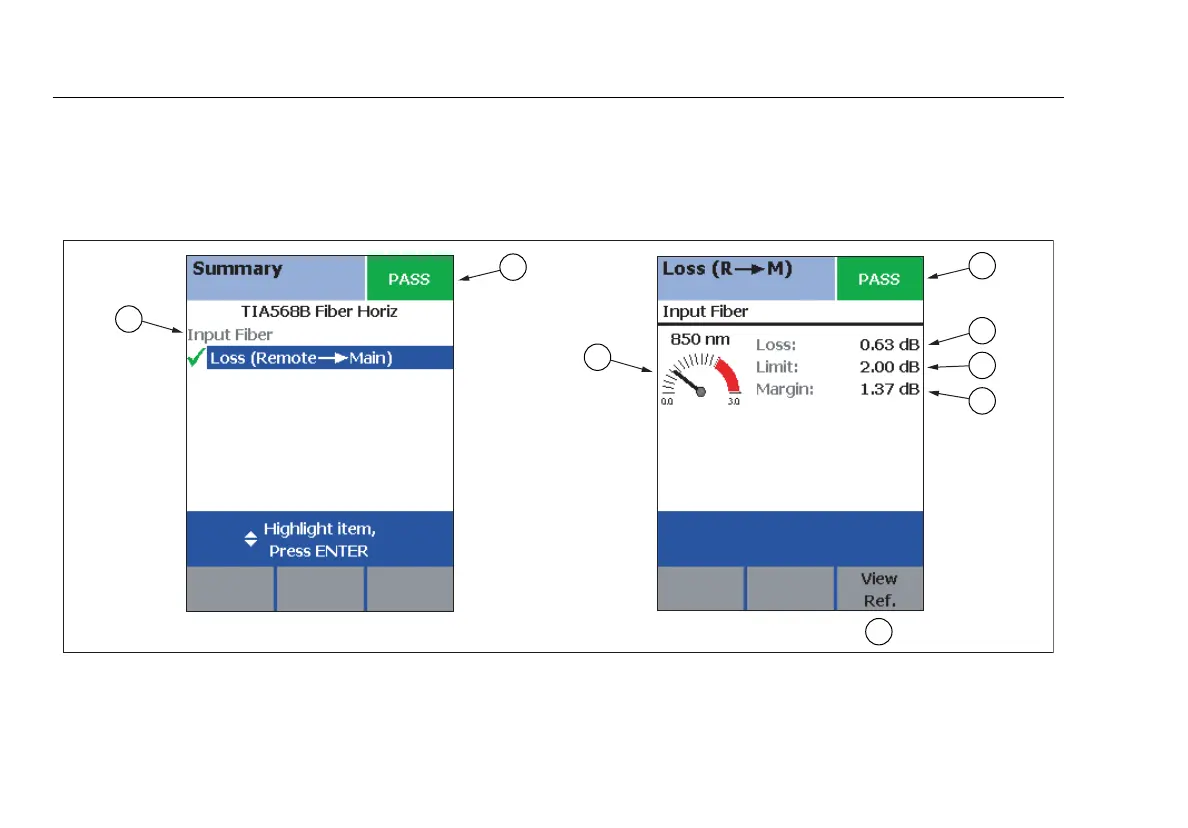

Figure 7-19 describes the
Summary
screen loss results screen
for an Autotest in Far End Source mode.
amd28f.eps
Figure 7-19. Far End Sour
ce Mode
Summary and Results Screens
1
2
3
7
4
5
6
8
191
193
