Certifying Twisted Pair Cabling
Twisted Pair Autotest Results
3-15
3
Resistance
Resistance results show the dc loop resistance for each cable
pair. The smart remote shorts the end of each pair to create
the loops. A pair’s resistance depends on the integrity of
the contacts in the connector, the length of the pair, and its
wire gauge.
Resistance problems always affect other tests. For example:
•
A link that is too long has higher-than-normal
resistance and will fail the length test.
•
High-resistance connections reflect signals that cause
the return loss test to fail. The tester’s HDTDR test tells
you the distance to the bad connection.
Most standards do not have a limit for resistance. The tester
shows an
i when no limit is available. Figure 3-9 shows the
resistance results screen.
Tip: The resistance test in Single Test mode features a
scanning function that runs the resistance test
continuously. This function is helpful for locating
intermittent resistance faults.
amd85f.eps

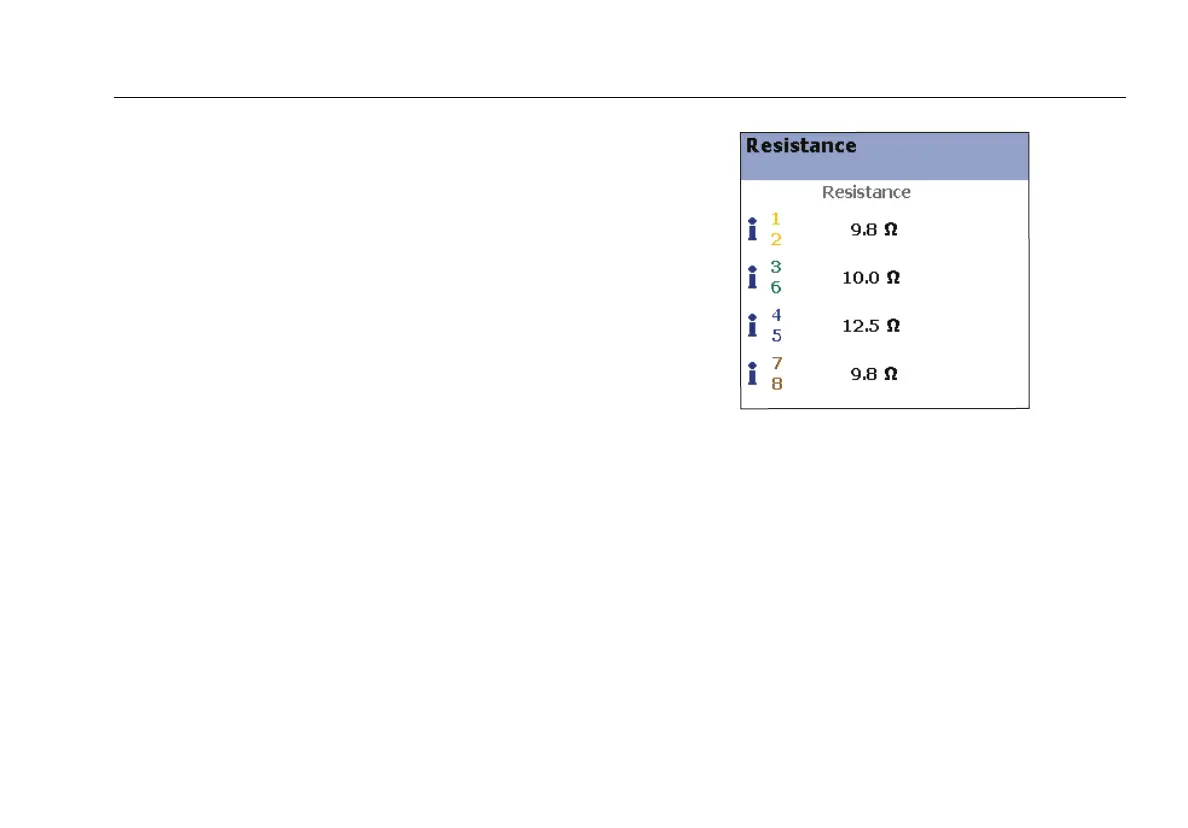

Figure 3-9. Resistance Results
