Fona XPan DG Plus - Page 70

Technical Manuals
70
1

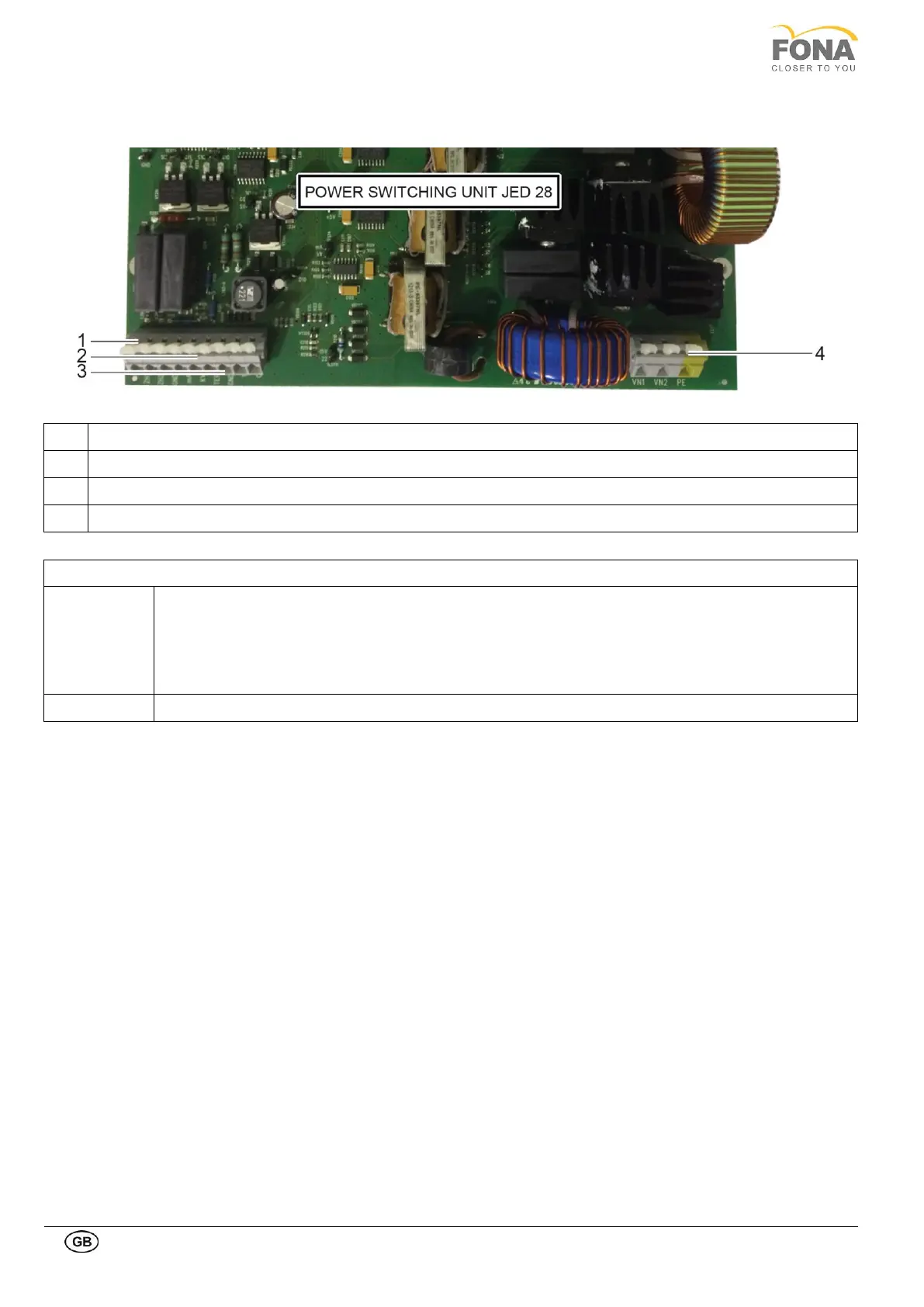

Filament Supply
2
Feedback Signals Kv & mA
3
Thermal Sensor
4
High Voltage Supply
CONNECTORS (tube head detail)
XT202
Filament Supply (two wires: ZH1, ZH2)
Ground connection (GND)
mA feedback (mA)
kV feedback (kV)
TER Thermal Sensor
XT201
High Voltage Supply (two wires plus ground: UN1, UN2, GND)
