2.3. SERVICE PROCEDURES

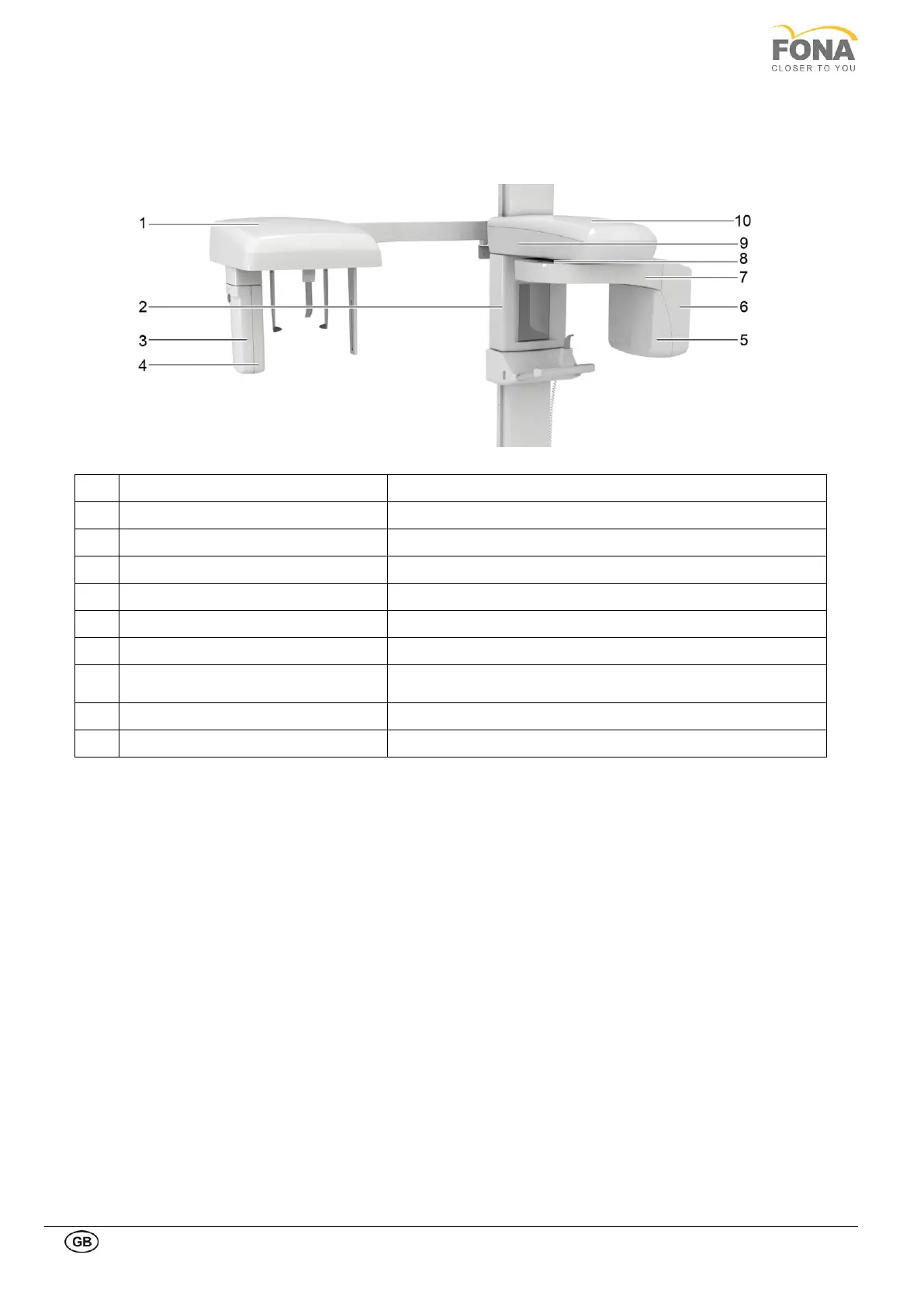

2.3.1. Plastic covers
1
Upper cephalostat metal cover
Allen screw, 3mm, 4
2
Mirror cover
Allen screw 3mm, 4 on the back
3
Outer sensor cover
Phillips screw, 1 at the bottom
4
Inner sensor cover
Phillips screw, 1 at the bottom
5
Inner Tube Head cover
Phillips screw, 4 on the back. Remove D first.
6
Display cover
Phillips screw, 2 at the top, 1 at the bottom
7
Drive Lower cover
Phillips screw, 6
8
Vertical upper bottom cover
Allen screw 3mm, 4 on the back and 1 in front. Remove A
first.
9
Drive upper metal cover
Allen screw 2.5mm, 4, Phillips screw 6
10
Vertical upper top cover
Allen screw 3mm, 2 at top and 2 on the back
