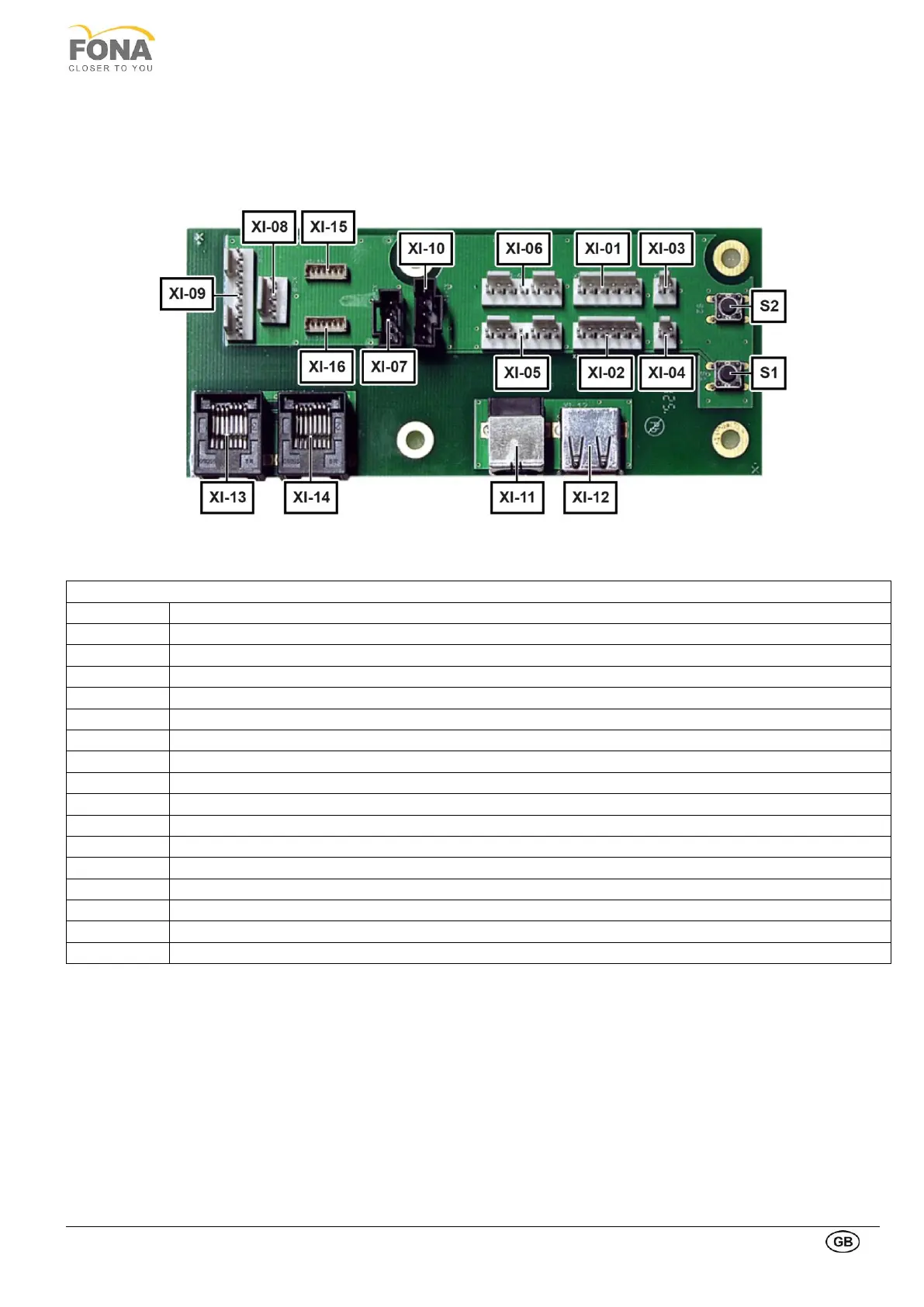

2.1.10. Ceph Interconnection Board
The CEPH interconnection board connects the digital sensor movement section on the CEPH side to the rest of the
system, also intercepting the limit switch contacts and the two calibration buttons.
The CEPH interconnection board connections are listed below.
CONNECTORS
XI-01
Digital sensor power supply (to multiplexer).
XI-02
Digital sensor power supply (to sensor connection on CEPH side).
XI-03
Not used.
XI-04
Not used.
XI-05
Digital sensor control signals (to sensor connection on CEPH side).
XI-06
Digital sensor control signals (to multiplexer).
XI-07
Limit switches (to switches).
XI-08
Digital sensor motor drive on CEPH side (to multiplexer).
XI-09
Digital sensor motor drive on CEPH side (to motor).
XI-10
Digital sensor position and movement limit switch calibration buttons (to multiplexer).
XI-11
Not used.
XI-12
Not used.
XI-13
Gigabit Ethernet connection (to CEPH sensor interface).
XI-14
Gigabit Ethernet connection (to Gigabit Ethernet Switch).
XI-15
Not used.
XI-16
Not used.
S1, S2
Switches for position calibration (mechanical alignment).
