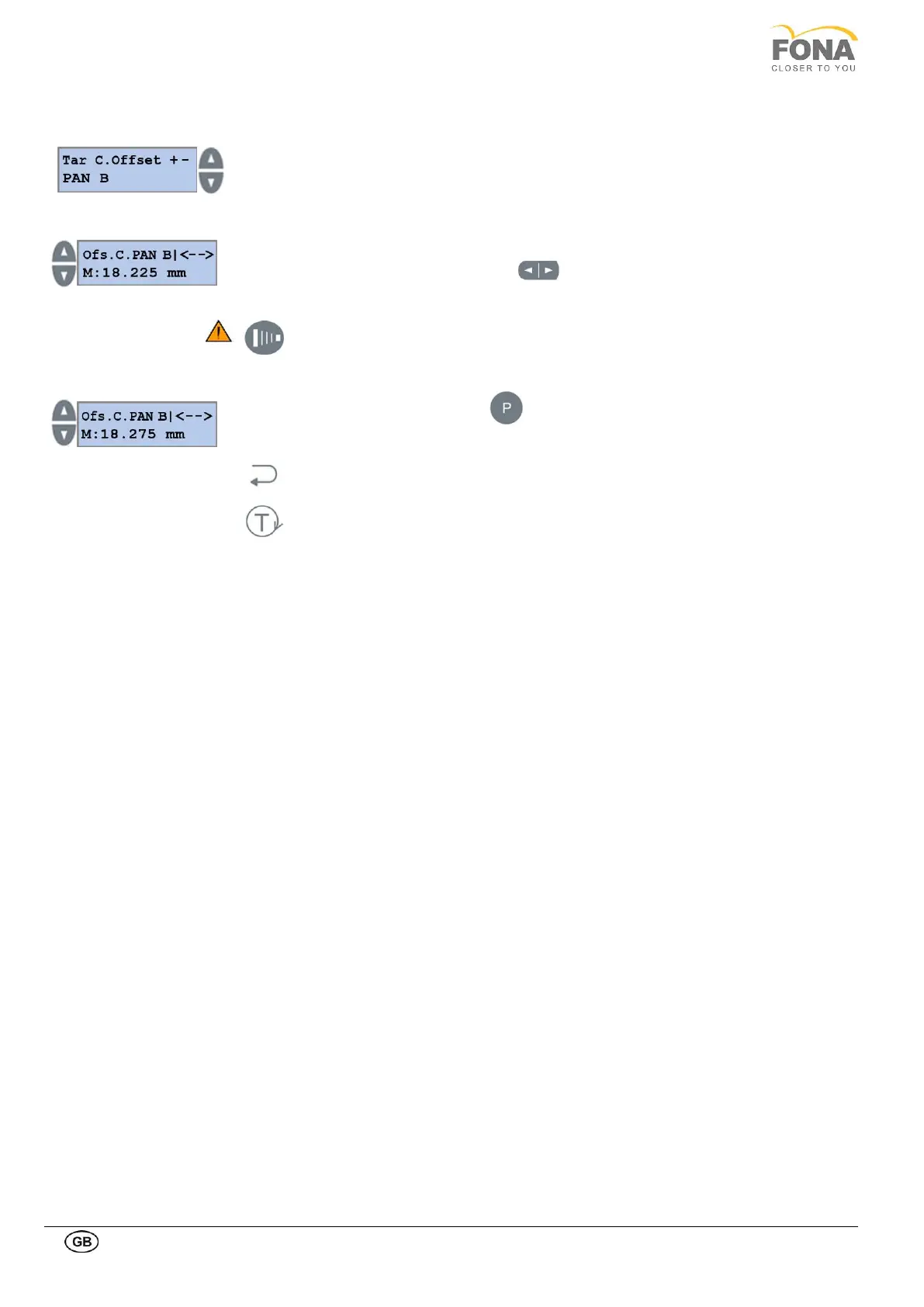

C Axis - PAN Child slit Offset
Press INCREASE or DECREASE key to the Right side of the display to until PAN B is
shown
Press the PROGRAM key to enter PAN Child Adjust offset menu. The collimator will
move automatically to reach the Pan Child slit position.
Press INCREASE or DECREASE keys on the LEFT side of the display
(large movements) or the two arrows (small movements) to shift the collimator
right or left till the desired position
In this position is possible to release the exposure with the X-Ray button in order
to acquire the image on OrisWin and verify that the collimator slit is correct
Technical parameters are fixed at values: 67kV, 5mA
Keep pressed the PROGRAM key to store the Offset for Pan Child slit
The actual offset value stored in memory is shown
Press BACK key to go back to Tar. C. Offset menu
Press TEST Mode key to exit SERVICE MODE
