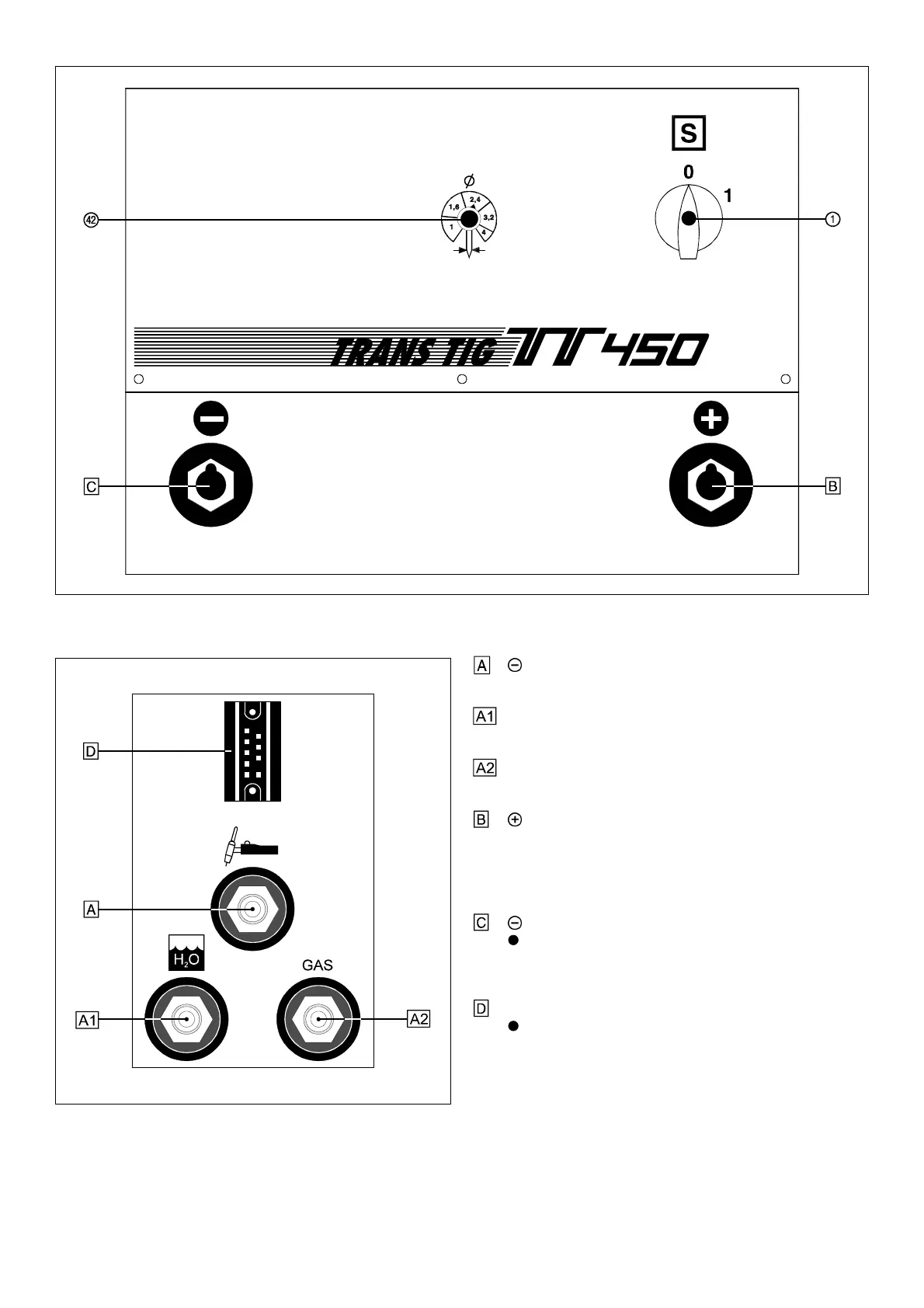

Fig. 20
Fig. 19
TIG torch connection with sealing cone for
CURRENT-WATER RETURN FLOW
Screw-type connection with sealing cone for
WATER FORWARD FLOW
Screw-type connection with sealing cone for
SHIELDING GAS
CURRENT SOCKET with bayonet-type latch. Is used:
a) as earth-cable connection for TIG welding
b) as the connection point for the manual electrode cable or
the earth cable (depending on the type of electrode) in
manual electrode welding
CURRENT SOCKET with bayonet-type latch. Is used:
as the connection point for the manual electrode cable
or the earth cable (depending on the type of electrode)
in manual electrode welding
TORCH CONTROL SOCKET
Plug and latch in the control socket of the welding torch
