Fujitsu ETERNUS CS800 - Page 63

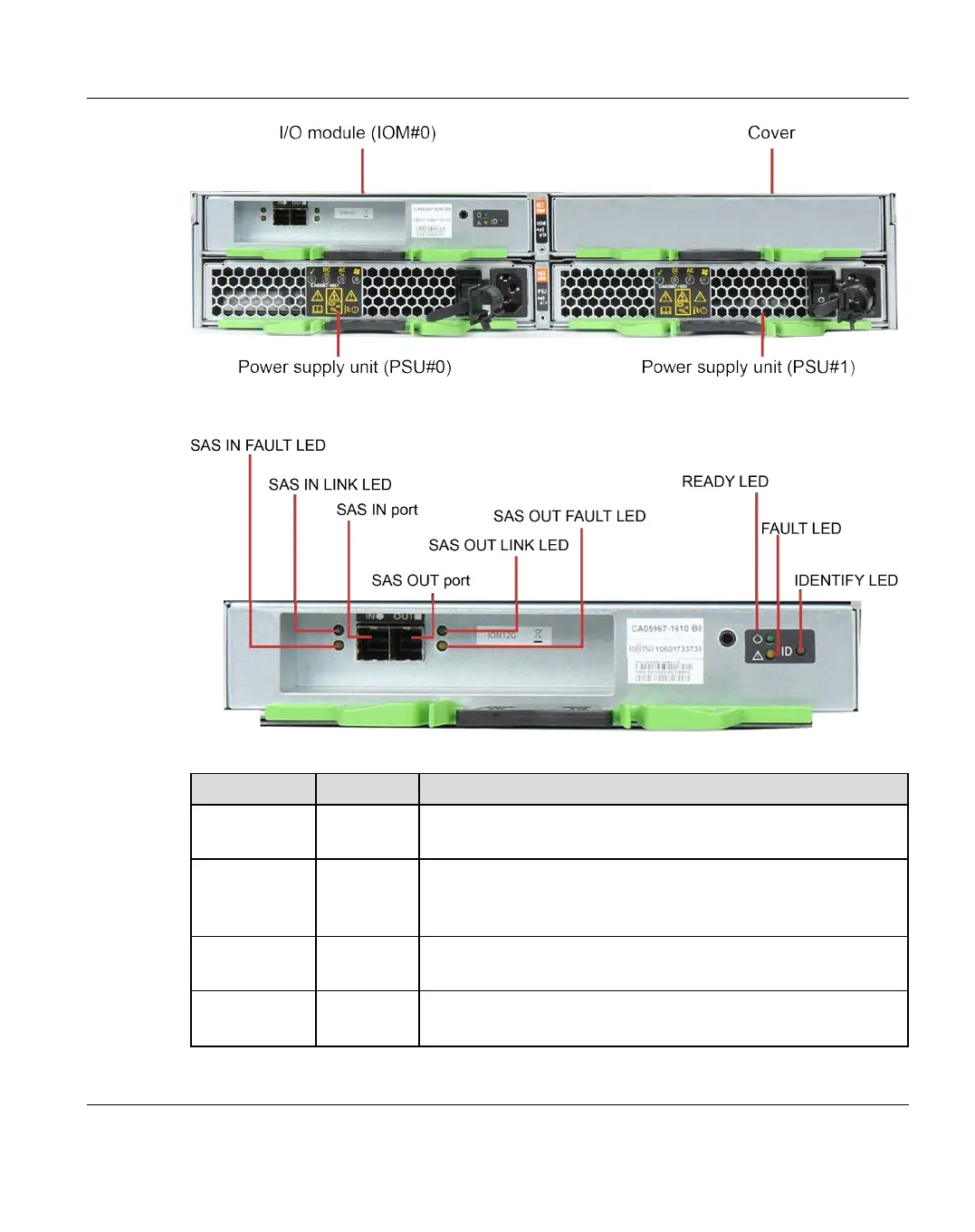

Figure 30: Rear view of JX40 S2
Figure 31:
Figure 32: Rear view of JX40 S2- I/O module
LED name LED status Description
SAS INlink green The link between the SAS IN port and the source port has
been established.
SAS IN fault amber The ports to remove the mini SAS HD cables between
enclosures from are indicated. This occurs while a drive
enclosure is being added.
SASOUT link green The link between the SAS OUT port and the destination port
has been established.
SASOUTfault amber The link between the SAS OUT port and the destination port is
in error status.
ETERNUS CS800 63
3 Hardware Description
