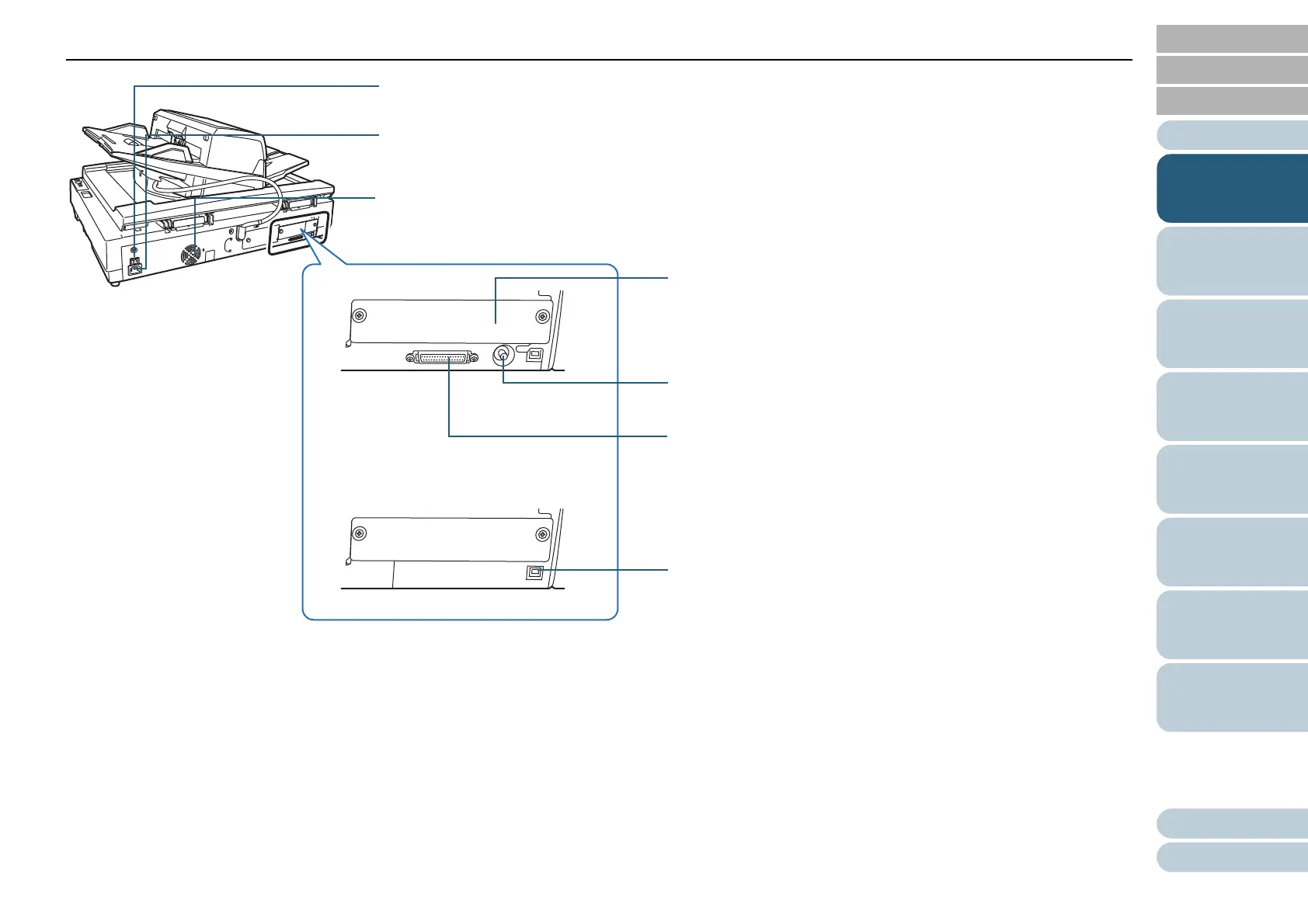

USB Connector (Common)
A connector for a USB interface cable.
SCSI Connector (fi-6770 only)
A connector for a SCSI interface cable.
CGA Board Slot (fi-6770 only)
Connects a CGA board.
For details of the CGA board, refer to "A.4 Scanner Options" (on
page 176).
fi-6770
fi-6750S
Main Power Switch (Common)
Used to turn the scanner ON and OFF.
Power Connector (Common)
A connector for the power cable.
Ventilation Port (Common)
An open port for ventilating hot air from inside the scanner.
SCSI ID Switch (fi-6770 only)
Used to configure a SCSI ID (ID=5 by factory setting).
