158
Chapter 6 Installing Internal Options

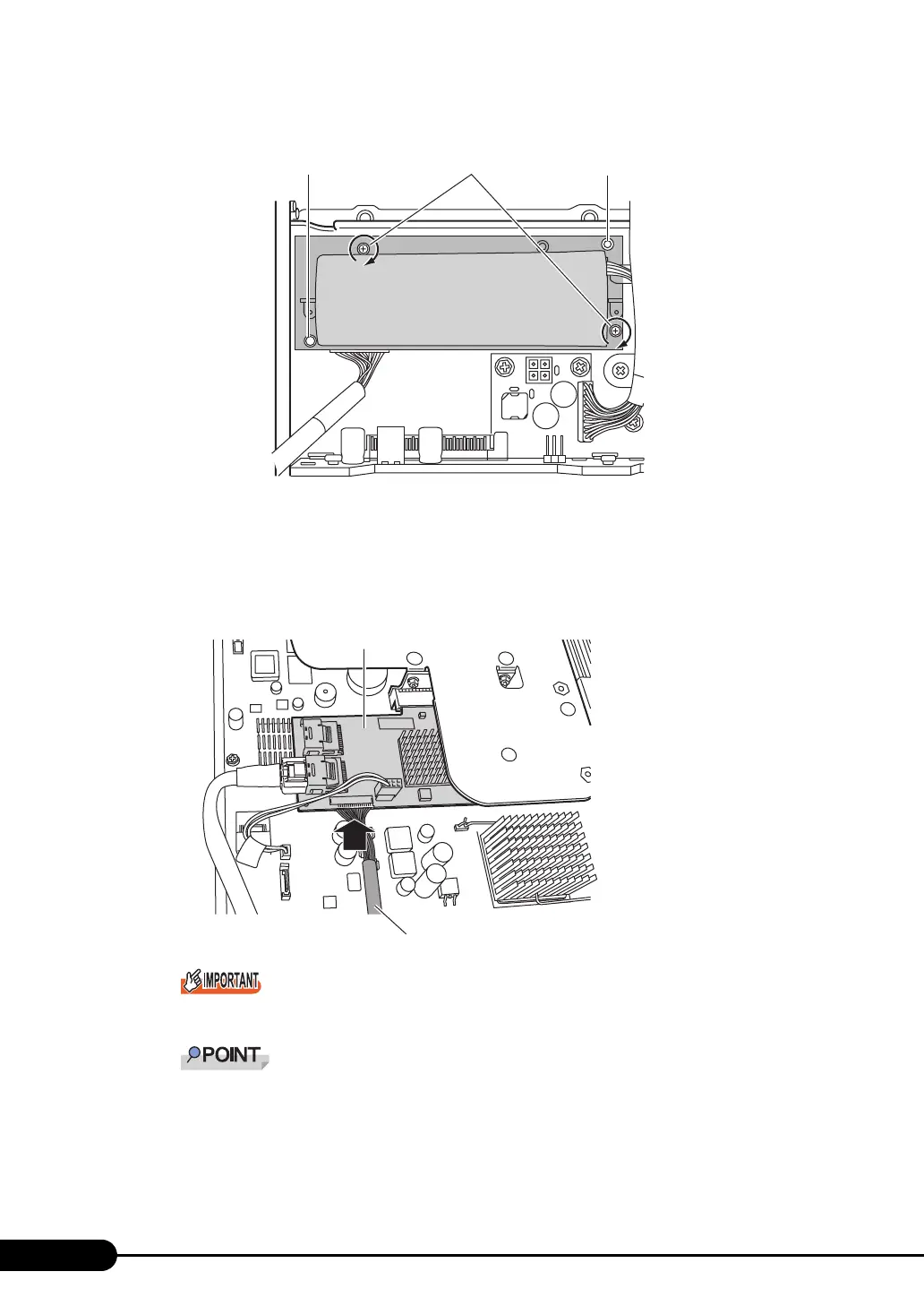

3. Tighten the two locations with the screws that were removed in Step 3.
6 Connect the cables that were removed in Step 5-1.
7 Connect the battery backup unit cable to the expansion card.
Connect the battery backup unit cable checking its direction.
Do not connect the cable using excessive force, the connector is weak.
When a SAS RAID Ctrl is installed in PCI slot 2, first temporarily remove the card fix frame,
then connect the battery backup unit cable.
8 Attach the top cover and push the server back into the rack.
"6.2 Attaching/Removing the Top Cover" (p.132)
[Front]
Insert this part into the stud.
Insert this part into the stud.Screws
Expansion card
Battery backup unit cable
[Front]
To Next Page
