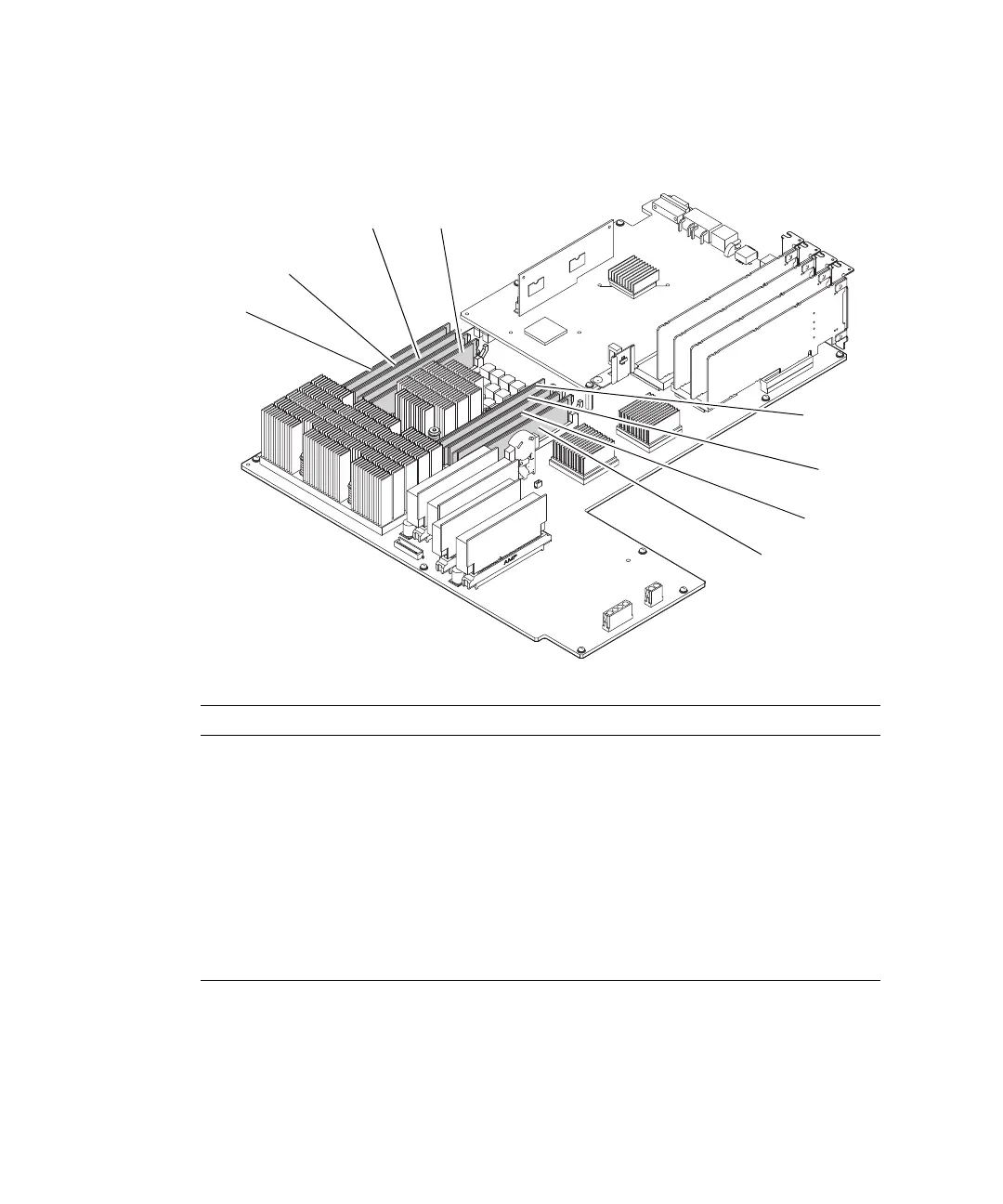

FIGURE 7-1 shows the locations of DIMMs and memory slots.
FIGURE 7-1 Locations of DIMMs and Memory Slots
Location Number Component
1 MEM#00A, memory slot (group A)
2 MEM#00B, memory slot (group B)
3 MEM#01A, memory slot (group A)
4 MEM#01B, memory slot (group B)
5 MEM#02A, memory slot (group A)
6 MEM#02B, memory slot (group B)
7 MEM#03A, memory slot (group A)
8 MEM#03B, memory slot (group B)
1
2
3
4
8
7
6
5
