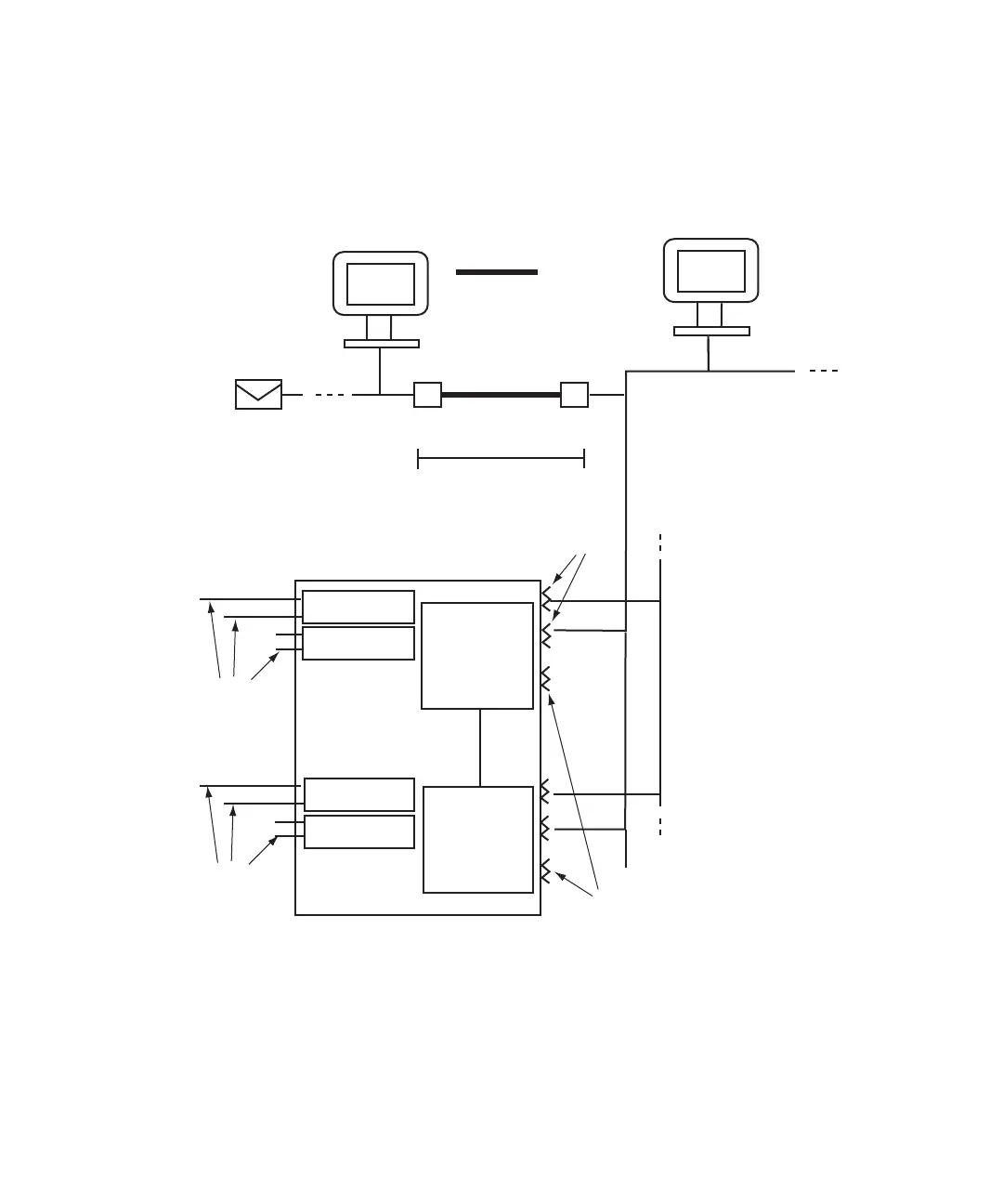

FIGURE 3-5 shows the connection via an external network.
FIGURE 3-5 Connection of External Internet Using VPN Communication (In High-End
Server)
For security reasons, using Virtual Private Network (VPN) as the external network is
strongly recommended.
SSH/telnet/
https
connection
SSH/telnet/
https
connection
Mail
Notification
RouterRouter
VPN communication
Internet
Terminal
Terminal
Basic cabinet
Serial port
:
:
User
LAN
User
LAN
DomainID x
DomainID y
DomainID m
DomainID n
XSCFU
#0
XSCFU
#1
XSCF-LAN port
