Gatewing X100UAS - 19.6.3 Check the pitch and roll position of the X100

2.0 — 173 — 12 October 2012
Prepare for flight
Launch
6 Remove the crank from the launch slide.

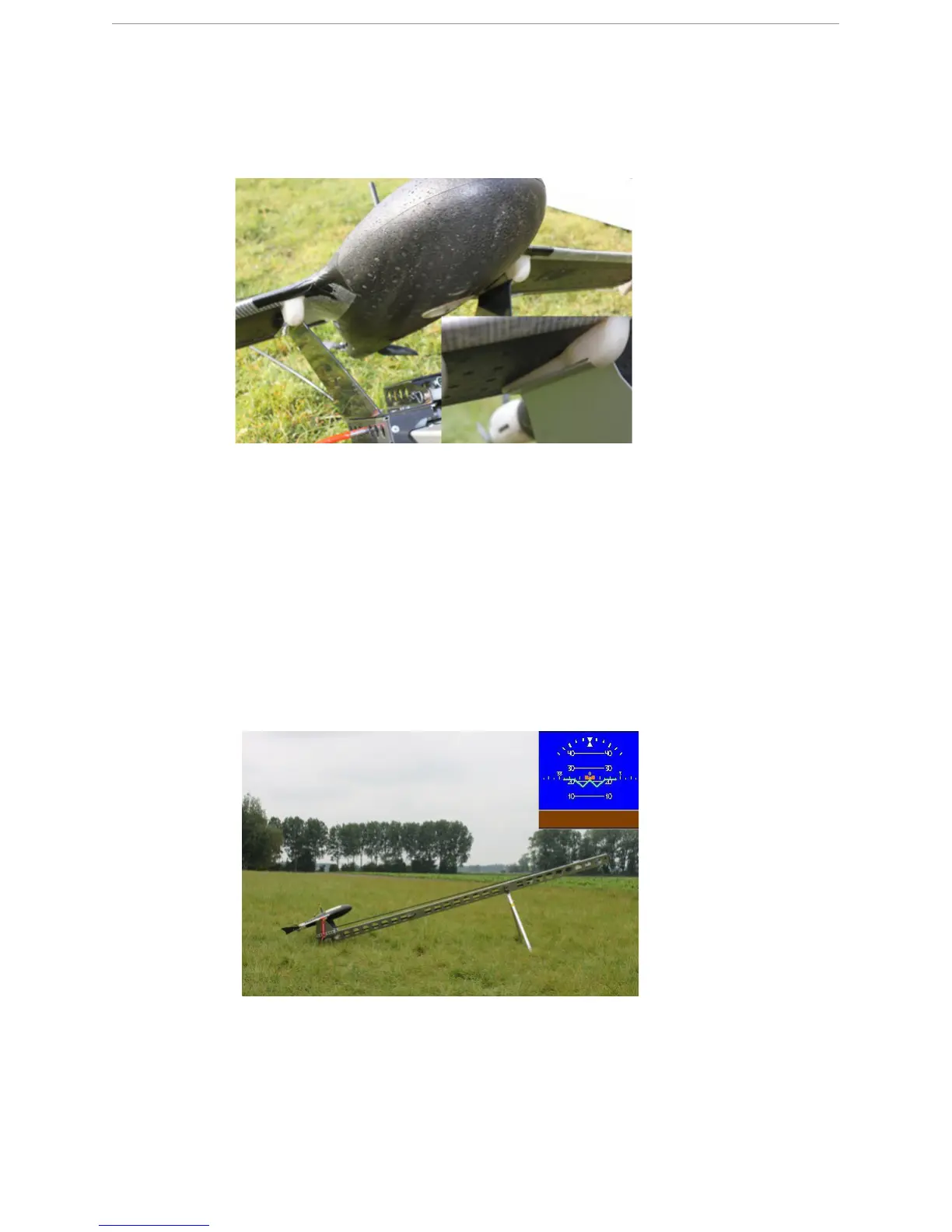

19.6.3 Check the pitch and roll position of the X100
P REREQUISITES
● Armed launcher
● Powered on GCS with Gatewing Horizon artificial horizon indicator
● X100 connected to GCS
The X100 must have a correct pitch and roll position to perform a successful launch.
1 Make sure the X100 has a pitch angle between 20 and 30° on the artificial horizon indica-
tor.
N
OTE: If the pitch angle is not between 20 and 30°, the X100 is not positioned correctly
or there is an sensor malfunction.
