Mount the X100 on the launcher
11.4 Mount the X100 on the launcher
P
REREQUISITES
● Assembled launcher
● X100 ready for flight
● Crank (or torque wrench if available)
It is important to mount the launcher in a correct way to ensure a proper launch and take-off.
W
ARNING: Never perform a launch when the launcher is armed without the X100.

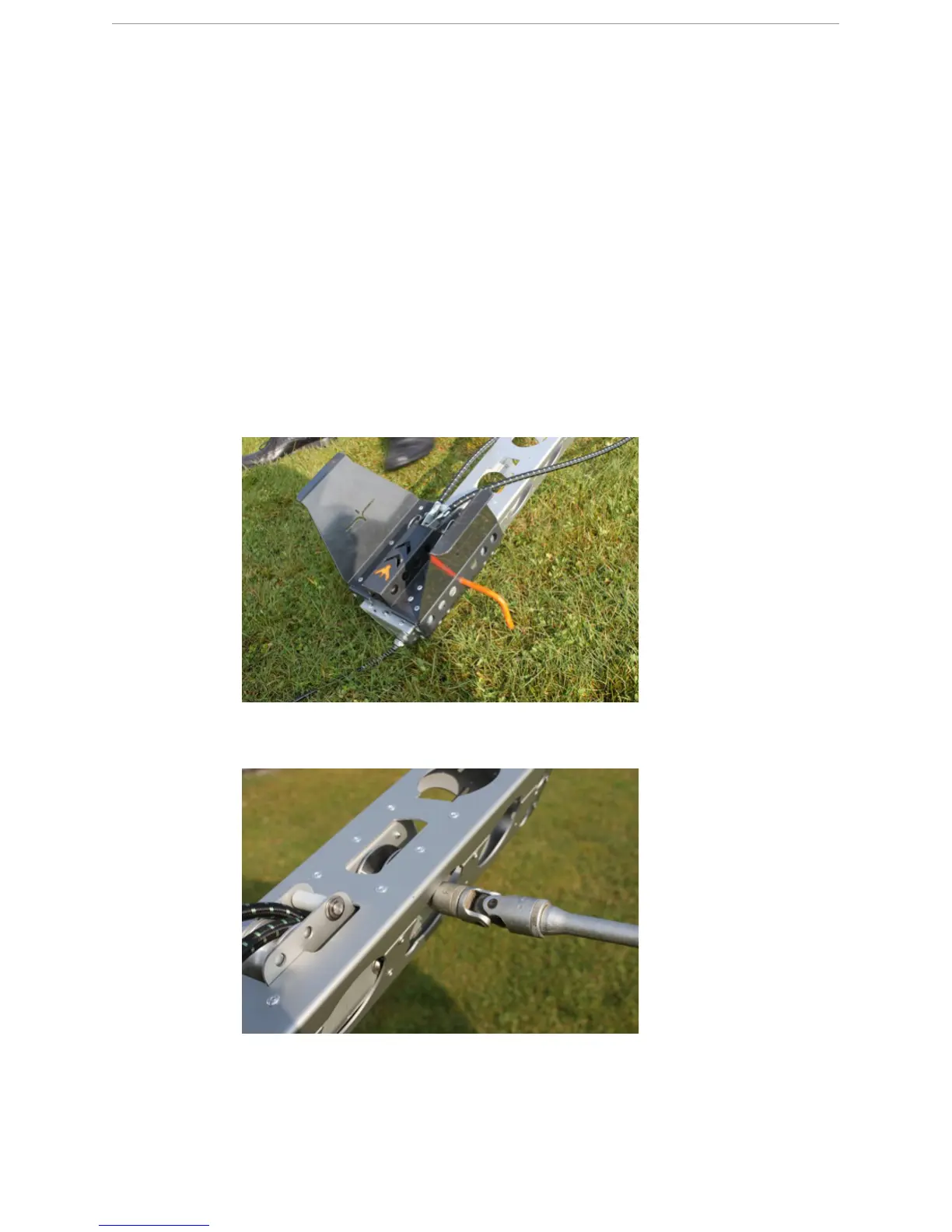

1 Make sure the safety pin is properly inserted in the launch dock and launch slide.
2 Connect the crank to the tightening system.
N
OTE: The crank must be connected to the head of the screw and not to the bolt or nut.
