After the flight

Clearing the site

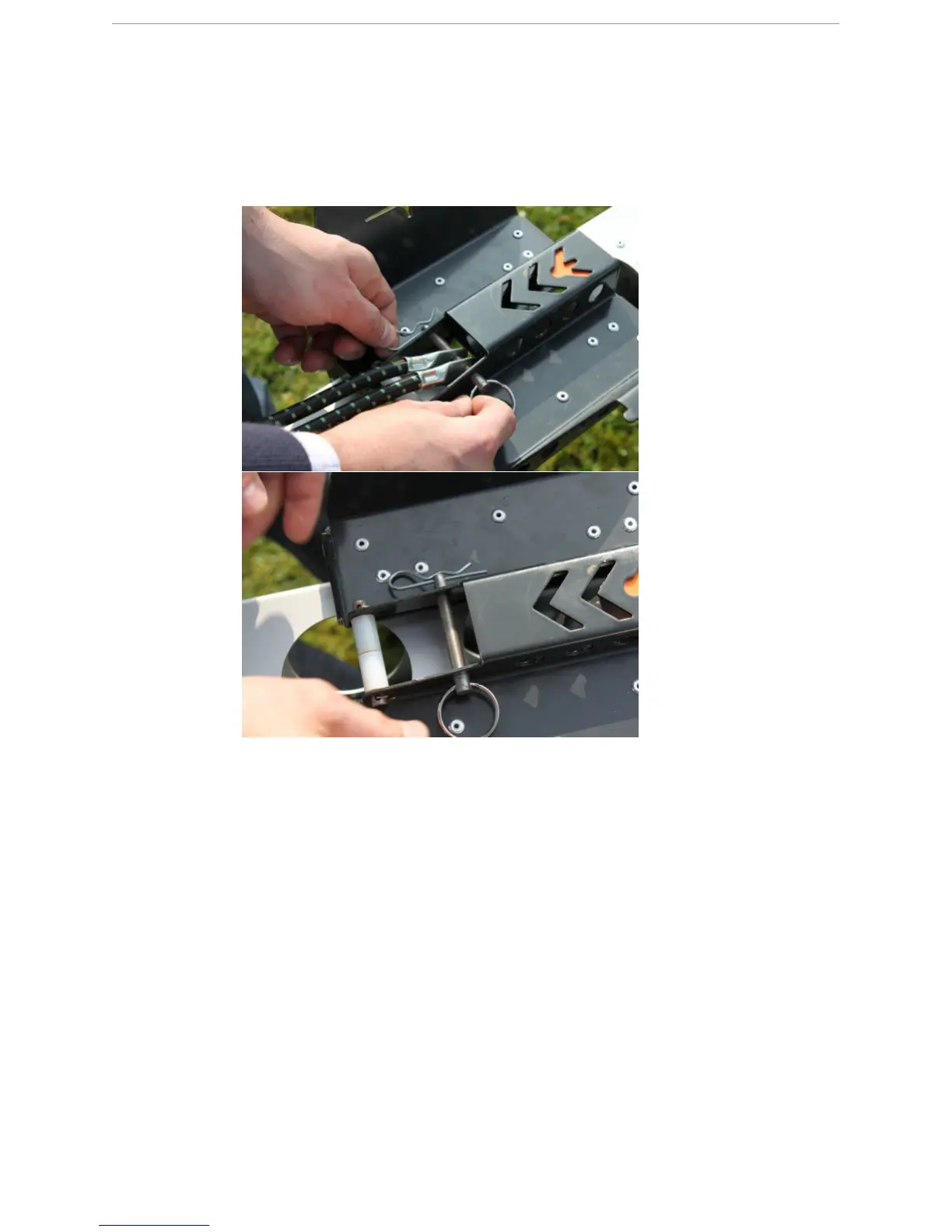

3 Remove the cables from the lock pin on the launch dock.

4 Tighten the launcher so that the launch cable is back in the launch slide but the end

remains out.
