2.0 — 30 — 12 October 2012
X100 parts
X100 body parts
Seal the payload bay with the top cover
P
REREQUISITES
● X100 body
● Top cover with plastic screw
● Flat-bladed screwdriver
1 Make sure no connectors or cables are hanging over the edge of the payload bay.
2 Place the top cover on the payload bay of the X100 body.

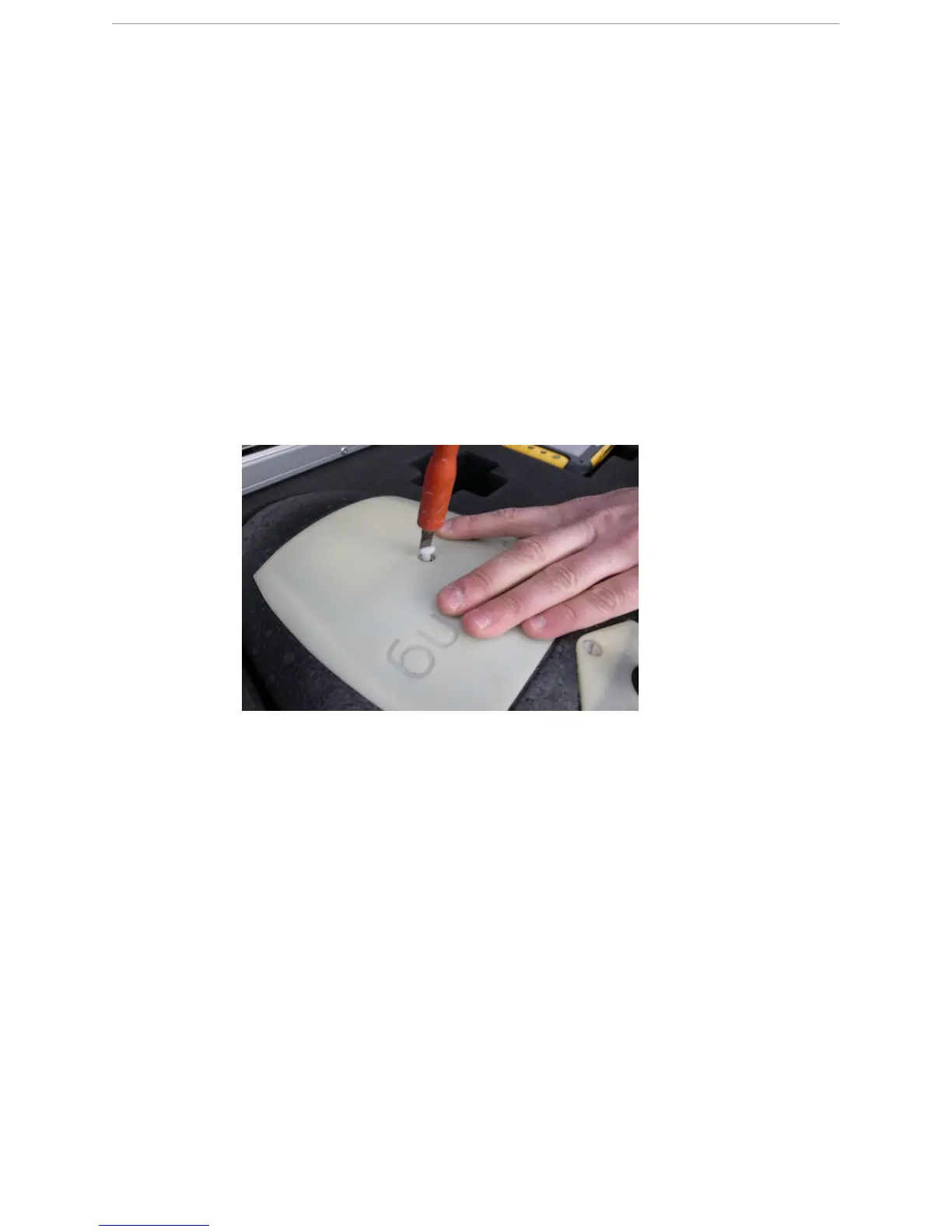

3 Using the flat-bladed screwdriver, secure the top cover with the plastic screw.
C
AUTION: Tighten it hand-tight, do not overstrain.
