Launcher

Disassemble the launcher

CAUTION: It is recommended that a second person connects the crank to the tightening

system so the forces can be released gently.

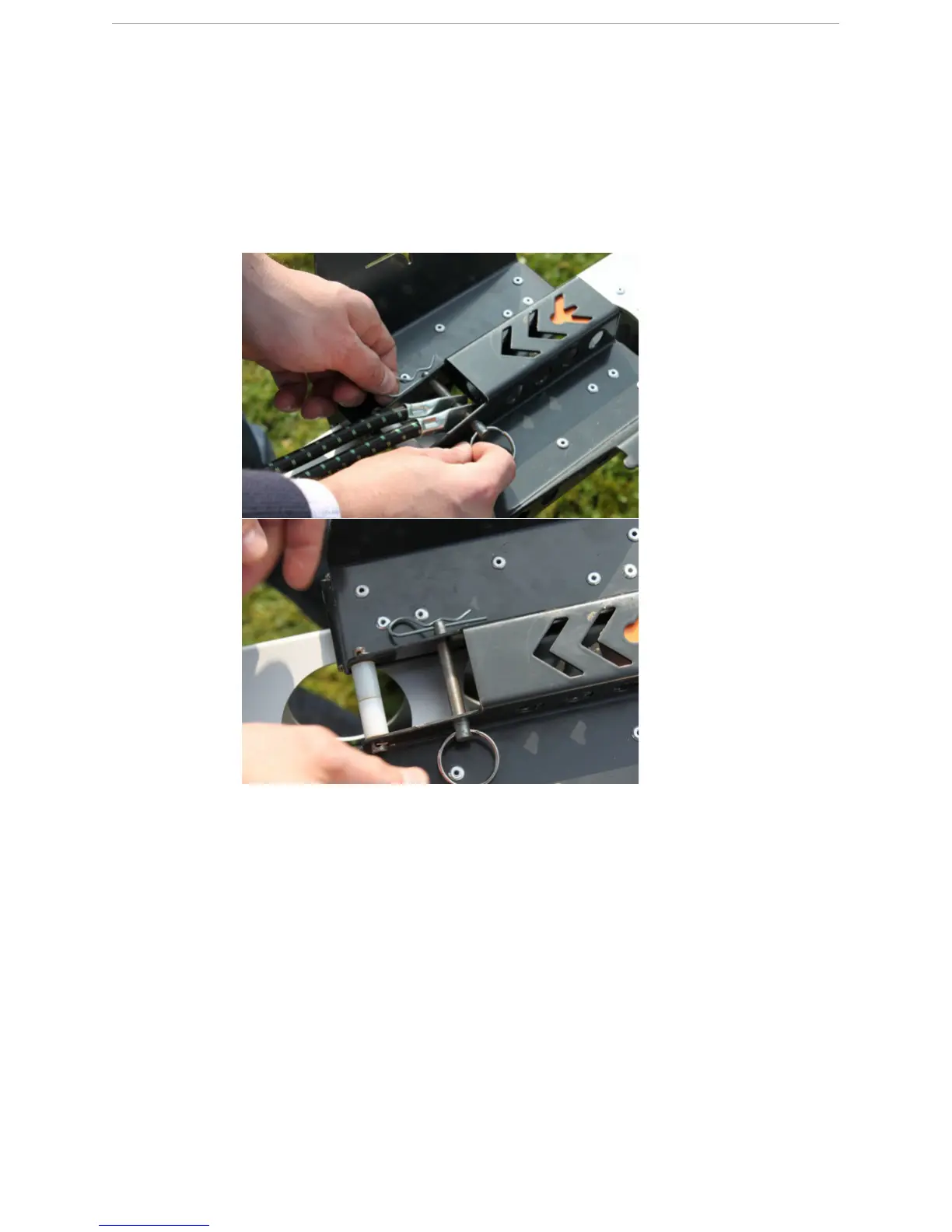

3 Remove the cables from the lock pin on the launch dock.

4 Tighten the launcher so that the launch cable is back in the launch slide but the end

remains out.
