Chapter 1. General Installation Instructions
6 AquaTrans™ AT600 User’s Manual
1.5 Installing the Electronics Enclosure (cont.)
The installation base of AT600 electronics enclosure can be rotated 90° to keep a horizontal view of the user

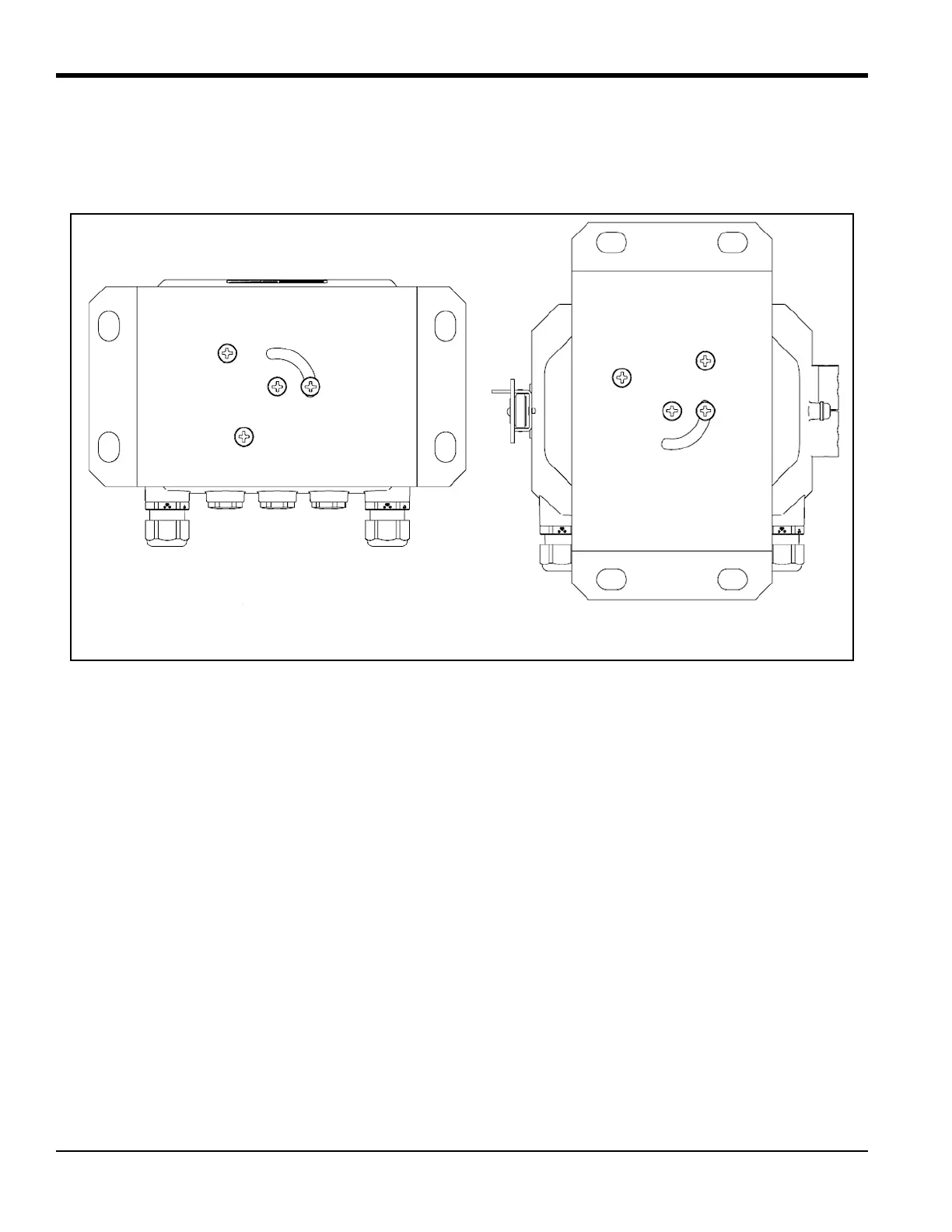

interface in any mounting orientation. See Figure 6 below for drawings of the AT600 mounting base.
Figure 6: The AT600 Mounting Base
1.6 Calculating the Transducer Spacing
Before installing the clamp-on fixture(s) and transducers, you must program the AT600 to calculate the
required transducer spacing for your planned installation. To accomplish this task, go to “Sensor Setup” on
page 66 and follow the instructions in that section. After obtaining the required transducer spacing value,
return here and continue to the next section.
