Concord 4 Series Systems 14
Hardwire Interior Speaker (60-528)

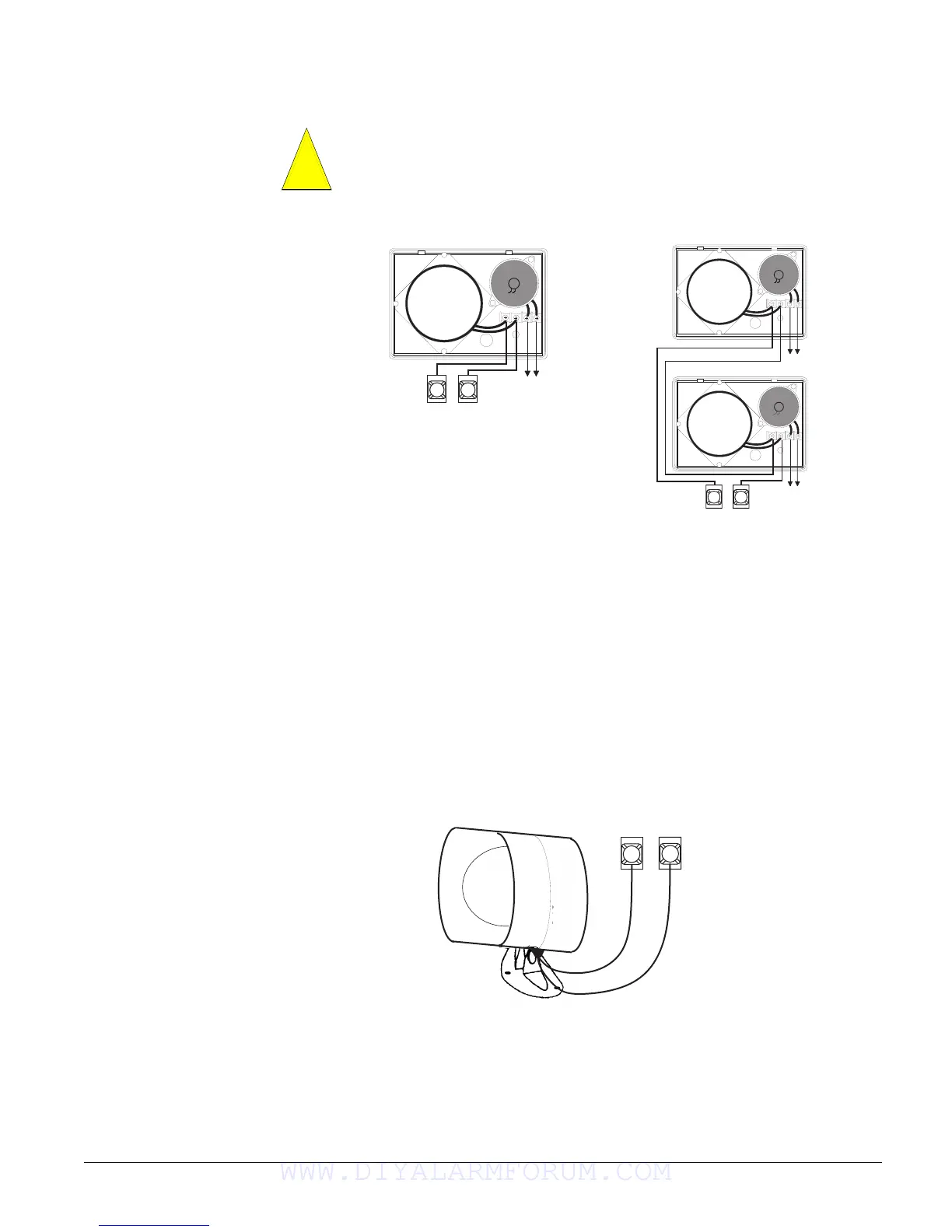

Connect interior speakers to the panel using 18-gauge wire as shown in Figure 10.
Figure 10. Connecting Hardwire Interior Speakers
Connecting Exterior/Interior Piezo Sirens
Output 1
Note
For 24-hour backup, exter-
nal power drain is limited to
90 mA (during normal
standy condition), using a
4.5 Ah battery, or 190 mA
continuous using a 7.0 Ah
battery.
Onboard output 1 (OUT 1—terminal 9) is a 9 to 14 VDC switched, programmable output that
can handle a maximum of 1,000 mA current. The default setting (01614) activates the output 30
seconds after a police or fire alarm condition occurs. This allows you to connect a piezo siren
without changing the output configuration number in programming. This output is typically used
for exterior siren applications. (For more information on output configuration numbers, see
“Onboard Options Menu”.)
Piezo Dynamic Exterior Siren (13-950)
Note
This siren is not UL approved for use as an outdoor sounding device.
Connect the siren to panel as shown in Figure 11.
Figure 11. Connecting Exterior Sirens
Connect only the large speaker to the panel terminals 7 and 8 as shown. The smaller
speaker cannot handle to output of terminals 7 and 8. To avoid damaging the speaker,
the smaller speaker should not be connected to terminals 7 and 8.
Caution
!
87
Speaker
Not Used
Panel
Terminals
Not Used
Not Used
Speaker
Panel
Terminals
78
9
O U T 1
1 3
G N D
Red
Panel
Terminals
Black
