Concord 4 Series Systems 20
Connect all necessary output wiring using the Installation Instructions included with the module.
Figure 22. Wiring Input and Output Modules to the Panel
SuperBus 2000 Cellular Backup Module
Connect the SuperBus 2000 Cellular Backup Module to the SuperBus 2000 2 Amp Power Sup-
ply and panel as shown in Figure 23.

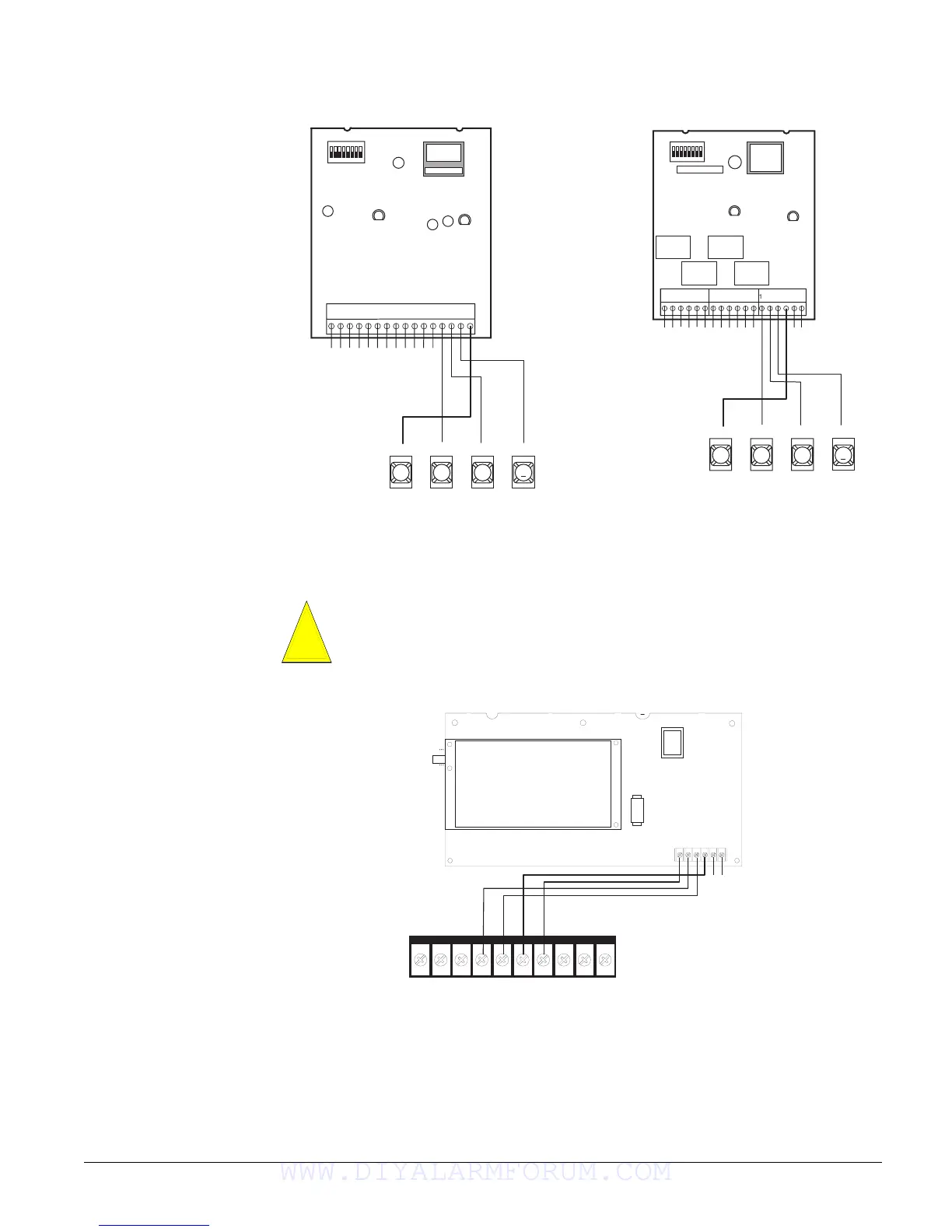

Figure 23. Wiring the Cellular Backup Module to the Panel
Input
Output
1 2 3 4 5 6 7 8 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6
Z O N E C O M M O N
Z O N E 1
Z O N E 2
Z O N E 3
Z O N E 4
Z O N E 5
Z O N E C O M M O N
Z O N E C O M M O N
Z O N E 6
Z O N E 7
Z O N E C O M M O N
Z O N E 8
I D : X X X X X X X X
3 4 5 6
+ 1 2 V
A B U S B
G N D
1 2 3 4 5 6 7 8 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7
N O 1
N C 1
C O M 1
1 8
Z O N E 1
N O 2
N C 2
C O M 2
N O 3
N C 3
C O M 3
N O 4
N C 4
C O M 4
Z O N E C O M
I D : X X X X X X X X
3 4 5 6
+ 1 2 V
A B U S B
G N D
Caution
!
Since the SuperBus 2000 Cellular Backup Module draws more than 1 amp, it must be
powered by the SuperBus 2000 2 Amp Power Supply and not the panel.
1 2 3 4 5 6
Z C O M
Z O N E 1
2 4 V A C
2 4 V A C + 1 2 V
B U S A B U S B
G N D
+ 1 2 V
O U T
Z O N EG N D G N D
SuperBus 2000
2 Amp Power
Supply Terminals
WWW.DIYALARMFORUM.COM
To Next Page
