Concord 4 Series Systems 16
Connecting SuperBus 2000 Touchpads
SuperBus 2000 touchpads may have wires or screw terminals. All use the same wiring scheme
for power and bus connections. Connect touchpads to the as shown in Figure 14.

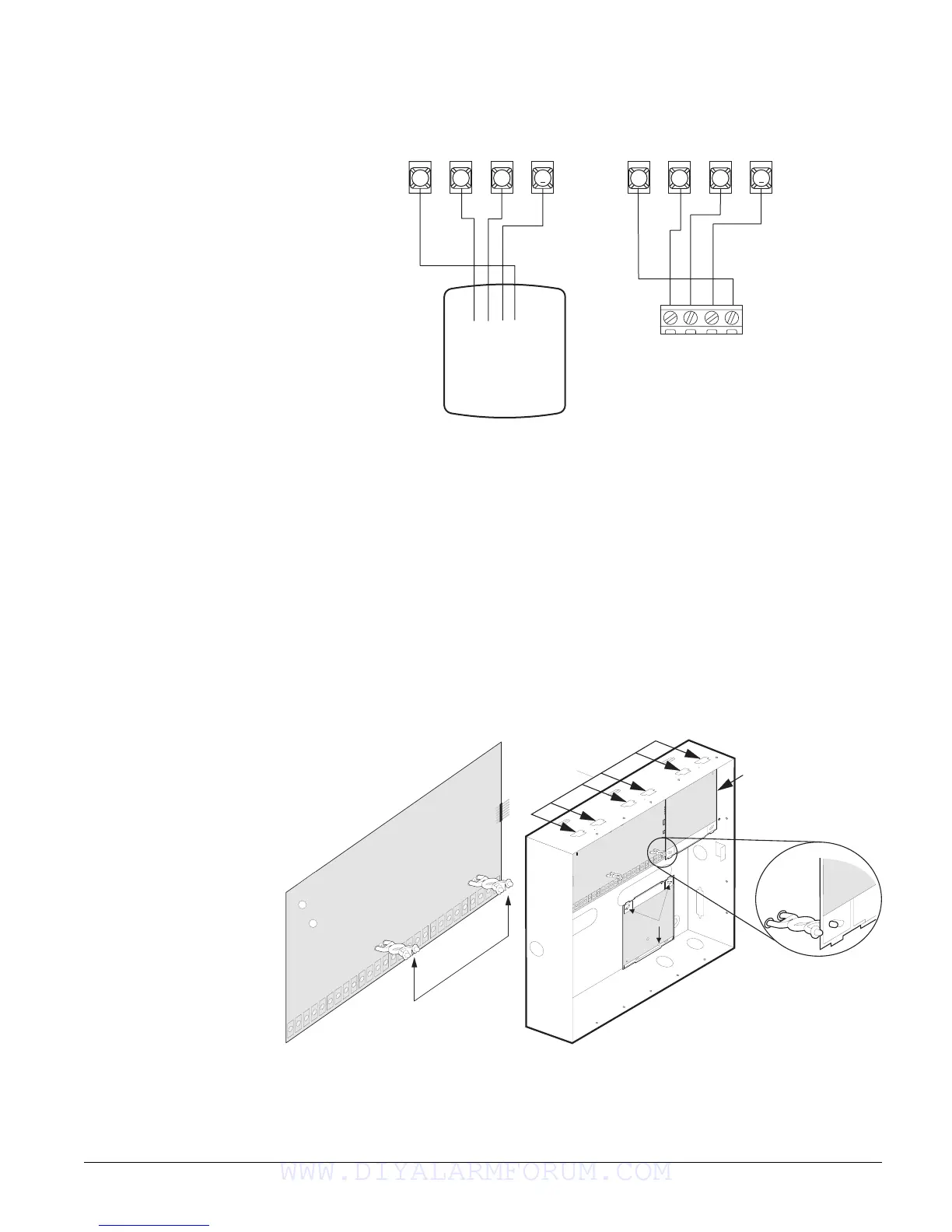

Figure 14. Connecting Touchpads to the Panel
Installing SuperBus 2000 Modules
SuperBus 2000 modules can be installed inside the panel cabinet or away from the panel with
their included enclosure.
Mounting Modules Inside the Panel Enclosure
Use the following guidelines when mounting modules inside the panel enclosure (see Figure 15):
• Up to 4 of the SuperBus 2000 modules listed in Table 1 can be mounted inside the cabinet.
• The 2 Amp Power Supply and Phone Interface/Voice Module each use two mounting spaces
when mounted inside the panel enclosure.
• The panel includes two support standoffs you install to secure module backplates to the
panel.
Note
Even if you don’t plan to
mount modules inside the
cabinet, install the support
standoffs for future use and
to avoid losing them.
• Install the standoffs at the locations shown.
• The cabinet has built-in mounting clips on the top and sides that module backplates slide
onto for mounting.
Figure 15. Installing SuperBus 2000 Modules
3 4 5
6
+ 1 2 V
A B U S B
G N D
3 4 5
6
+ 1 2 V
A
B
G N D
B U S
+ 1 2 V
A
B
G N D /
C O M
Touchpads
+12V—Red
Bus A—Green
Bus B—White or Yellow
GND—Black
Panel
Terminals
with Wires
Touchpads
with Terminals
Support
Standoffs
Top
Mounting
Clips (6)
Side
Mounting
Clip
Screws
