6. After programming is completed, simply disconnect the touchpad from the panel header.

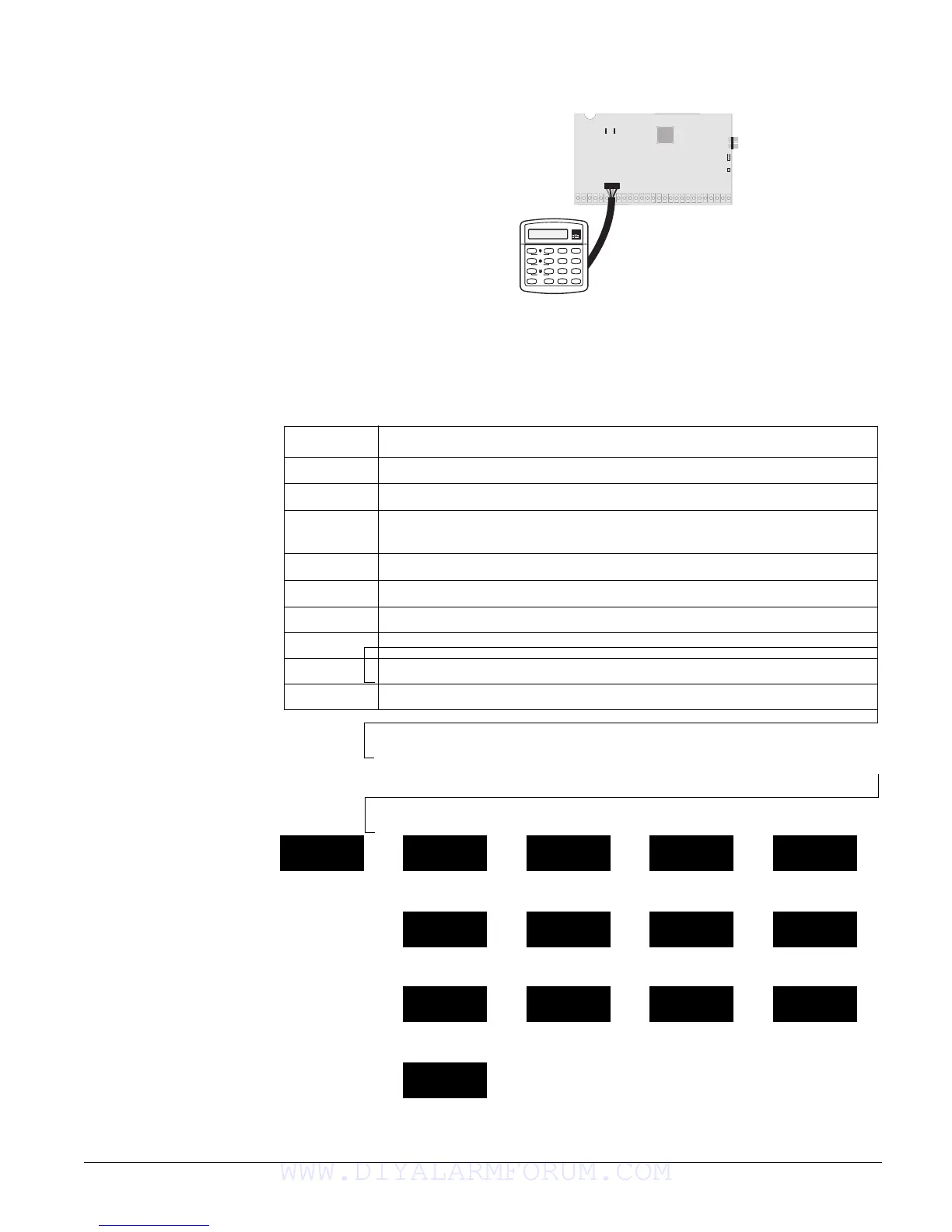

Figure 28. Connecting a Programming Touchpad
Touchpad Button Programming Functions
In program mode, touchpad buttons let you navigate to all installer programming menus for con-
figuring the system. Table 5 describes the touchpad button functions in program mode.
Moving Through Program Mode Tiers and Menus
There are two basic tiers of programming menus (see Figure 29).
Tier 1 Menus Tier 2 Menus
Figure 29. Tier 1 and Tier 2 Program Menus
Table 5: Touchpad Button Functions
Button Programming Function
#
Selects menu item or data entry.
*
Deselects menu item or data entry (if pressed before #).
A ()
B ()
Scroll through available options at the current menu tier. Also scroll through sen-
sor text options during sensor text programming.
C
Enters pauses when programming phone numbers.
D
Deletes certain programmed settings.
0 thru 9
Enter numeric values wherever needed.
1 & 2
Select off (1) or on (2) wherever needed.
1 thru 6
Press and hold to enter alphabetical characters A thru F for account numbers.
7 & 9
Press and hold to enter * (7) or # (9) for phone numbers.
SYSTEM PRO-
GRAMMING
#
·
SECURITY
B
A
PHONES
B
A
PHONE
OPTIONS
B
A
TIMERS
B
A
B A # · # · # · # ·
B
A
LIGHT
CONTROL
B
A
TOUCHPAD
OPTIONS
B
A
REPORTING
B
A
SIREN
OPTIONS
B
A
# · # · # · # ·
B
A
SENSORS
B
A
AUDIO
VERIFICATION
B
A
ACCESSORY
MODULES
B
A
ONBOARD
OPTIONS
B
A
# · # · # · # ·
B
A
MACRO KEYS
6 0 7 3 4 G 3 0 8 D . D S F
S t a t u s
F e a t u r e s
p r e s s b o t h
L ig h t s
S y s te m
A w a y
P a g e r
O f f
N o D e la y
p r e s s b o t h
p r e s s b o t h
T e s t S y s te m W e e k ly
S i l e n t
S t a y
D
*
7
0 #
8
B
A
4
1
5
6
2
3
B y p a s s
M e n u
C
9
Programming
Touchpad
Cable (60-791)
