Concord 4 Series Systems
15
Output 2
Onboard output 2 (OUT 2—terminal 10) is an open-collector (switched path-to-ground), pro-
grammable output that can handle a maximum of 300 mA current sink and up to 14 VDC. The
default setting (01710) activates the output for status and alarm tones, allowing for a piezo siren
connection without changing the output configuration number. This output is typically used for
interior siren applications. (For more information on output configuration numbers, see
“Onboard Options Menu”.)
Hardwire Interior Siren (13-949)
This siren has two inputs; steady (#1) and warble (#2). Use the steady (#1) terminal for Concord
4 panels. The siren also includes a cover tamper switch that can be connected to a hardwire zone
input on the panel, SnapCard or SuperBus 2000 Hardwire Input Module. Connect the siren to the
panel/zone input terminals as shown in Figure 12.

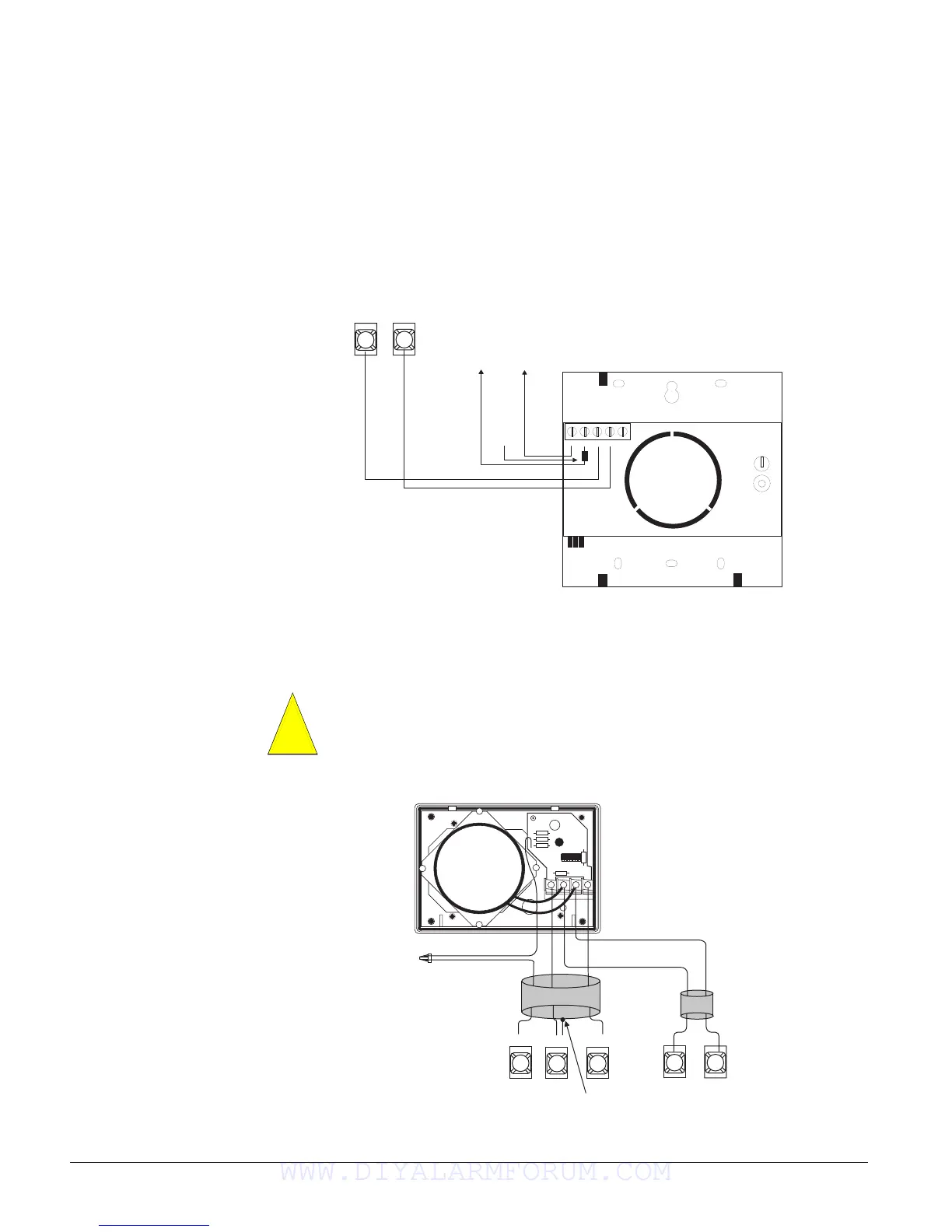

Figure 12. Connecting Exterior and Interior Sirens
Connecting an Interrogator 200 Audio Verification Module (60-677)
Connect the Interrogator 200 Audio Verification Module (AVM) to the panel terminals as shown
in Figure 13. Partition 1 use only.
Figure 13. Connecting an Interrogator 200 AVM
S W
S W
G N D
# 1
# 2
1 0
O U T 2
1 1
+ 1 2 V
Panel
2k Ohm
Resistor
49-454
Terminals
To Zone Input
If a speaker is already connected to panel terminals 7 and 8, the Interrogator 200
speaker must be hooked up in series with that speaker to provide a 16-ohm load. Hook-
ing up speakers in parallel to panel terminals 7 and 8 creates a 4-ohm load that can
cause permanent damage to the panel.
Caution
!
7 8
S P E A K E R
1 3 1 1
G N D
+ 1 2 V
1 2
M I C
Panel Terminals
Yellow
Splice
Cable Shield
Speaker
Microphone
Cable
Cable
