GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

5-86 Section 5-11 - Common Service Desktop (R3 only)

Third Party Software Licenses

Third Party Software Licenses displays the third-party software licenses used as part of the service

platform.

The information on Third Party Software Licenses is available to all service class licenses.

To access Third Party Software Licenses, select Utility (second page) > Service > Utilities > Third

Party Software Licenses.

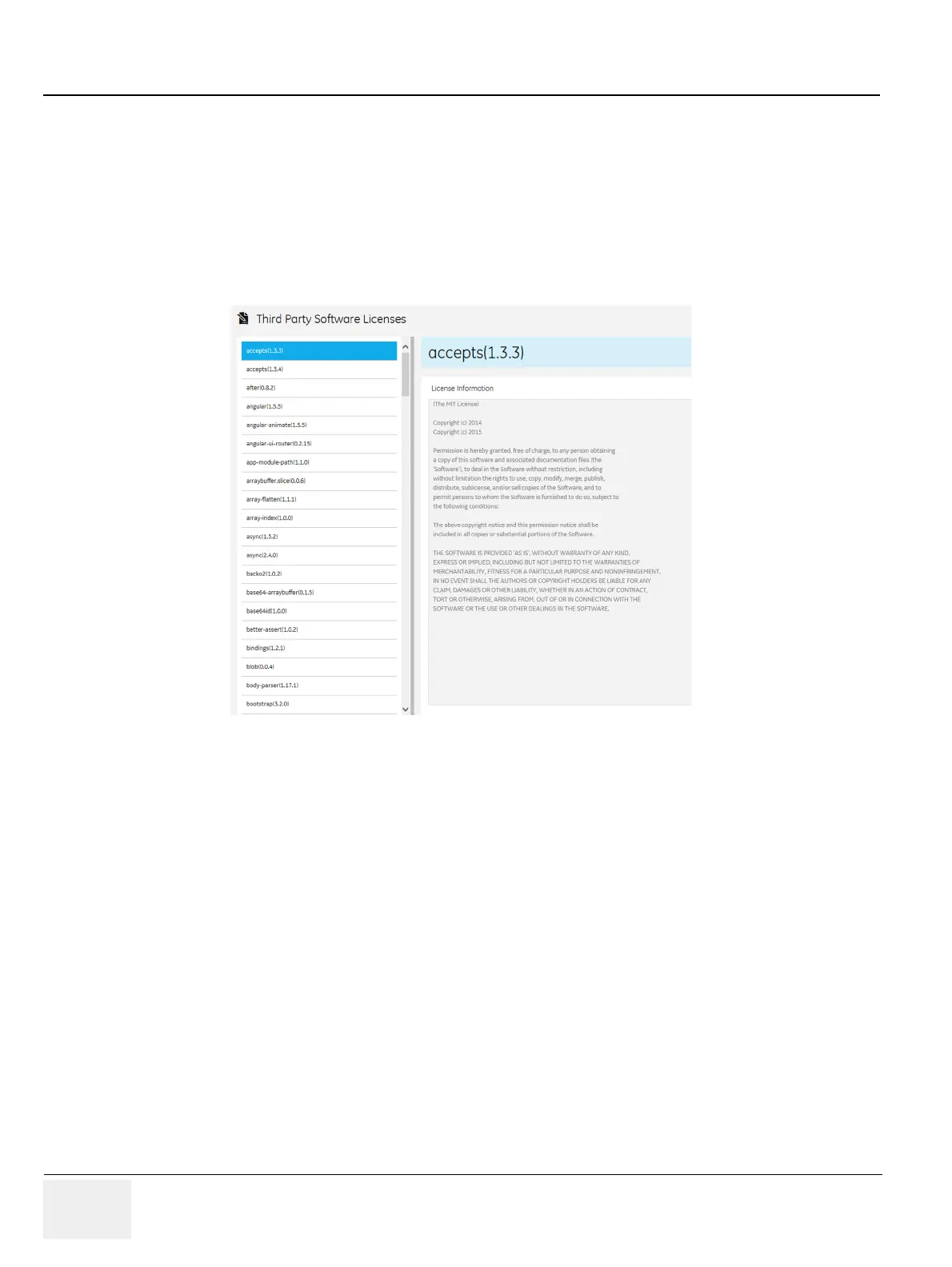

Figure 5-58 Third Party Software Licenses

For more information, see:

• Utilities on page 5-73
