- All – Apply rule regardless of source address. (The example above uses this
configuration.)
- Address - Apply rule to a specific source address and prefix.
- Address Range – Apply rule to a range of source addresses.
- Address Set – Apply rule to a non-contiguous set of source addresses.
- Not Address - Apply rule to traffic that does not originate from a specific address and
prefix.
- Not Address Range – Apply rule to traffic that does not originate from a specific source
address range.
- Not Address Set – Apply rule to traffic that does not originate from a non-contiguous set
of source addresses.
Destination IP – Apply rule to traffic that ingresses the unit at a specific address or addresses.
Mode – Options:
- All – Apply rule regardless of destination address.
- Address - Apply rule to a specific destination address and prefix.(In the example above,
this is 10.150.1.1/32.)
- Address Range – Apply rule to a range of destination addresses.
- Address Set – Apply rule to a non-contiguous set of destination addresses.
- Not Address - Apply rule to traffic that does not ingress at a specific address and prefix.
- Not Address Range – Apply rule to traffic that does not ingress at a specific destination
address range.
- Not Address Set – Apply rule to traffic that does not ingress at a non-contiguous set of
destination addresses.
Incoming Port – Apply rule to a pre-translated ingress port. In the example above, this is 5512.
Forward to IP – The IP address to which traffic matching this rule should be forwarded. In the
example above, this is 192.168.1.1.
Forward to Port – The port to which traffic matching this rule should be forwarded. In the example
above, this is 512.
The example above can be configured with a single rule. Once all selections are complete, click Next to
continue.

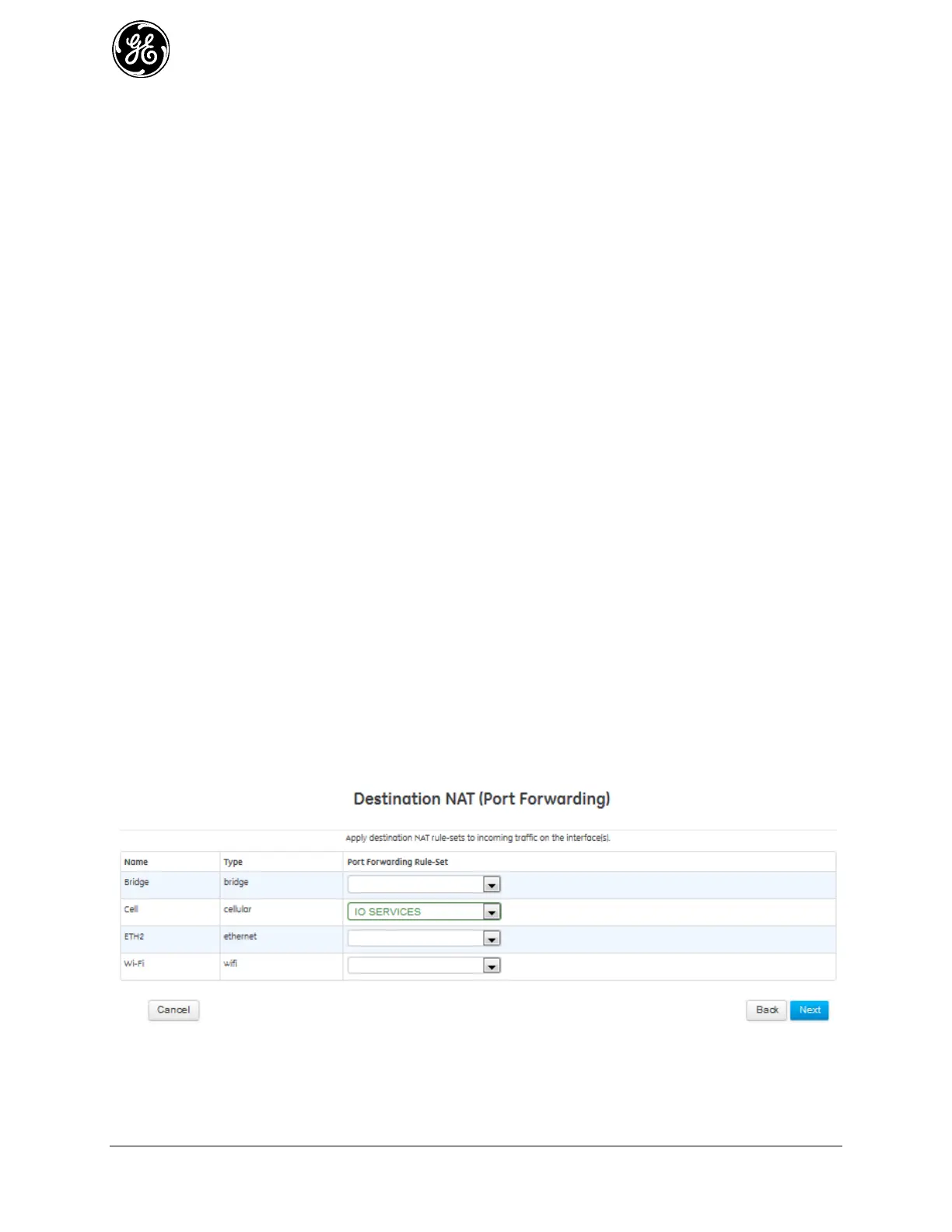

Figure 3-160. Interface Selection menu
The Interface Selection menu allows the created rule set to be applied to one or more interfaces. To do so,
click the dropdown box next to the desired interface and select the rule set name. In the example above,
the new rule set should be applied to the cellular interface. Click Next to continue.
