- Any – Match any match rule if there is more than one match rule in the classifier.
 Match – The list of match rules that govern the classifier.
 Metric – 1-20. Classifiers with a lower metric value are evaluated first. This means that if traffic
matches more than one classifier, the classifier with the lowest metric is the one that is applied.
Click the Add button under the Match submenu to add a match rule.

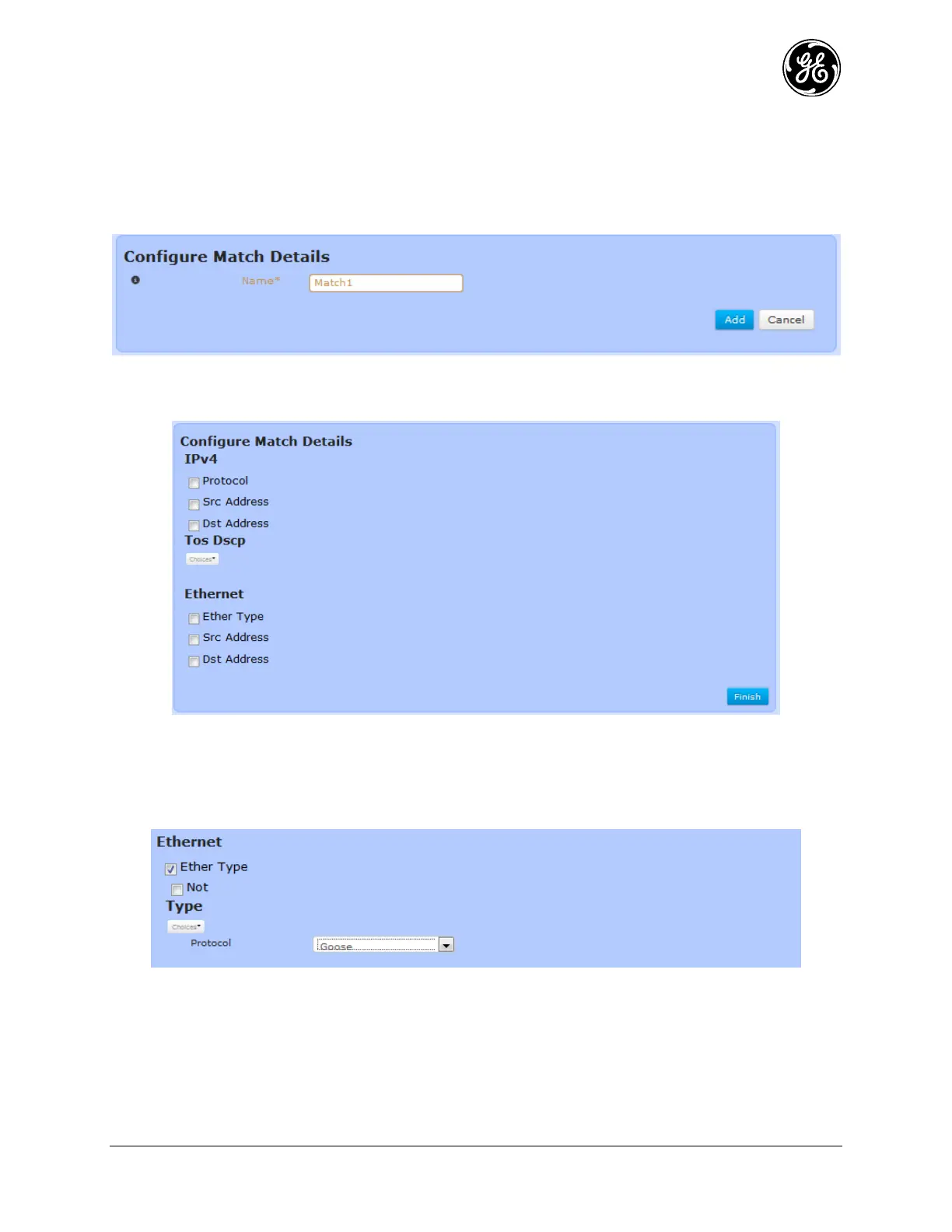

Figure 3-214. Adding a new match rule
First, give the new match rule a name and click the Add button.
Figure 3-215. Match Menu
A match rule can be created to classify on either IPv4 or Ethernet. In this example, we use ether type to
classify GOOSE messages.
To classify based on ether type, click the check box to the left of Ether Type.
Figure 3-216. Ether type classification menu
The following options are available on the Ether Type menu.
 Not – This menu is used to create a rule that matches packets that do not match a specific ether-type.
 Type – Protocol, Custom.
- Protocol – Any, Arp, Goose, Gse, Ieee1588, IPv4, IPv6, Ipx, Mpls-multicast, Mpls-unicast,
Pppoe-discovery, Pppoe-session, Profinet, Provider-bridging, Q-in-q, Rarp, Vlan.
