Multipoint-to-Point
Multicast Group Address/Port
Peer Unicast Address/Port
Multipoint-to-Multipoint
Multicast Group Address/Port
Multicast Group Address/Port
NOTE Once a terminal-server is enabled on a COM port, the port stays in data mode and the CLI will
not be available on that port. To break out of data mode, the escape sequence +++ can be
entered on the PC’s keyboard. The baud rate and format must match on the PC and on the unit
for the escape sequence to be detected. Once the sequence is detected, the login prompt is
presented as long as the port is enabled for console access.
Basic Setup of UDP Terminal Server
Configuring
The following shows how to enable a UDP terminal server on COM1. Navigate to Serial ---> Basic
Config / Terminal Server

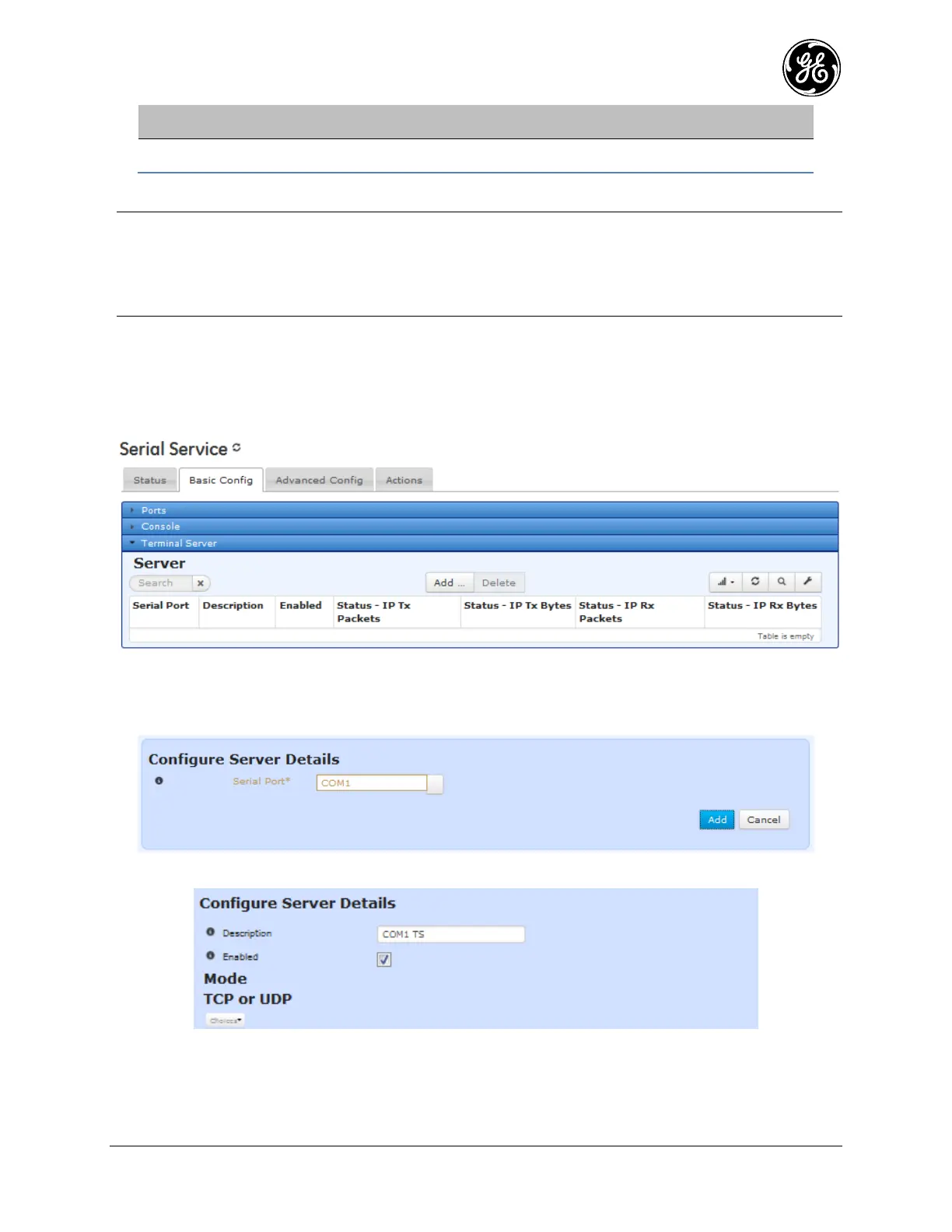

Figure 3-182. Terminal Server Start Screen
Click on Add and select the serial port for use by typing in COM1 or select after clicking on the button to
the right of the field. Then, after selecting the COM port, click the Add button.
Figure 3-183. Terminal Add Screen
Figure 3-184. Terminal Server Setup Screen
 Description – A user-defined string describing the terminal server.- blank by default
 Enabled -– Check box to allow for enabling/disabling the server
 Mode - Further detailed configuration information
