22 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F
 Quality of Service (QoS)
- Priority Queues
- Source/Destination port and addresses
- Protocol (UDP, TCP, etc.)
2.4 Typical Applications
The unit provides flexibility in network communications and may be used in a wide variety of
applications. In one common scenario, it provides cellular connectivity to locally-connected devices that
are located on a local/internal/private LAN or WiFi network. The unit acts as an Access Point on the WiFi
interface to provide connectivity to WiFi clients. Figure 2-1 shows an example network in which the unit
provides connectivity to multiple end devices. The end devices are connected via Ethernet, serial and
WiFi links.

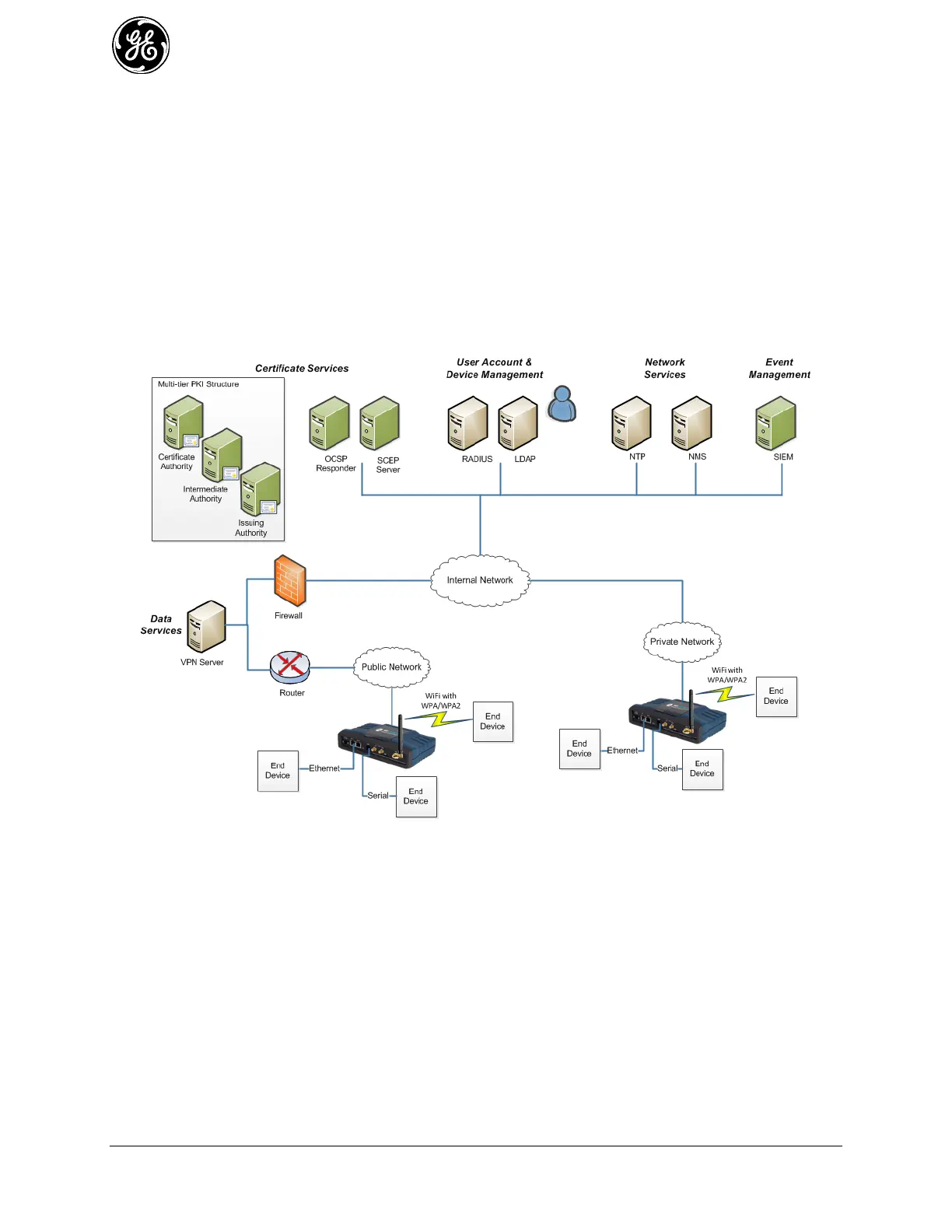

Figure 2-1. Typical MCR Application
2.5 MCR and ECR Connectors and Indicators
Figure 2-2 shows the unit’s front panel connectors and indicators. These items are referenced in the text
that follows. The unit’s LED Indicator Panel is described in Table 2-5.
.
