MDS 05-6632A01, Rev. F MDS Orbit MCR/ECR Technical Manual 29
attached to the screw provided on the bottom corner of the enclosure, in the recessed flat area.
Alternatively, a safety ground wire may be attached to one of the mounting bracket screws.
The use of a lightning protector is recommended where the antenna cable enters the building; Bond the
protector to the tower ground, if possible. All grounds and cabling must comply with applicable codes
and regulations. One source for lightning protection products may be found online at
http://www.protectiongroup.com/PolyPhaser.
2.7 Mounting Options
The unit may be mounted with flat mounting brackets or an optional 35 mm DIN rail attachment. Figure
2-7 shows the mounting dimensions for a unit equipped with flat mounting brackets.

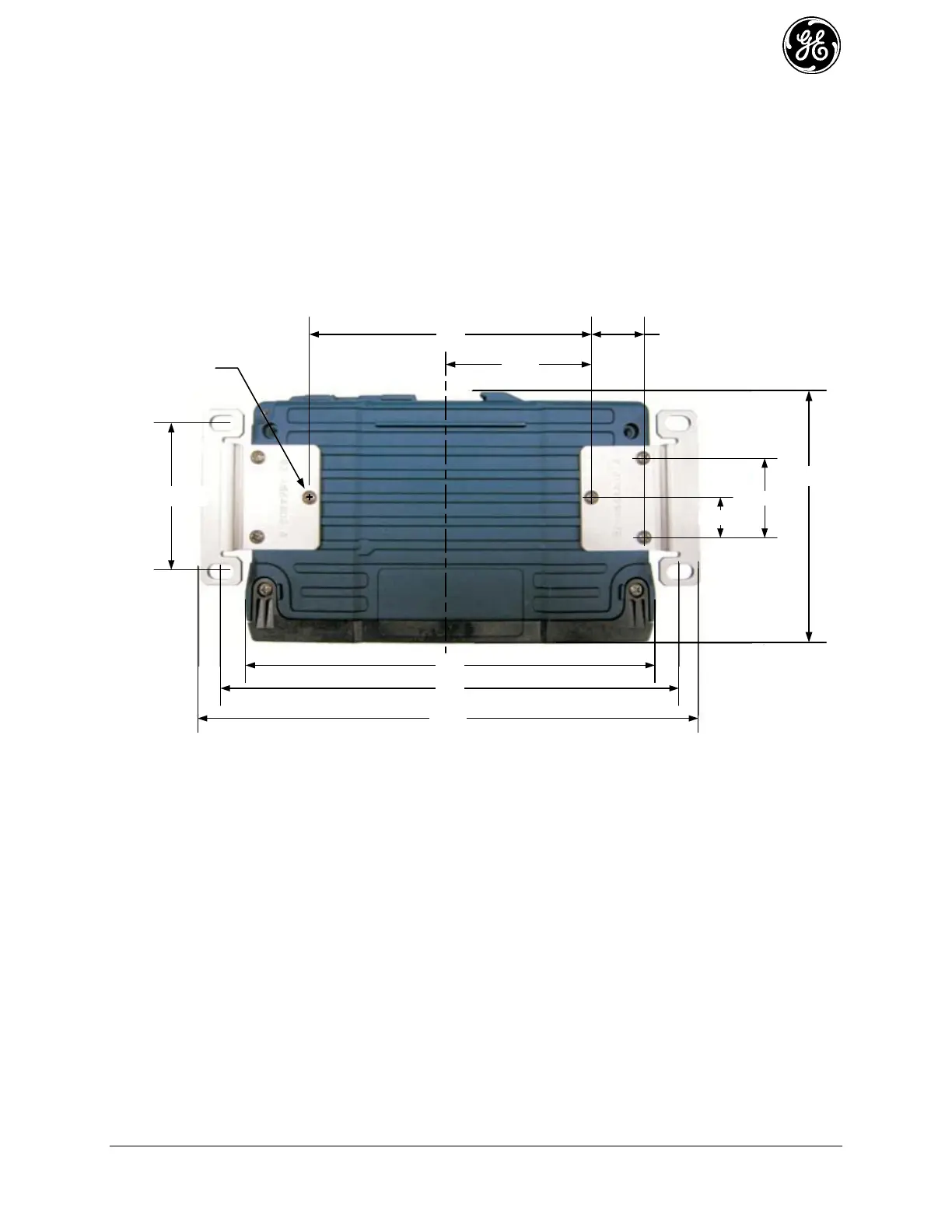

Figure 2-7. MCR Flat Mounting Bracket Dimensions
5.3" 1.0" (2X)
.75" (2X)
6-32 Screw (6X)
Tap in Enclosure
2.75" (2X)
4.81"
9.25"
8.5"
1.5" (2X)
Figure 7 . Flat Mounting Bracket Dimensions
8.0"
2.65"
