270 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F
- Click Choices
- Click Udp
- Click Udp check box

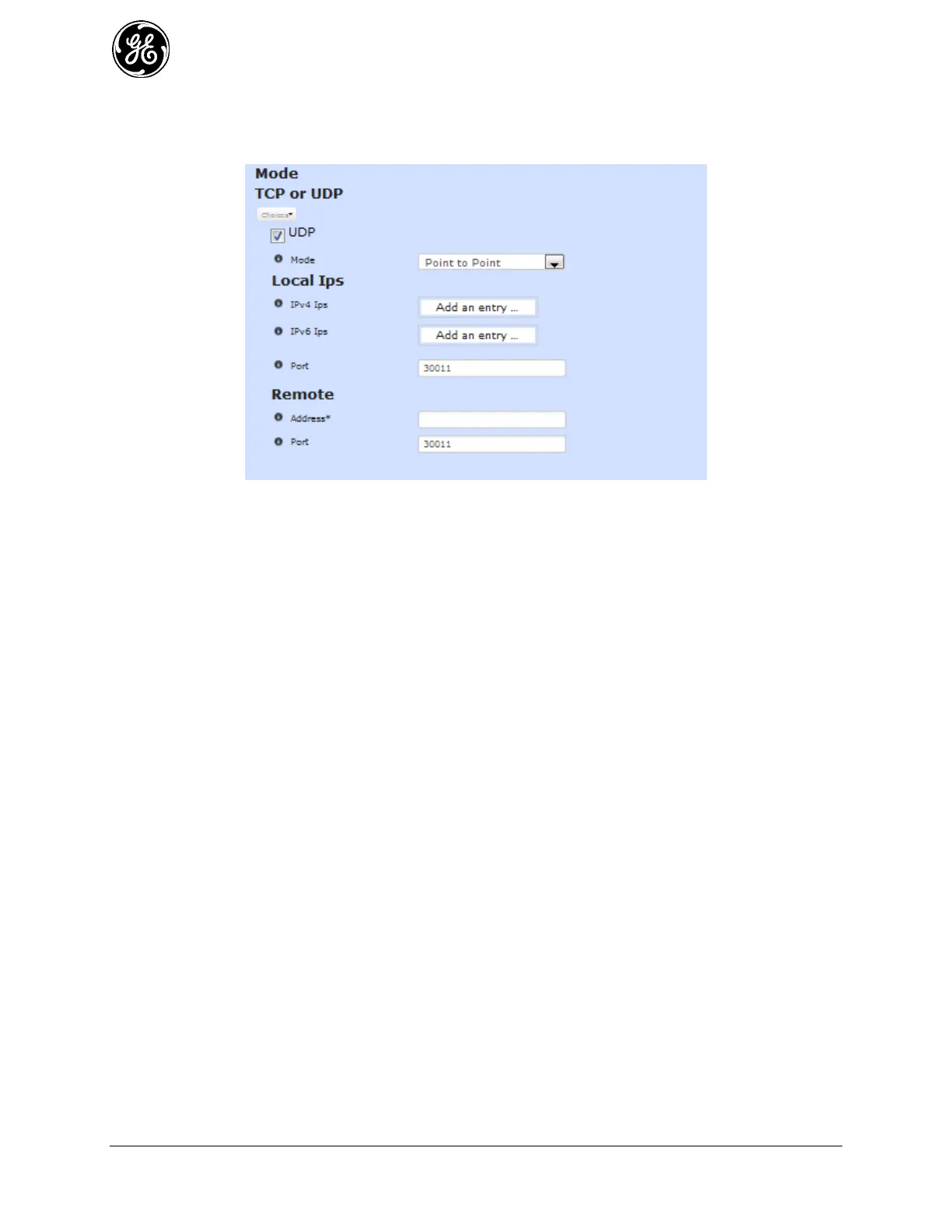

Figure 3-185. UDP Terminal Server Configuration Screen
UDP
 Mode – Mode of terminal server
- Point to Point (DEFAULT)
- Point to Multipoint
- Multipoint to Point
- Multipoint to Multipoint
Local IPS
 Ipv4 IPS - Configure to IPv4 address or leave blank for all
 Ipv6 IPS - Configure to IPv6 address or leave blank for all
 Port - The local port of the server 0-65535 (30011 - DEFAULT)
Remote
 Address – The IPv4/IPv6 address
 Port – The UDP port used when sending serial data to the remote address (30011 - DEFAULT)
When selecting one of the Multicast options:
