266 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F
The Leases submenu located under the Status tab shows the DHCP leases currently assigned by the
device.
IPv4 Subnets
To add an IPv4 subnet, click the Add button in the V4 Subnet section.

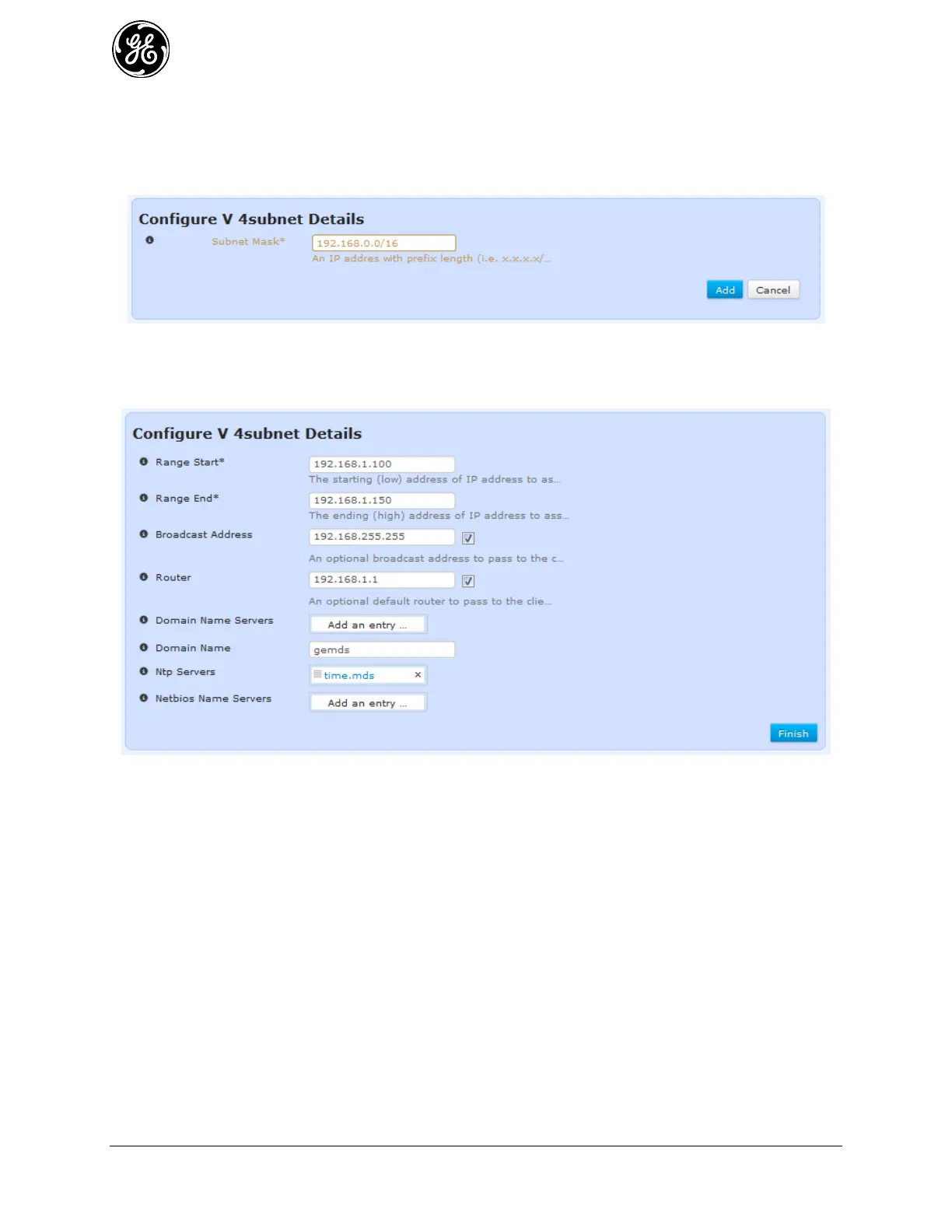

Figure 3-178. Adding a new DHCP IPv4 subnet
Enter the subnet's IPv4 address and prefix and click Add. A menu appears to configure DHCP options for
the subnet.
Figure 3-179. Configuration options for an IPv4 subnet
The following configuration options are required.
 Range Start – The start of the range of IP addresses to be assigned.
 Range End – The last of the range of IP addresses to be assigned.
The following configuration options are optional.
 Broadcast Address – Address that clients should use for broadcast messages.
 Router – The IP address that the client should use as its default gateway. This may be the unit’s
address.
 Domain Name Servers – A list of DNS (Domain Name Servers) that clients should use to resolve
domain names.
 Domain Name – Domain name to pass to clients.
 NTP Server – A list of NTP (Network Time Protocol) servers to pass to clients. Domain names or
IP addresses may be used. Entries must be separated by spaces.
