Chapter 5 Detailed Descriptions of I/O Modules
GFK-2958E RSTi-EP User Manual 139
5.10 Digital Output Module EP-2218

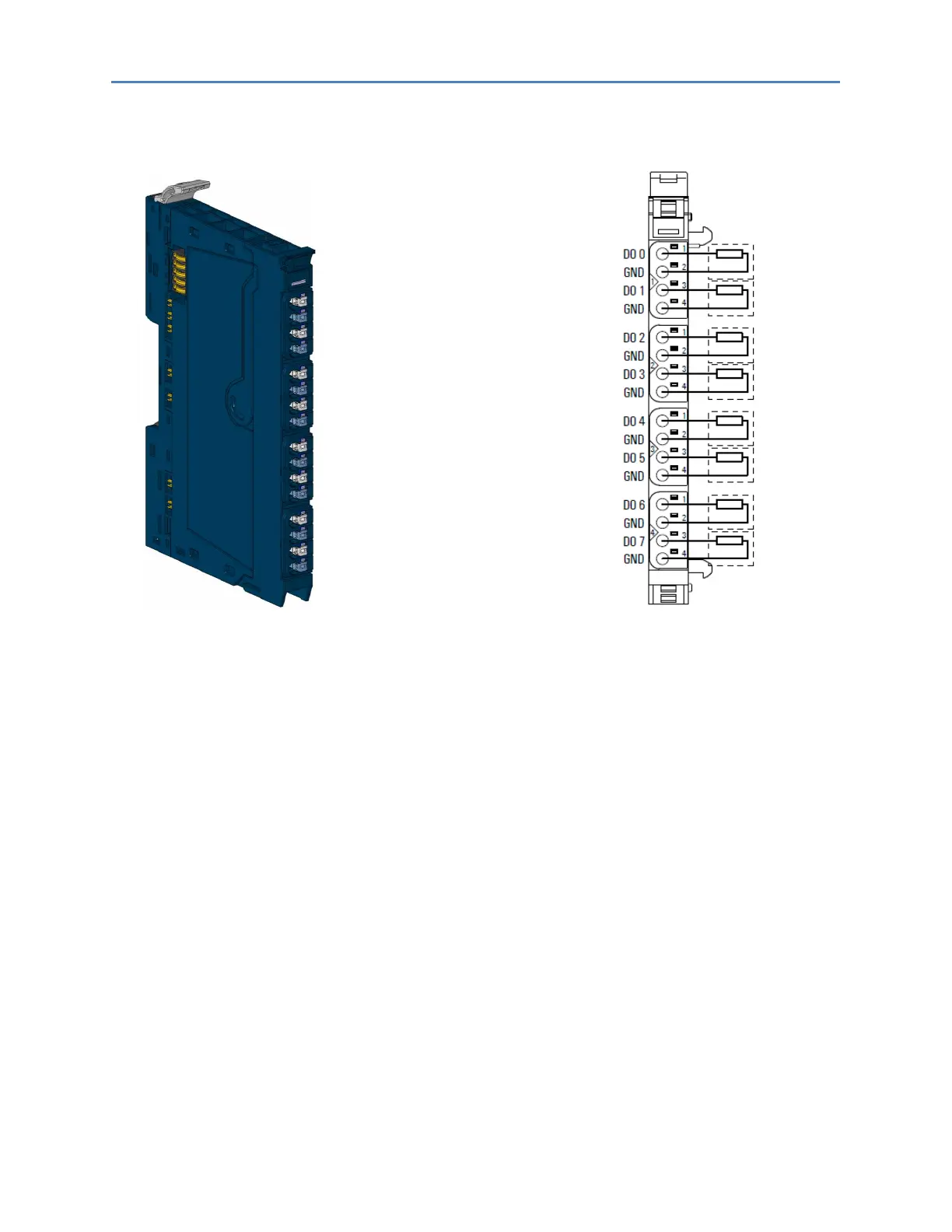

Digital Output Module EP-2218 Connection Diagram EP-2218
The EP-2218 digital output module can control up to 8 discrete outputs, each with a maximum of
0.5A. Discrete outputs can be connected to each connector in a 2-wire connection. A status LED is
assigned to each channel. The outputs are supplied with power from the output current path (I
OUT
).
