GFK-2958E RSTi-EP User Manual 370
9.6.3 Accessing Network Adapter Parameters

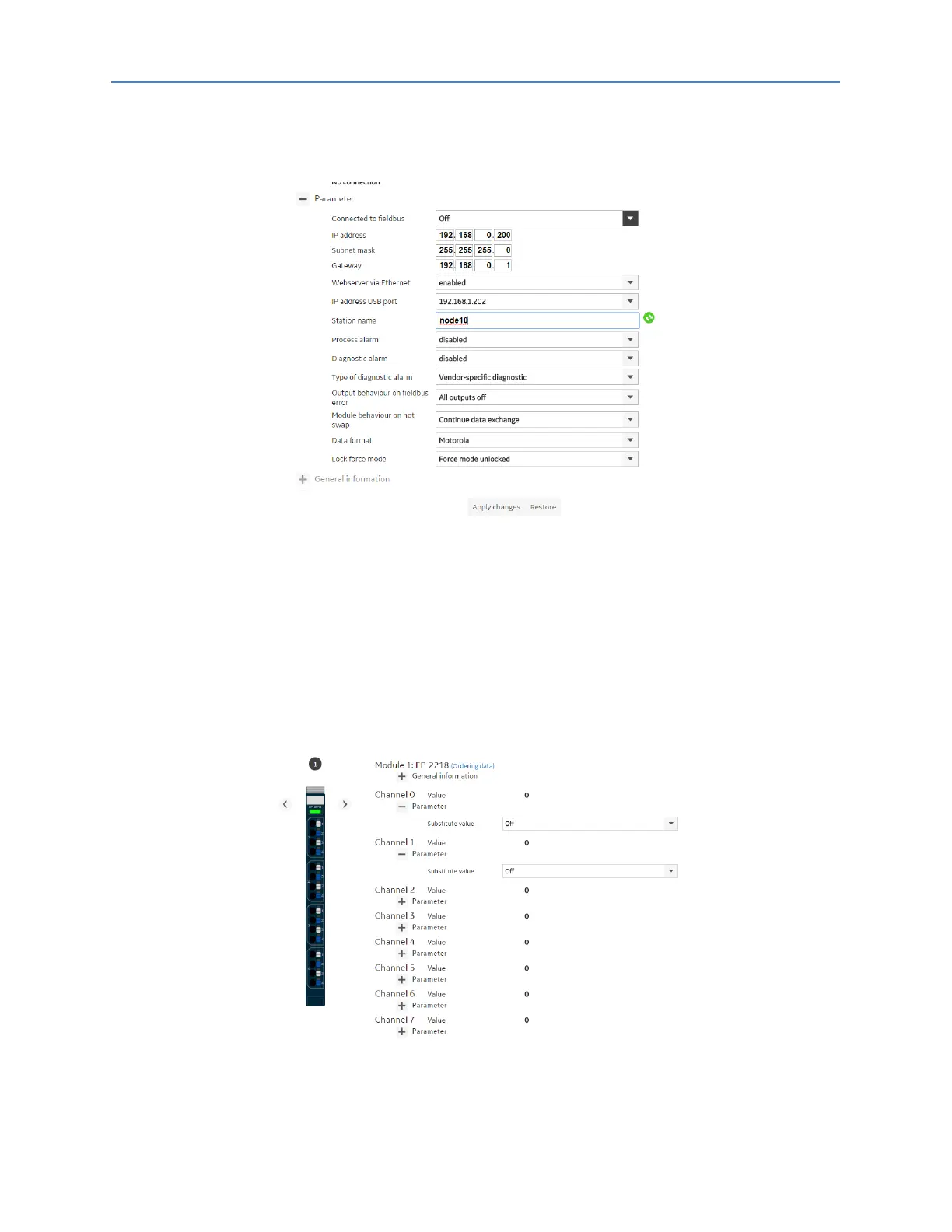

➢ To access network adapter parameters: Navigate to the Network Adapter Status dialog
box and click Parameters. All the parameters are then listed in a new window.
For parameters that can be edited, enter the changes in the entry fields or select alternative settings
from a dropdown menu.
9.7 Displaying Module Data and Editing Parameters
Note: These functions are only accessible when Force mode is not activated.
Note: Parameters can only be written when the field bus is not active.
➢ To display module data and edit parameters
1. Click on a module to view its properties. A window with all status values displays.
2. To open the datasheet for the module, click on the link next to Name.
3. To change individual parameters, click Parameters.
