5.27 Analog Output Module EP-4264

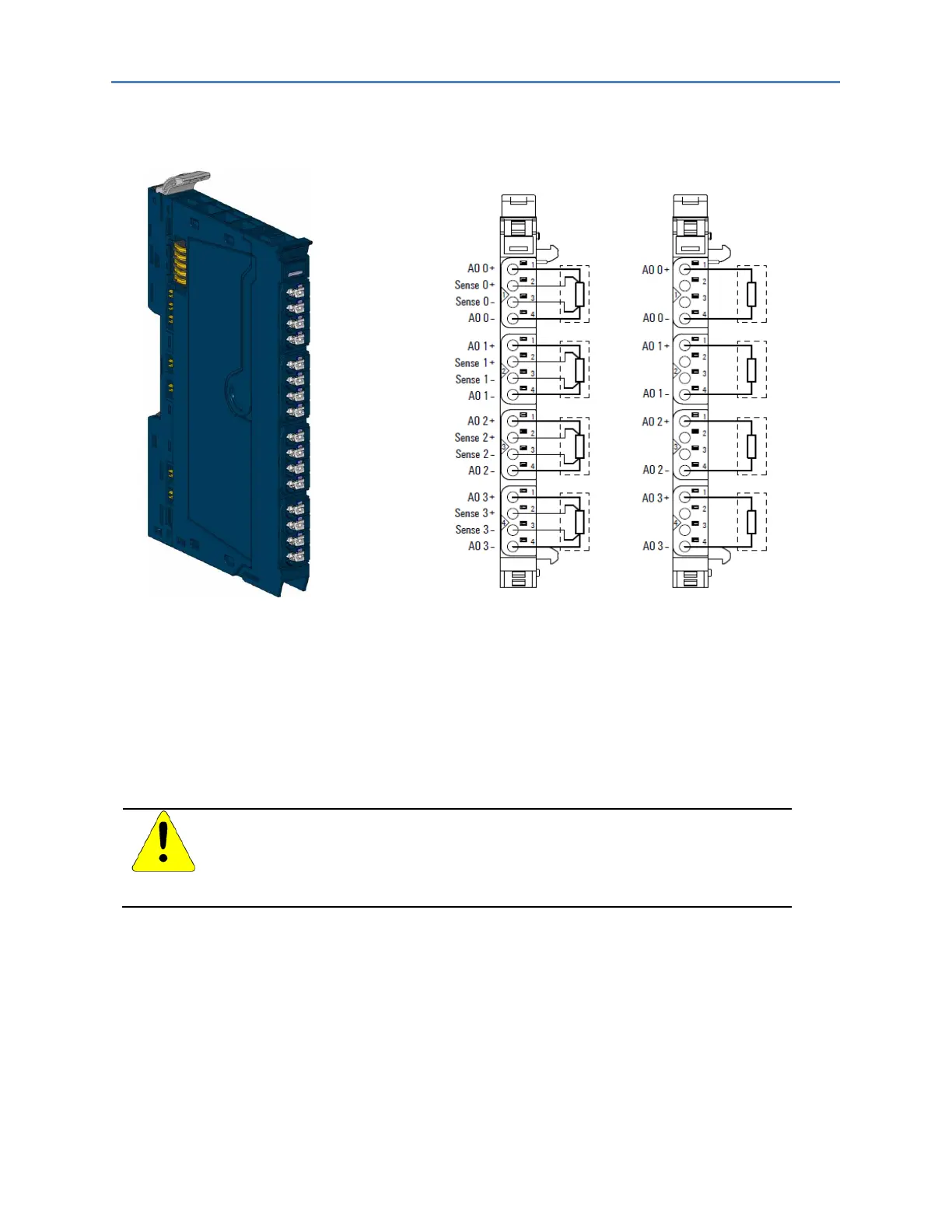

Analog Output Module EP-4264 Connection Diagram EP-4264
The analog output module EP-4264 can control up to four analog actuators with ±10 V, ±5 V, 0-10 V,
0-5 V, 2-10 V, 1-5 V, 0-20 mA or 4-20 mA. The resolution is 16 bit per channel. An output can be
connected to each connector, the internal switching is carried out automatically. The output range is
defined using parameterization. A status LED is assigned to each channel. The outputs are supplied
with power from the output current path (I
OUT
).
The module provides individual channel diagnosis with channel related error messages.
Caution
The outputs as well as the sense-lines of the AO modules must not be used
as power outputs.
