4. Install the new Super Capacitor card (Cat. No.: EPSACC001) as shown below check if the
mounting holes are aligned properly before tightening both the M2.5 screws
(Recommended Torque= 3 in/lb) and check if the card was installed properly by verifying
the mating connectors.

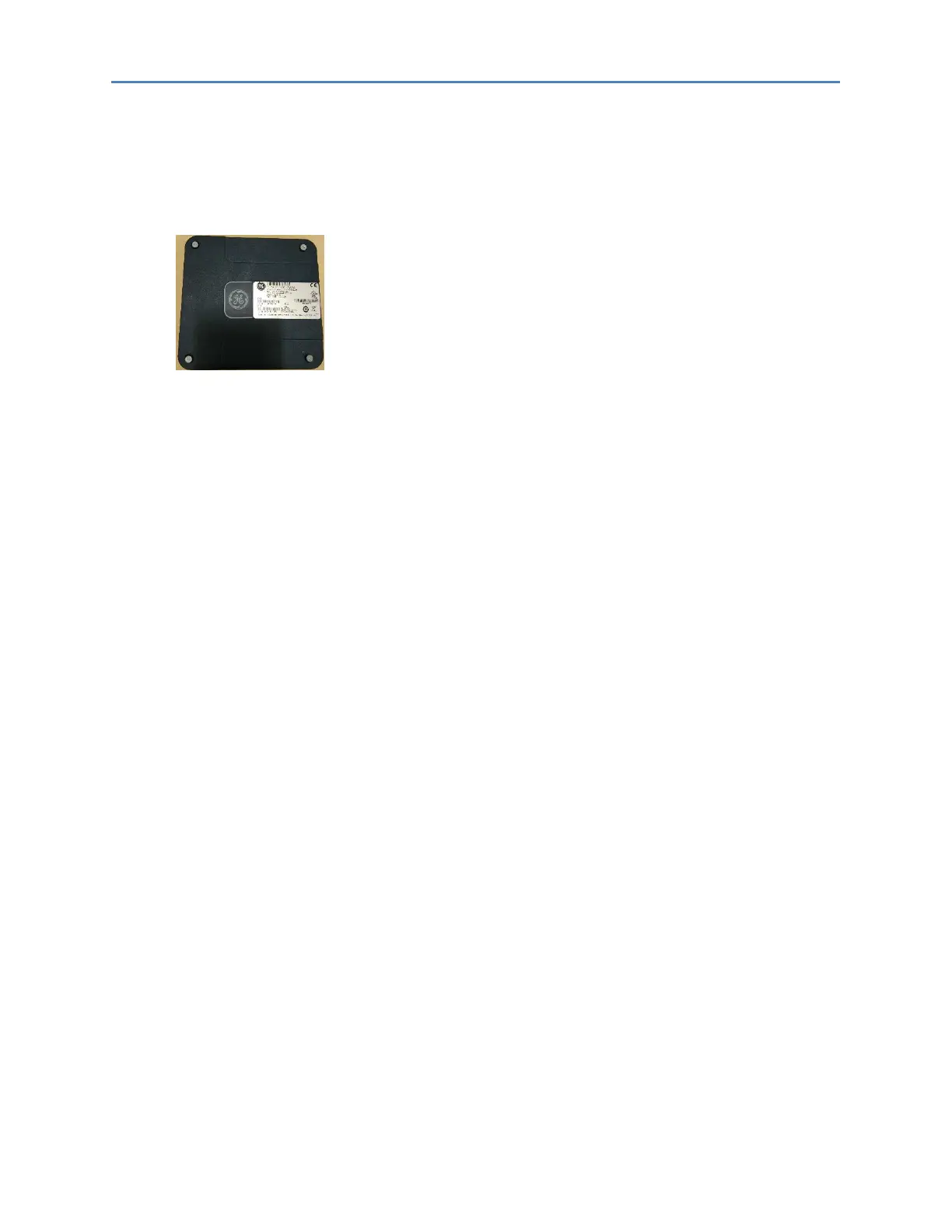

5. Mount the side panel cover and tighten all the M3 Screws (Recommended Torque = 5 in/lb)
as shown below. Now the unit is ready for use.
14.4 Replacement of RTC Battery
The EPSCPE100 module is shipped with a battery pre-installed. The battery holder (BT1) is
located near the supercap daughter card, and can be replaced by opening the top cover.
➢ To replace the battery
1. Power OFF the MFA Module.
2. Wait for 1 minute.
3. Open the top cover by loosening the four screws on the edges.
4. Use a small flat-head screw driver to gently pry out the old battery.
5. Insert the new battery.
