GFK-2958E RSTi-EP User Manual 293
5.30 Power-feed Module for Input Current Path EP-7631

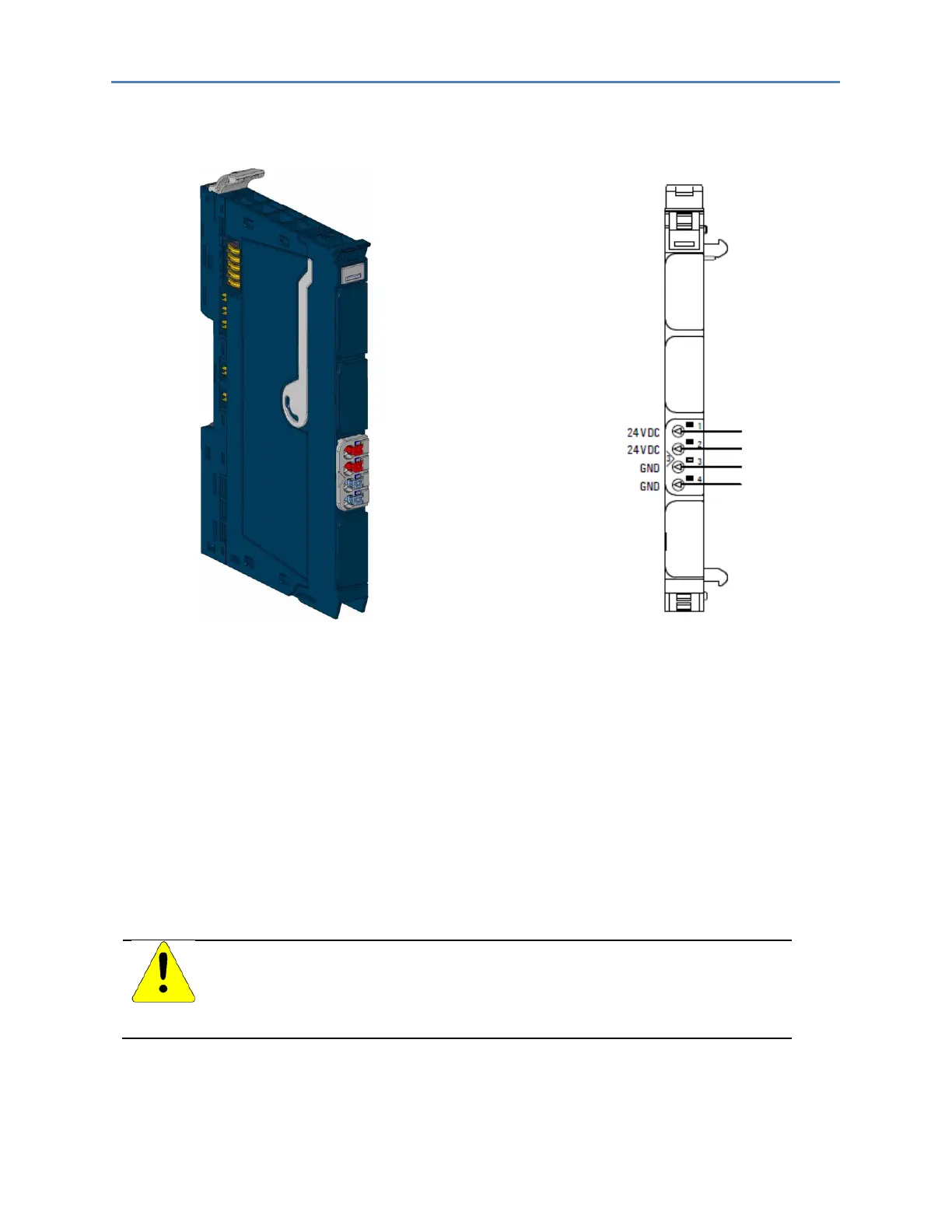

Power-feed Module for Input Current Path EP-7631 Connection Diagram EP-7631
Power-feed modules are used to refresh the current paths and isolate the power supply. The RSTi-EP
station‘s main power supply is always fed in via the network adapter. A power-feed module EP-7631
must be connected if the current demand of the series of input modules is too large.
The maximum feed-in current in the input current path via the 4-pole connector is 10 A. Details
required to calculate current demand and power supply refer to the section, Current Demand and
Power Supply. Power-feed modules are passive modules without fieldbus communication, therefore
they are not considered during configuration.
Note: A maximum of three passive modules (powerfeed module, potential distribution module,
empty slot module) may be installed in succession, however the next module to be installed
must be an active module.
In the case of a maximum power supply of >8 A and a maximum
temperature of > +55°C (131 °F), all four contacts must be connected with
1.5 mm² wiring.
