GFK-2958E RSTi-EP User Manual 62
4.2 PROFINET IRT Network Adapter EPXPNS001
The EPXPNS001 PROFINET Scanner is a PROFINET I/O device certified by the PROFINET user
organization. The network adapter is the head module for the RSTi-EP system bus, to which up to 64
active RSTi-EP modules can be connected. The PROFINET network adapter has two Ethernet ports,
and an integrated switch.
The PROFINET Scanner can be accessed with a system-independent web server application via the
USB service interface or the Ethernet. Thus, all information, such as diagnostics, status values and
parameters, can be read and all connected modules can be simulated or forced.
The station's main power supply is integrated in the PROFINET Scanner. Power is supplied via two 4-
pole connectors, separated into the input and output current paths.

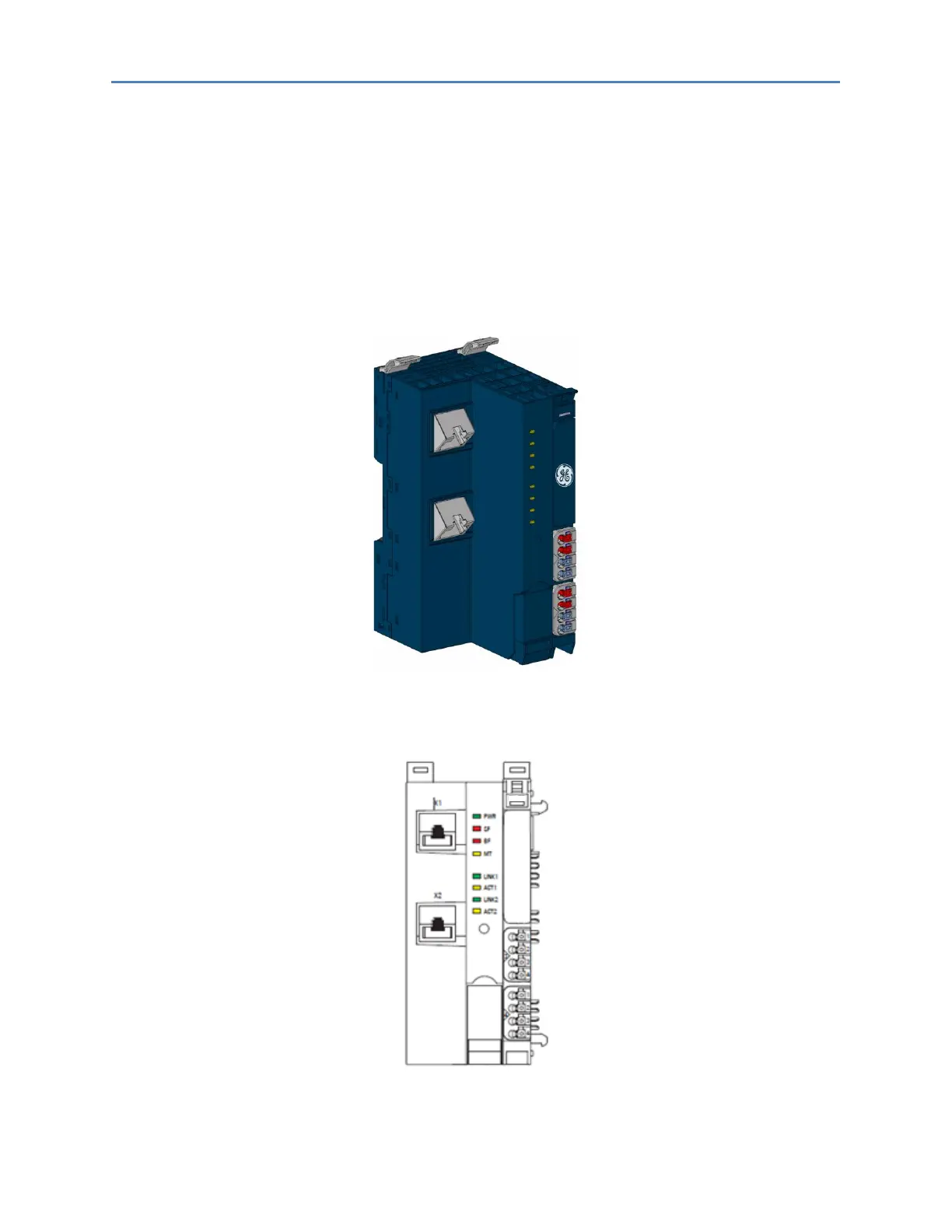

Network Adapter EPXPNS001
4.2.1 LEDs
LED Status Indicators EPXPNS001
