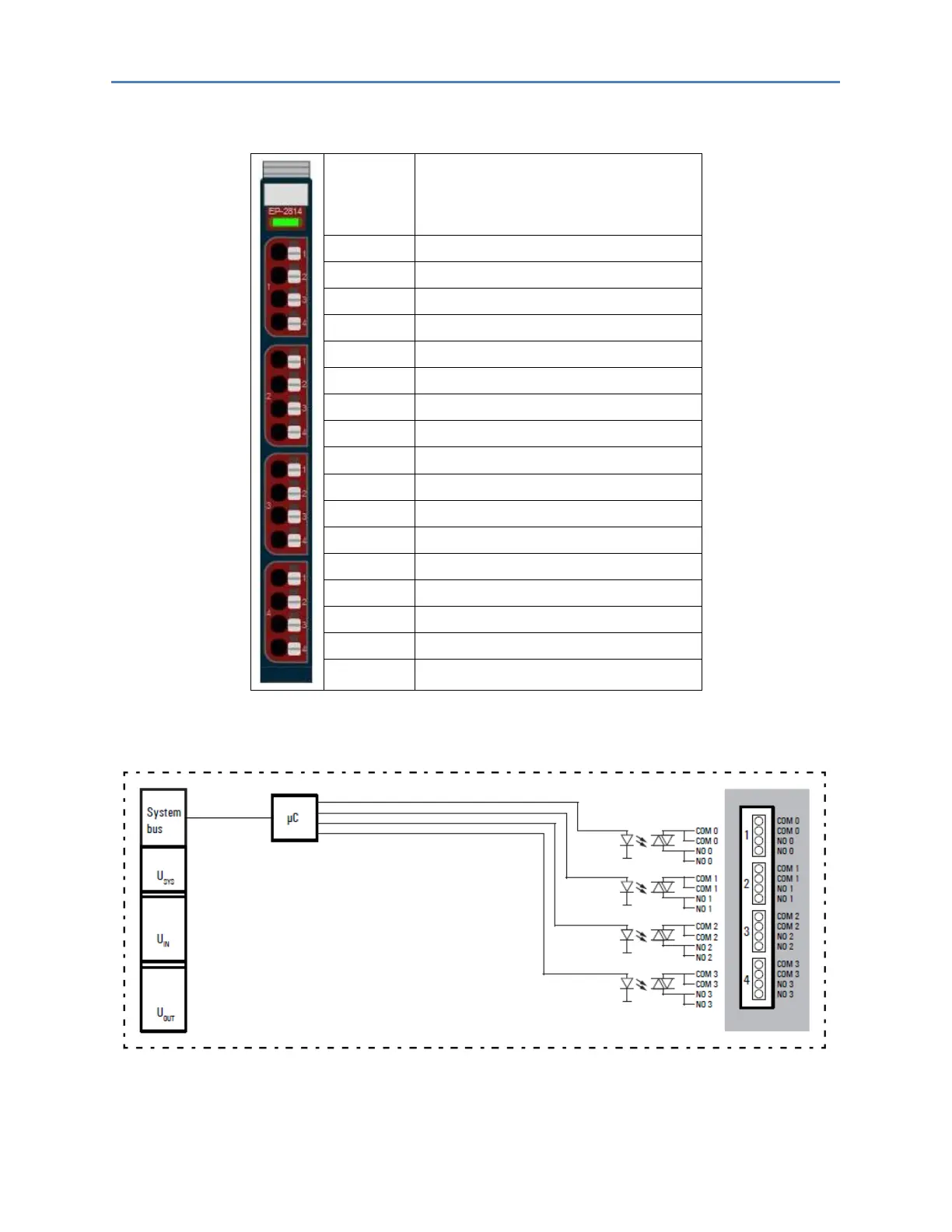

LED Indicators EP-2814
Module
Status
Green: Communication over the system bus
Red: Module System Fault or Diagnostic Fault
1.1
Yellow: Output 0 active
1.2
--
1.3
--
1.4
--
2.1
Yellow: Output 4 active
2.2
--
2.3
--
2.4
--
3.1
Yellow: Output 8 active
3.2
--
3.3
--
3.4
--
4.1
Yellow: Output 12 active
4.2
--
4.3
--
4.4
--
For error messages refer to the chapter, LED Indicators and Troubleshooting.
EP2814
Block Diagram EP-2814
