Chapter 5 Detailed Descriptions of I/O Modules
GFK-2958E RSTi-EP User Manual 224

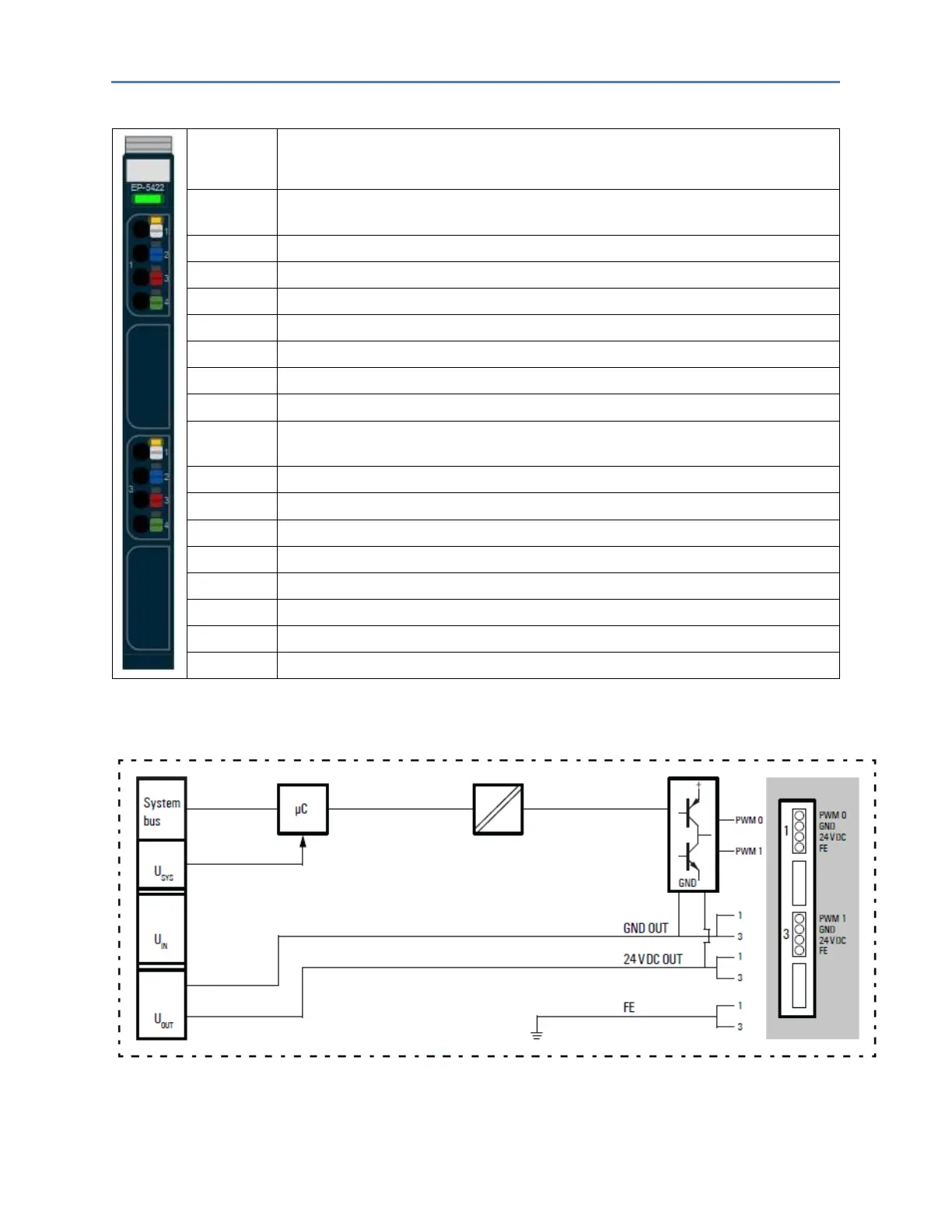

LED Indicators EP-5422
Module
Status
Green: Communication over the system bus
Red: Module System Fault or Diagnostic Fault
1.1
Yellow: PWM output 0 – 100%, P-switching
Yellow flashing at 2 Hz: PWM output 0 is > 0 and < 100%, PN-switching or P-switching
1.2
--
1.3
--
1.4
--
2.1
--
2.2
--
2.3
--
2.4
--
3.1
Yellow: PWM output 1 – 100%, P-switching
Yellow flashing at 2 Hz: PWM output 0 is > 0 and < 100%, PN-switching or P-switching
3.2
--
3.3
--
3.4
--
4.1
--
4.2
--
4.3
--
4.4
--
For error messages refer to the chapter, LED Indicators and Troubleshooting.
EP-5422
Block Diagram EP-5422
